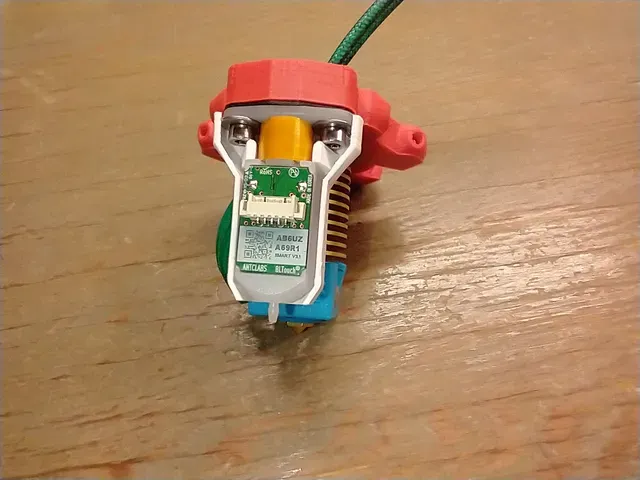

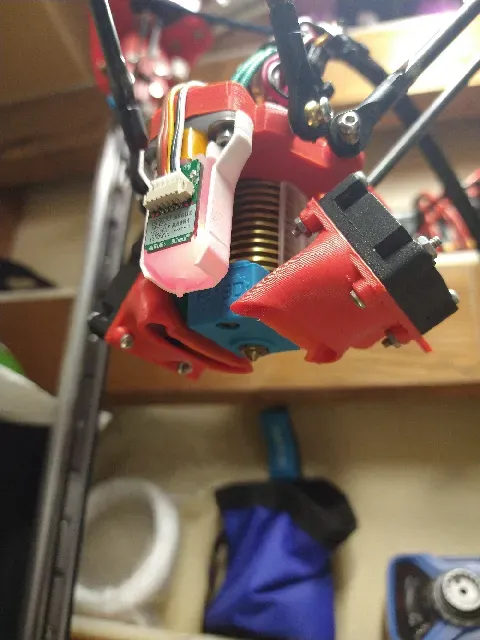

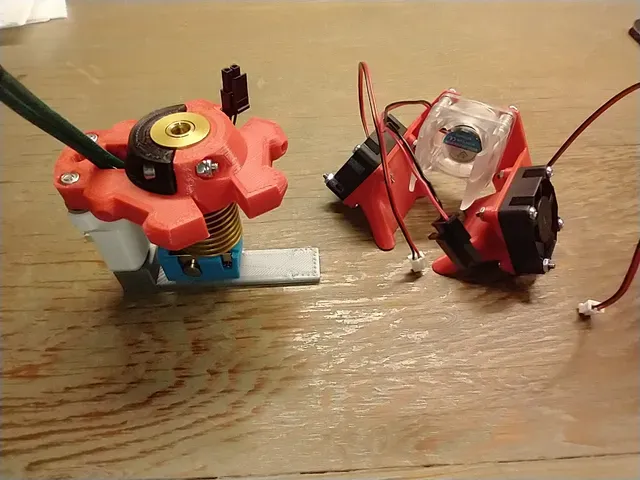

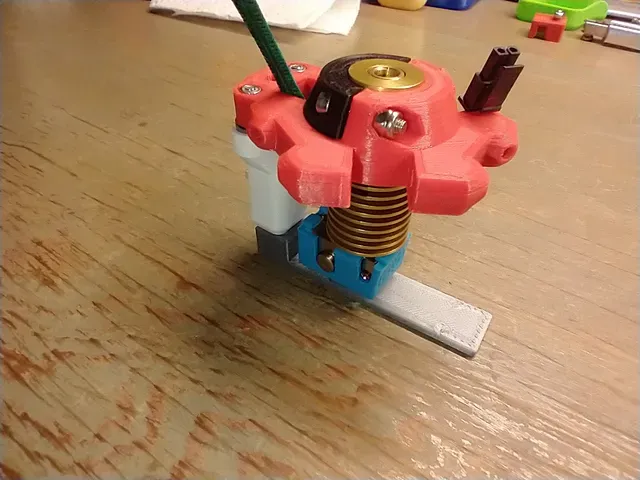

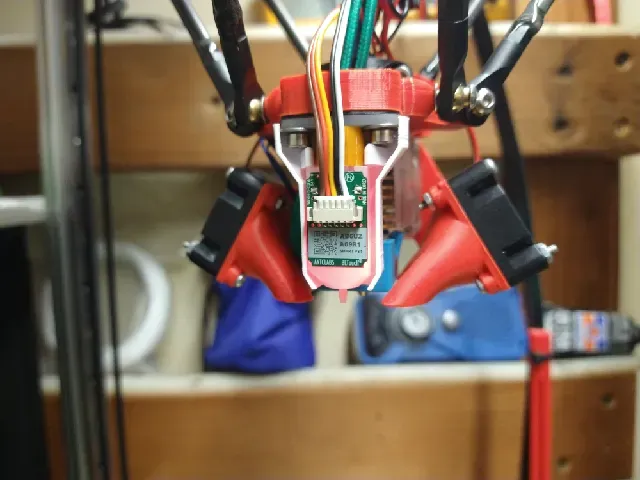

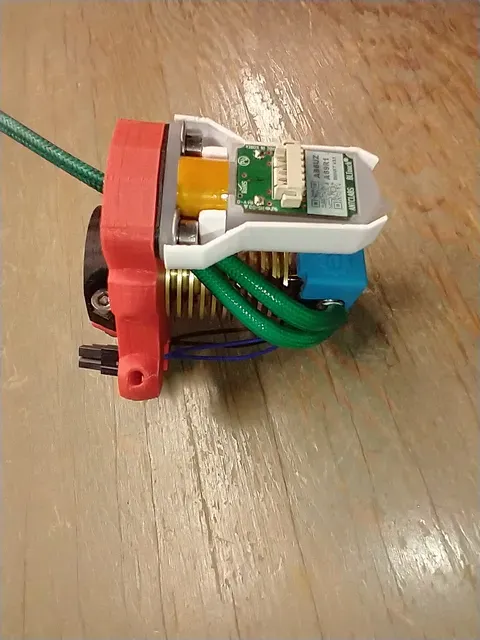

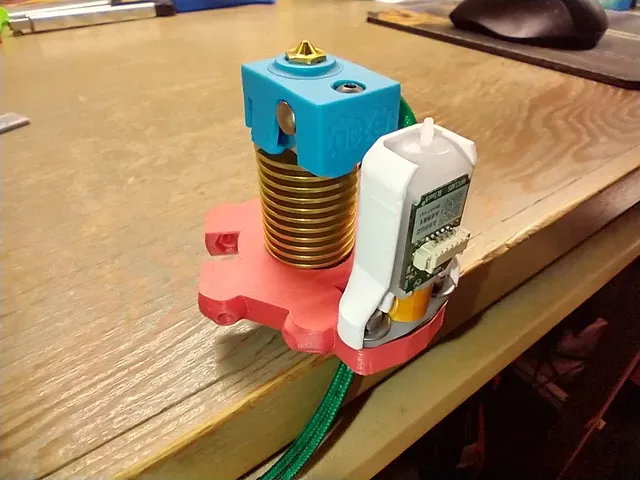

Kossel Mini E3D V6 Effector with BlTouch Mount

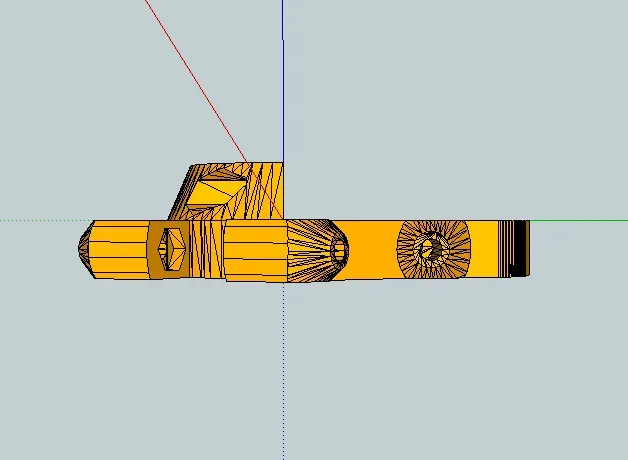

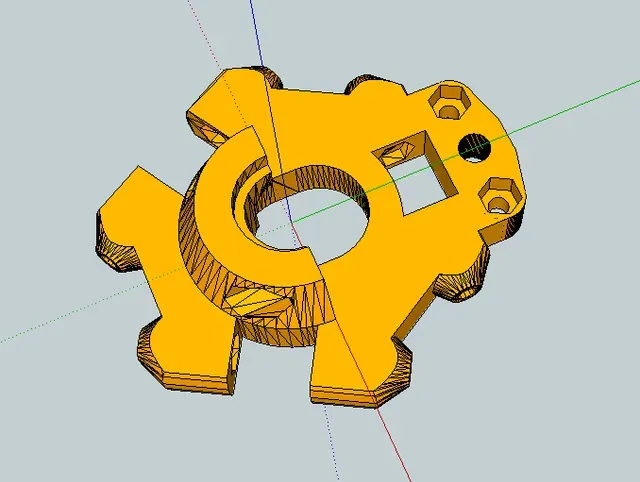

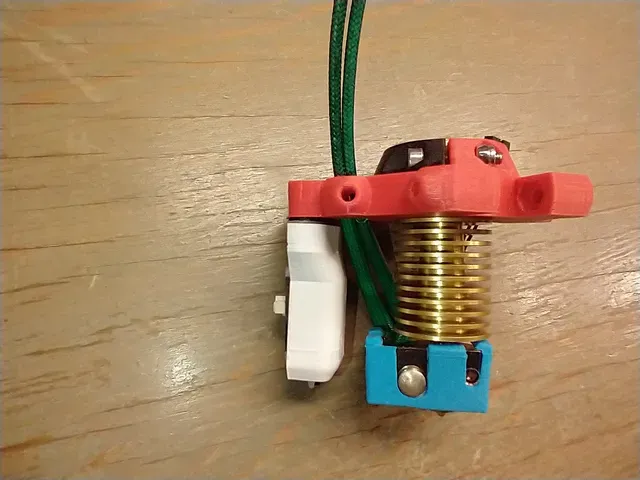

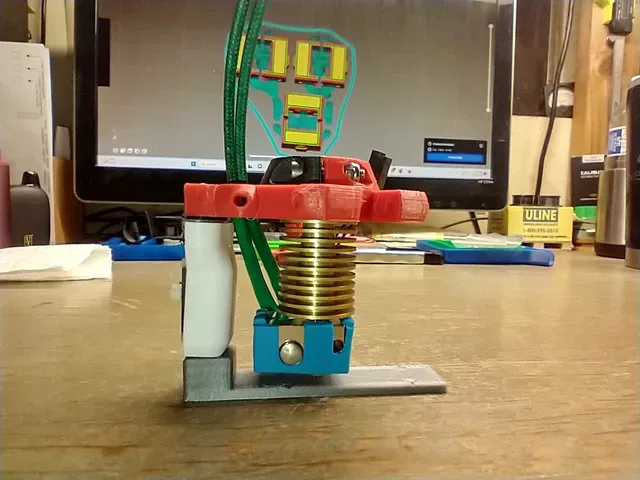

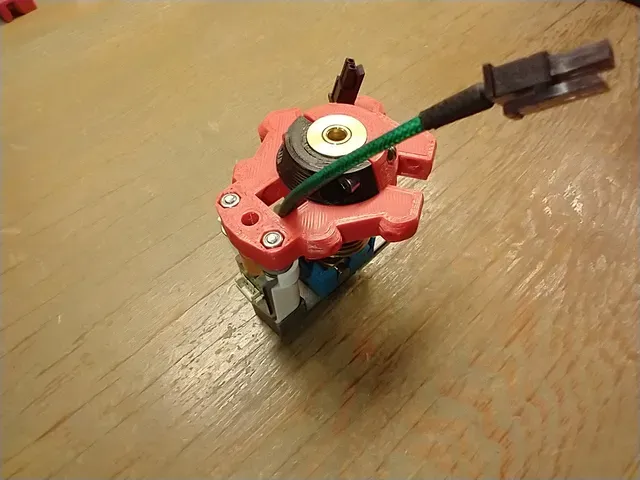

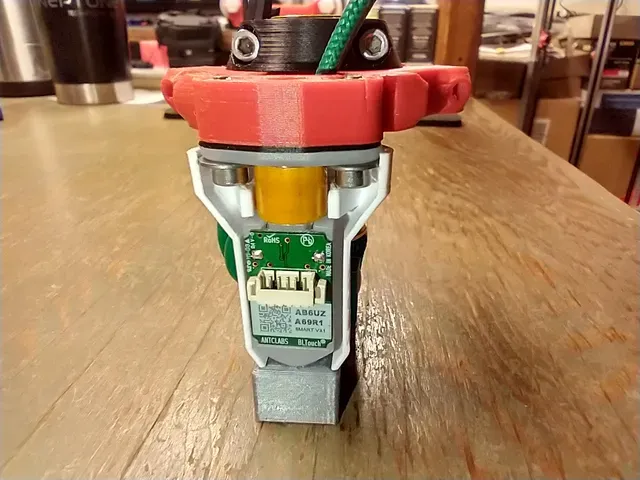

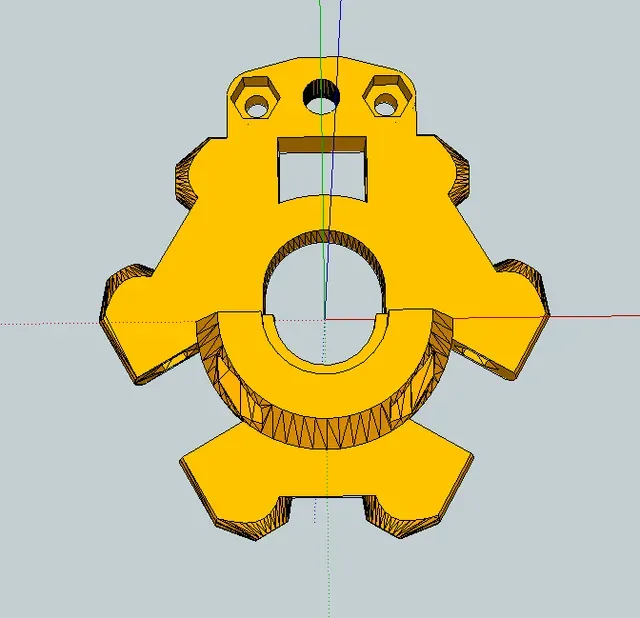

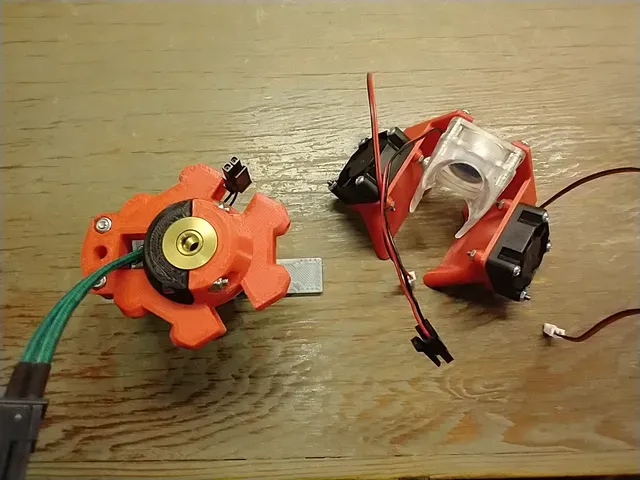

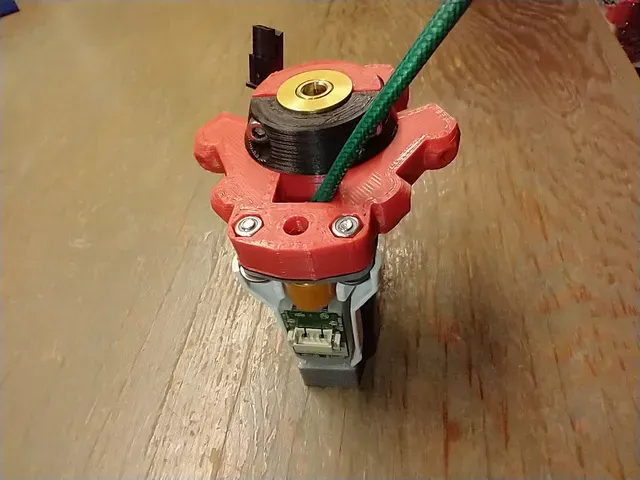

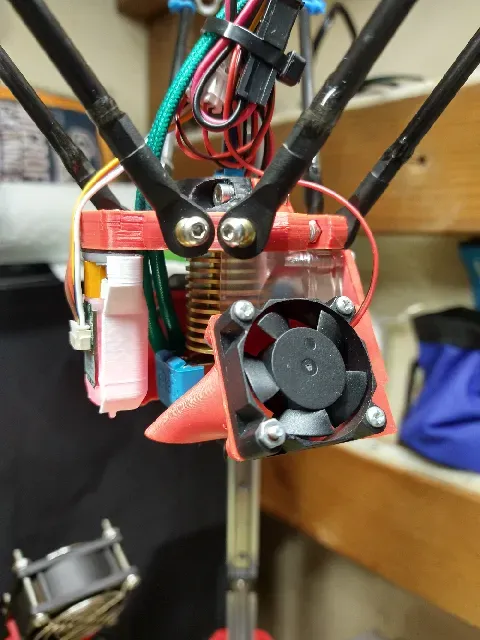

A modified Kossel Mini effector for E3D-v6 hotend with 40mm spacing between Traxxas rod ends to mount a BlTouch Z-probe. You need to print the clamp and the appropriate BlTouch spacer to get the correct distance above the nozzle.

I modified espinete's BLTOUCH 3D WASHER to fit my FolgerTech Delta printer; the 1.0 mm spacer worked for my printer.

I have had success printing the effector using Atomic PLA .

Initially I modified the clamp to easily and quickly add a BlTouch, which can be found HERE : https://www.printables.com/model/473095-quick-easy-bltouch-mount-for-a-kossel-mini-e3d-v6-

I ended up going with this since I think it will be more rigid.
