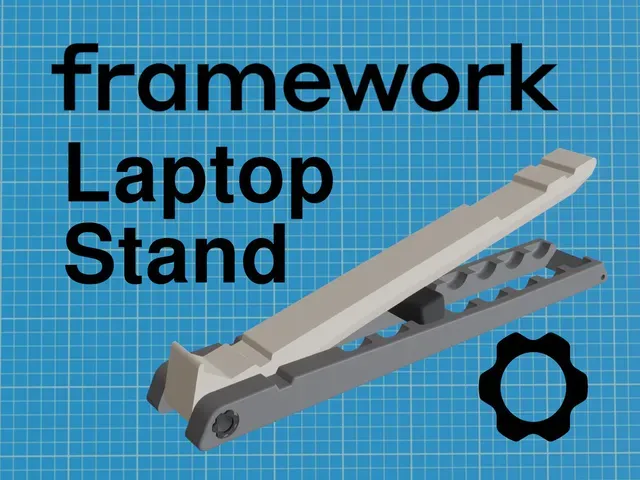

Adjustable Framework Laptop Stand

Laptop stand for the Framework laptop . Has notches that align perfectly with the feet for extra retention and a cut-out ensuring that none of the fan vent area is blocked. Feels quite ridged and seems to help with cooling a bit.

I designed this for personal use and it suits my purposes well. It features an adjustable height and folds very thin to store in a backpack side pocket.

You will need to print two sets for practical use.

An additional taller prop file is provided if you want more height.

Feel free to remix. Additions like a built in way to lock together and hold prop pieces for transport would be nice. I may add a connector piece for two stands as well.

Designed In Freecad, rendered in Blender, Edited in Gimp, on my Framework laptop running Fedora BTW.

Edit 1/13/22: Added Freecad design file.

Print Settings

Printer Brand:

Creality

Printer: Ender 3

Rafts:

No

Supports: Doesn't Matter

Resolution:

.2 mm

Infill: 40%

Filament: Polymaker PLA

Notes:

Only the left and right arm bars require support for the pivot logo inset. Every other part can be printed without.

You will need to rotate many parts diagonally to fit on most printbeds. A thin brim is recommended for bed adhesion. Post-Printing

One empty standard Bic "Roundstick" pen is required for assembly (could probably use M4 and M1 bolts instead).

To assemble:

- Remove support from Left and Right Arm hinge.

- Cut two pieces of the pen body tube to length for the hinge

- Cut two pieces of the pen ink tube (empty!) for the rear spacer. Press fit together with superglue

- Superglue the Hinge Logos on.

Category: Office
