E-Paper display stand ESP32

Площадка: Printables
Цена: Бесплатно
Лицензия: CC0; Общественное достояние: можно печатать, изменять и продавать без указания автора.
Форматы: STLBLEND

266 Лайки
393 Загрузки
0 Напечатали
2 Комментарии
8 971 Просмотры

Автор:Lilifee

Опубликована 27.11.2020

Скачать на

Printables

Описание

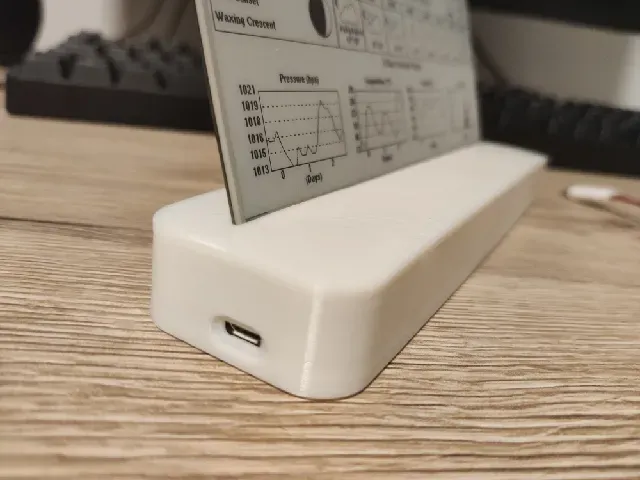

Stand for a 7.5 inch waveshare E-Paper display.

I use it to display the power consumption of my home and the air quality in the living room. Feel free to adapt the model to your needs. It doesn't fit 100% but I'm still happy with the result.

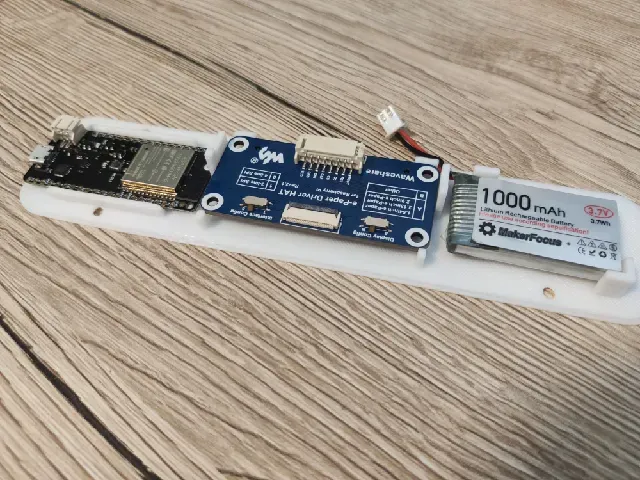

Besides the waveshare e-paper HAT, there is space for an ESP32 LOLIN32 and a 1000 mAh lipo battery which should last up to a few months in deep sleep.

There is a really good example which inspired me at the beginning:

https://github.com/G6EJD/ESP32-e-Paper-Weather-Display

If you're interested in my project, I can share it as well but I would need to document it better. It contains multiple ESP32 projects but it's not finished yet. https://github.com/Lillifee/espbs
