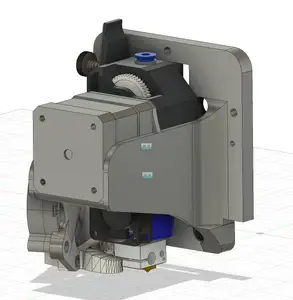

SOVOL SV01 BondTech BMG with E3D V6 4010 Cooler and 5015 Parts Cooler with EZABL Mini

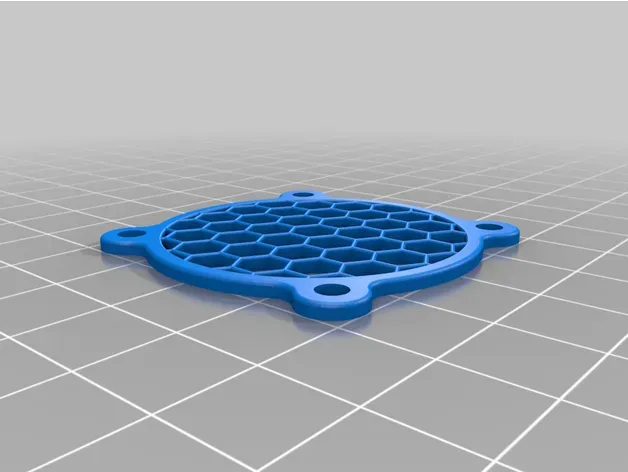

Just my design of a carl5765 Sovol SV01 Bmg hotend cooler and part fan. I added EZABL Mini, Fan Guard for the 4010/4020 and 5015.

Issues that has been resolved from the Original Version.

Parts fan cooler able to go another 2mm lower if needed to direct air straight to the nozzle.

E3D Cooler has extra cutout and notches for more air pathway and wire path as well.

All mount screw holes are in the right placement to mount to the carriage.

Print Settings

Printer:

SOVOL SV01

Rafts: No

Supports:

Yes

Resolution: 0.15

Infill:

25%

Filament:

Zyltech PETG Black

Notes:

The Parts Cooler and V6 Heat Sink will need some support to print correctly.

Print Speed of 20mm/s.
