Garmin Varia 315 Radar bicycle mount

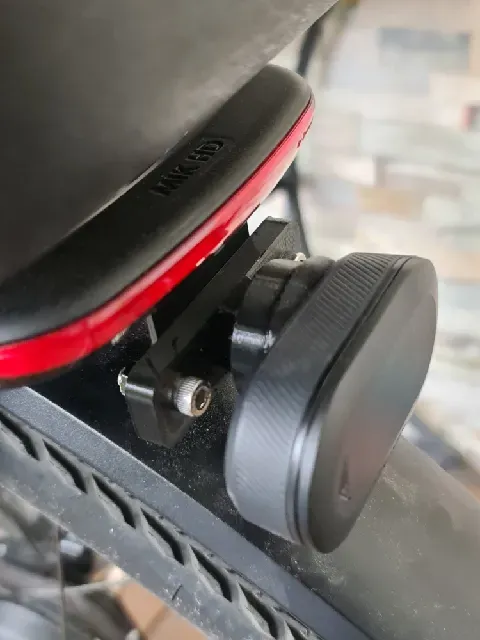

For my Varia Radar 315 I had to design a new base-mount that doesn't block the view to the taillight.

I discovered from Matthias the wahoo mount which works perfectly with the locking mechanism of the Garmin Varia 315.

You need:

- 1 x the bike computer mount - https://www.printables.com/model/330307-bike-computer-mount-for-wahoo-devices - 1 x My base mount hozontal or vertical base mount - To screw everything together I use: - 2 x M3*12mm screws (for the Wahoo/Varia adapter from Matthias ) - 2 x M3 Nuts - 2x M5*16mm screws (for the hold on the bicycle) - 2x M5 Nuts I printed both models with PETG+ with cura 5.2.2 with full support everywhere.

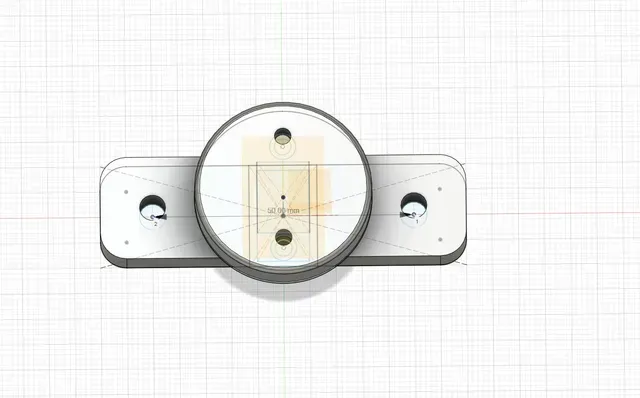

NOTE: There are two versions of my base mount, one for vertical alignment (horizontal holes) and the other for horizontal alignment (vertical holes) of the radar.
