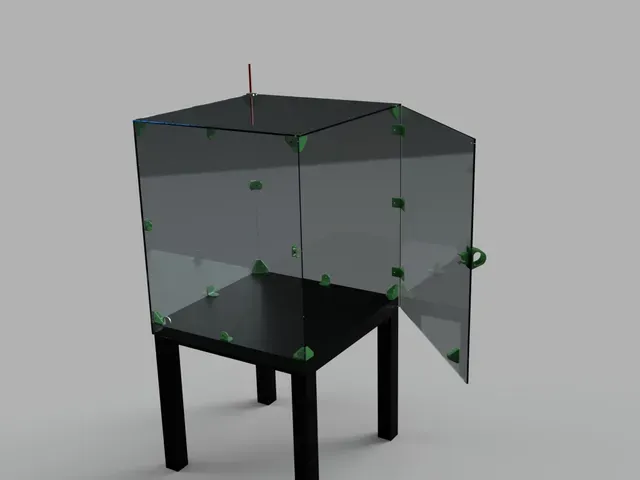

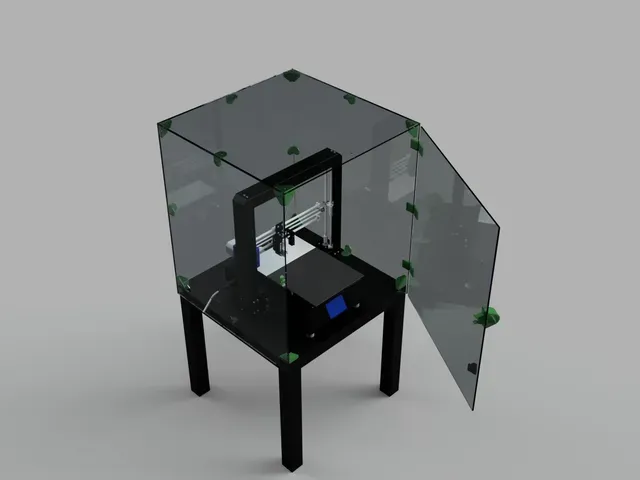

box jellyfish 3D Printer enclosure IKEA LACK table

Add Nov 2021

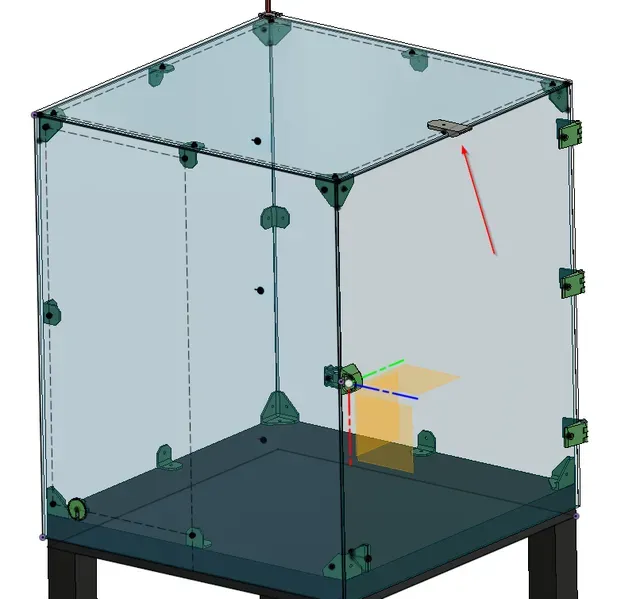

- slider to lift the roof plate when closing the door

Fits perfect to an IKEA LACK table with 55x55cm Or you us a 550x550mm wood plate.

no disturbing table feet's you have full view access to your printer.

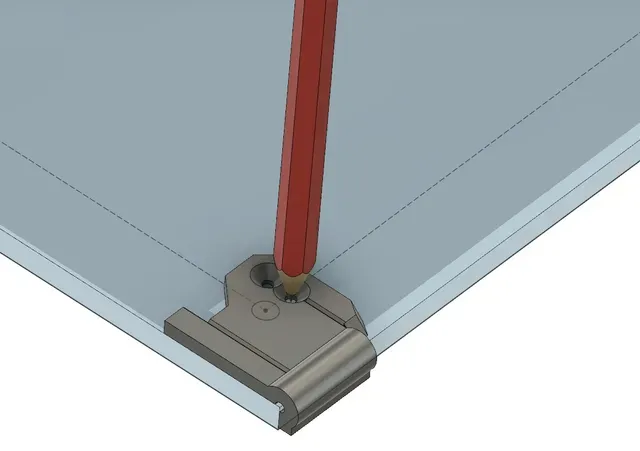

It is designed for easy PC sheet cutting. Only rectangle sheets 4x 555x650mm 1x 560x560mm sheet

NO aluminium profiles needed

For the walls you can use shorter sheets than 650mm depending on your printer. The drawings fit all height dimensions.

all drawings in pdf

Partlist:

- 45pcs screw M4x15 (best if you use big flat head like ISO 7380-2) - 45pcs washer M4 - 45pcs nut M4 - 7pcs 4mm wood screws (to fix to lack table Print instructions

its possible to print all parts in once on a Prusa MK3s or Anycubic i3 Mega.
