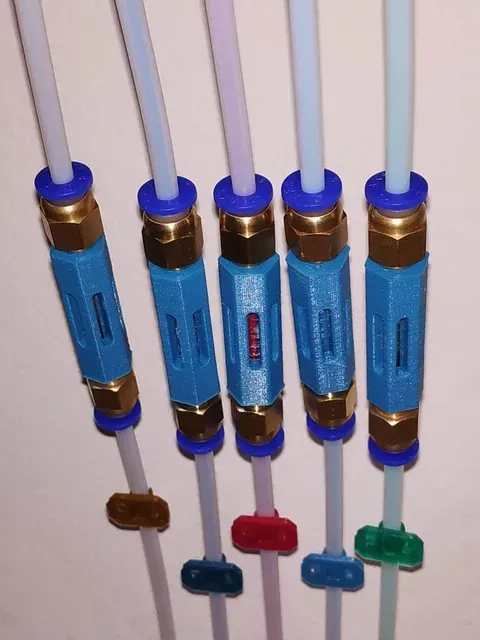

MMU2 PTFE PC4M6 Coupler

For ease of access to the filament while loaded in the PTFE tubes I really liked the 'Prusa MMU2 PTFE Holder M10 Passthrough Adapter' ( https://www.thingiverse.com/thing:3233579 ), but in my own setup I just cannot reach the back of the MMU2S unti very easily. So I decided to move the acces point for the filament further down away from the unit and use some PC4-M6 tube fittings.

The original coupler works great already, but I needed it to be somewhat bigger, and made some windows in it so I can actually see the filament inside.Since this coupler sits at a point where the filament did already pass when loaded, it is not neccessary to insert a piece of PTFE tube into the coupler itself.

The window do also allow to put an occasional drop of oil on the filament.

EDIT

I don't know why the preview obviously shows a render error. The thingiview - View does not implicate that there is a problem with the model, and slicing with slic3r PE didnt reveal any problems either. Please let me know if you encounter problems slicing this with a different slicer.

Print Settings

Printer Brand:

Prusa

Printer: MMU2s

Rafts:

No

Supports: No

Resolution:

0,2

Infill: 100%

Filament: Das Filament PLA tom's infinity blue

Category: 3D Printer Accessories
