Dry Box for MMU2S Supplied Spool Trays

I had my first experience with bad prints due to moist filament since I installed the MMU2S kit. Because it is such a pain to thread the five spools, I was leaving them out. With a single spool I always put the filament back in the ziplock bag and a silica gel packet.

I ended up getting a SUNLU filament dryer ( https://amzn.to/39TbOQc ), but buying five would be expensive!

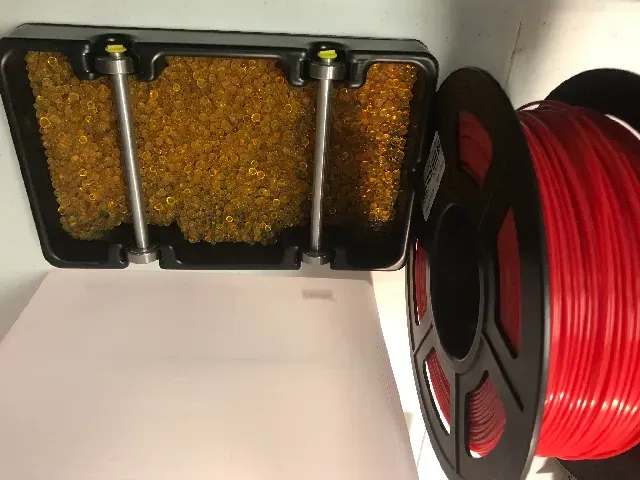

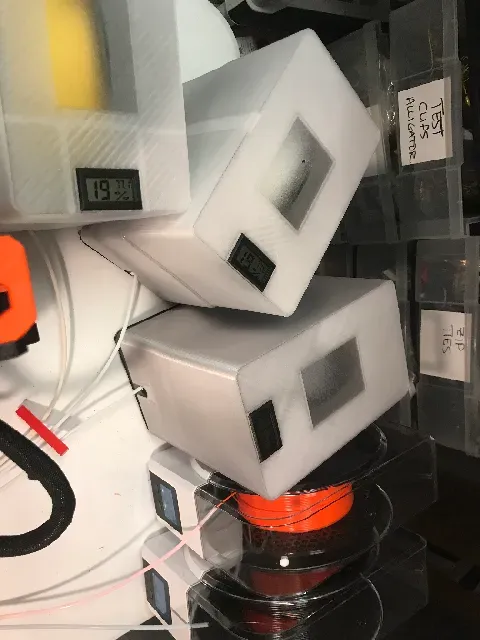

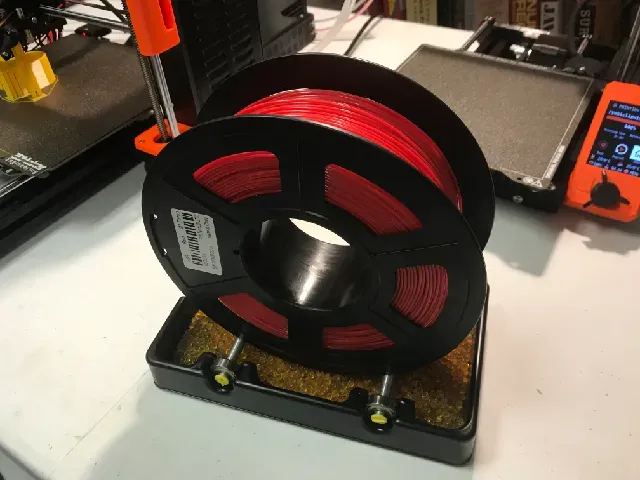

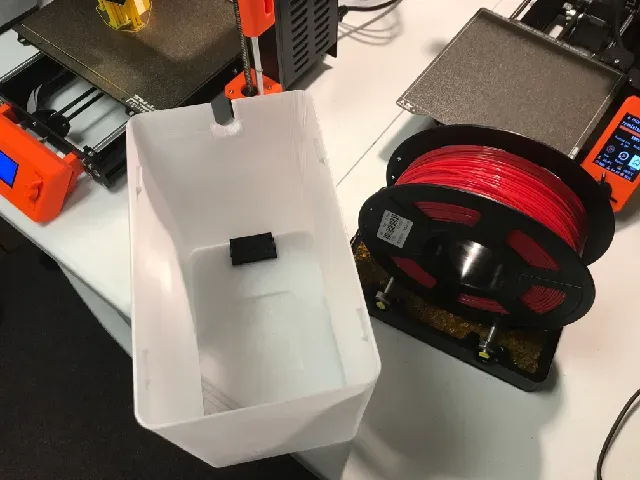

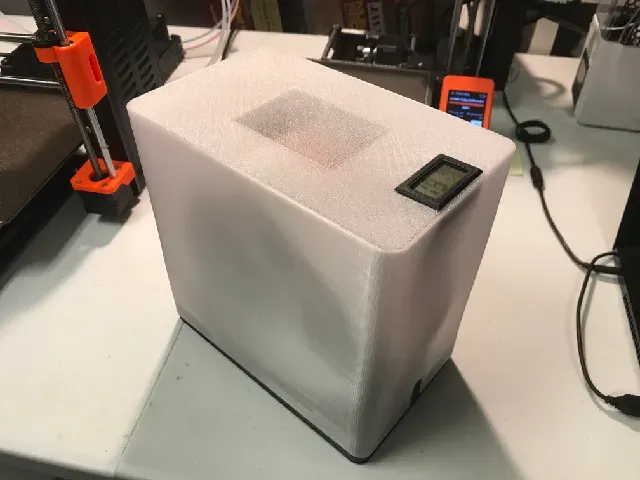

I figured I would just fill the trays with Silica Gel beads and 3D print a cover using transparent PETG. The design had to work around the MK3S print volume. I installed a temperature / humidity sensor to make sure everything is OK.

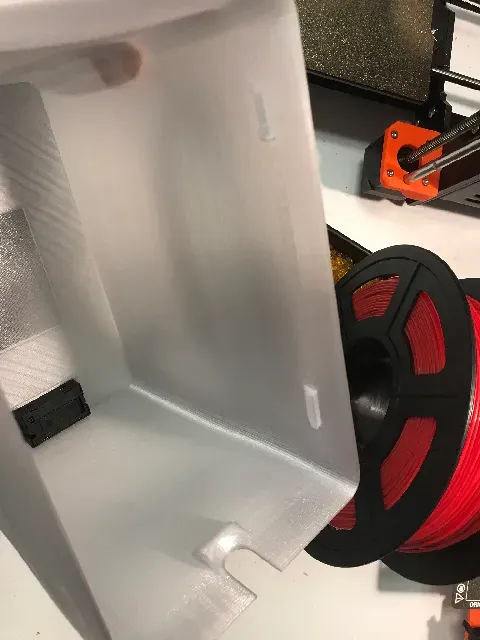

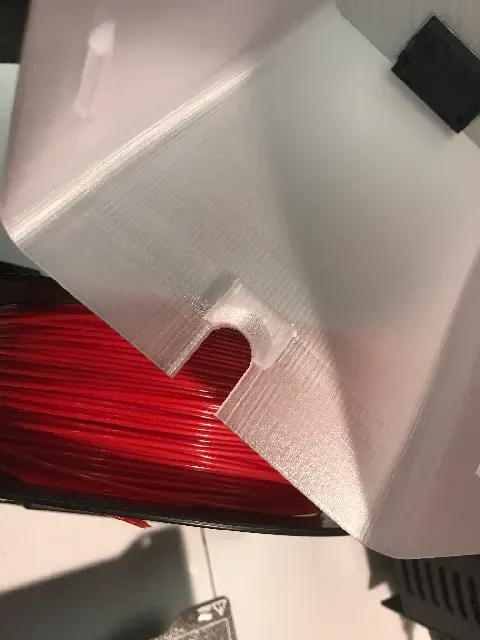

I tried single and double wall boxes, but they failed. I ended up 4 filament wide walls. It's a long print, but I'm pretty happy how they are working.

items used:

- SUNLU Dryer box ( https://amzn.to/39TbOQc ) - Overture Clear PETG filament ( https://amzn.to/39UaQDl ) - Temperature / Humidity Sensor ( https://amzn.to/37OpKIy ) - Rechargable Silica Gel Beads ( https://amzn.to/39QYMTm ) - Ziplock bags ( https://amzn.to/37Keehm ) As an Amazon Associate I earn from qualifying purchases.

Youtube video at: https://youtu.be/QgW66pFrCdQ
