Garmin Fenix 5 Plus, Fenix 5s, Fenix 6 and Fenix 6s quick and easy Bike Mount

I couldn't find an easy and quick Bike Mount for the Garmine Fenix 5 Plus like the Quick Release Mount for the Forerunner 935. So I deceided to design one.

I have 8 designs:

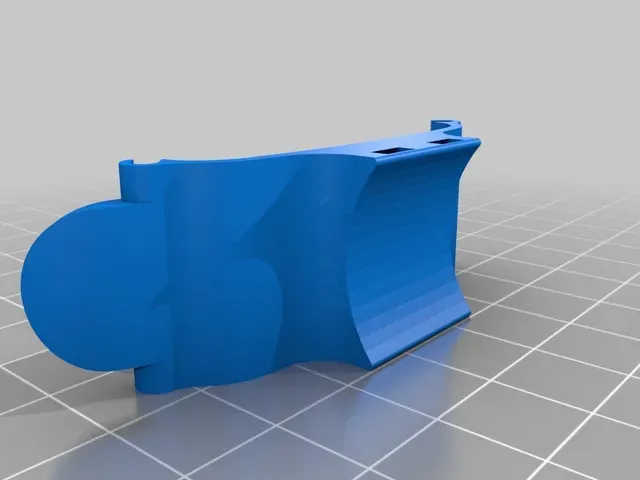

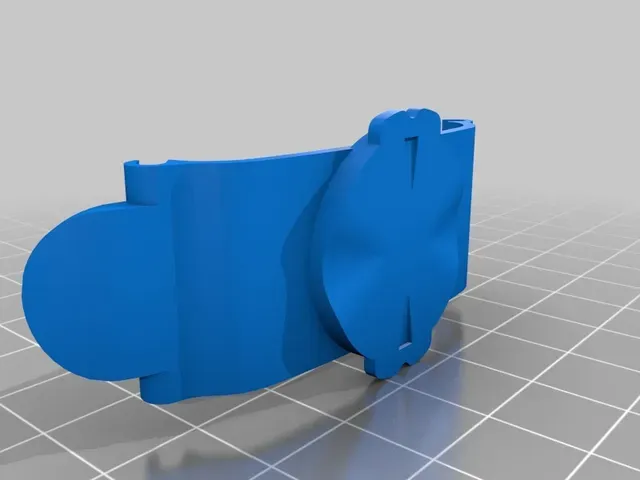

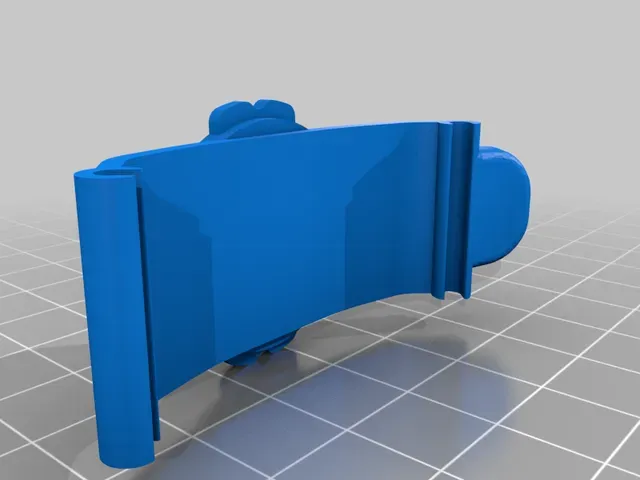

- the first for F5P and the Quick Release Mount plate from the FR935 ("GarminF5PMount-QRM.stl")

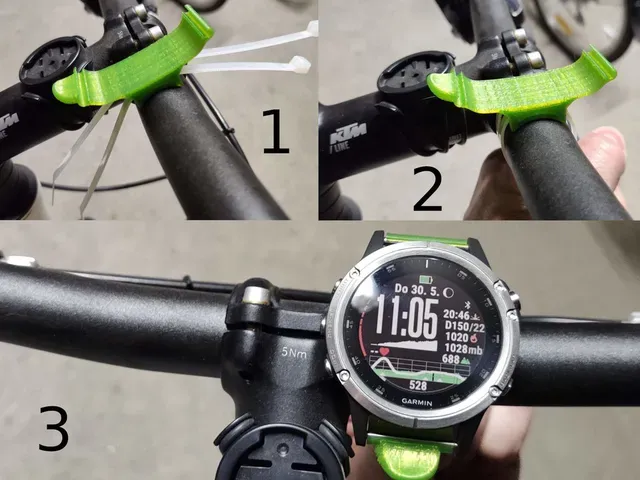

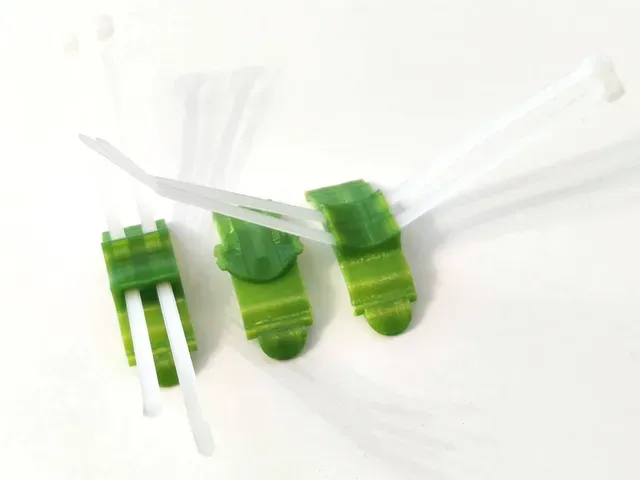

- the second for mounting the F5P on the handlebar (diameter ~25mm "GarminF5PMount_Handlebar.stl" with 5x1,5mm holes for cable ties)

- the third for mounting the F5P on the handlebar stem (diameter ~32mm "GarminF5PMount-HandlebarStem.stl" with 5x1,5mm holes for cable ties)

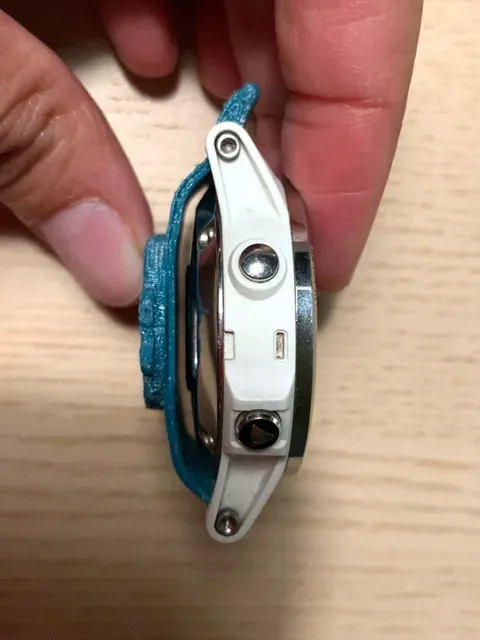

- the fourth for the F5s and the Quick Release Mount ("GarminFenix5s_QRM.stl")

- the fifth for mounting the F5s on the handlebar (diameter ~25mm "GarminFenix5s_Handlebar.stl" with 5x1,5mm holes for cable ties)

- the sixth for mounting the F6 on the Quick Release Mount

("Garmin_Fenix_6_QRM.stl")

- the seventh for the F6s and the Quick Release Mount ("GarminFenix6s_QRM_combined_v3.stl")

- the eighth for mounting the F6s on the handlebar (diameter ~25mm "GarminFenix6s_HBM_v3.stl" with 5x1,5mm holes for cable ties)

Many thanks to Sabrina (F5s), zenrke (F6) and karstendilz (F6s) for assisting in designing the mount.

For the QRM version I used https://www.thingiverse.com/thing:1801904 thanks @txoof

I've only tested it with the Fenix 5 Plus but it should work for the Fenix 5 as well :)

update 200912: added the mounts for Fenix 5s and Fenix 6

update 201124: added the mounts for Fenix 6s

update 220221: replaced the Fenix6HBM with the Fenix6QRM

Print Settings

Rafts:

No

Supports: Yes

Resolution:

0.2mm

Infill: 35%

Notes:

For strength reason it is HIGHLY RECOMMENDED to print it LAYING ON THE SIDE (like the blue thingy-picture) - otherwise you might loose/damage your watch if the bracet breaks.

4 wall lines should do.

Support is only needed for the Garmin Quick Release Mount version (the stl files with QRM in the name)

PETEG recommended but works flawlessly in PLA
