Flying Bear Ghost 6 dummy display webcam and phone
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY
- Можно печатать, изменять и использовать в коммерции — с указанием автора.
- Форматы
- STL
- 17 Лайки
- 72 Загрузки
- 0 Напечатали
- 0 Комментарии
- 1 337 Просмотры
Описание

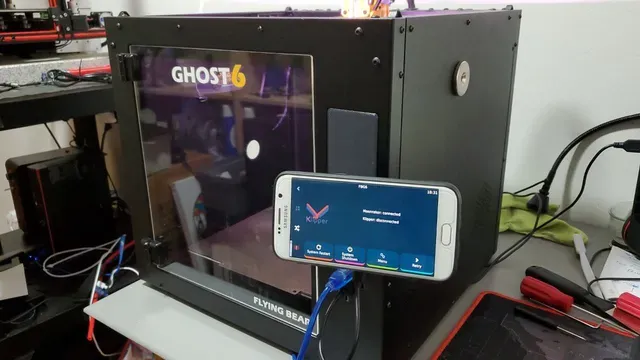

4 display models:

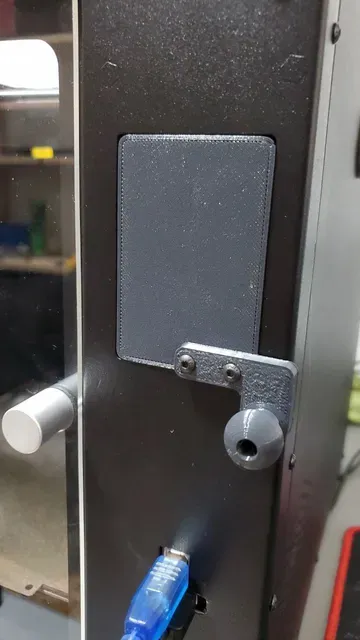

- Basic (no phone support holes, no webcam attachment) - Phone support: with 2 holes for M3 inserts (5xOD4.2mm). You need “phone_support” file with two M3x6mm screws. Phone support is designed to connect with most car phone holders (typical 16-17mm ball). I used a chinese one with magnet rim and wireless charge. - Webcam support: with gopro connection inside, you could attach any gopro style connectors, but I included “webcam_angle”, for my OV3660 webcam, and a “box” for it ("webcam_ov3660_front" and “webcam_ov3660_back”), but you could attach whatever. The gopro connections uses two M5x20mm or M6x20mm screws and two M5 or M6 nuts. - Display with both phone and webcam support. With the 2 and 3 requirements. I would prefer printing in PETG or ABS to withstand the high temperatures in the cabin, but you could use what you prefer.
0.2mm layer height is OK. Supports are only needed for display_* shapes.
