Organic Voronoi Phone Stands

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-SA
Можно печатать, изменять и продавать с указанием автора; переделки — под той же лицензией.
Форматы
3MFGCODE
  • 35 Лайки
  • 165 Загрузки
  • 0 Напечатали
  • 2 Комментарии
  • 1 381 Просмотры

Эта модель на других площадках

Автор:neoyarus

Опубликована

Описание

How to print

The 3mf files have all the support settings configured for you, so you just need to choose your filament profile.

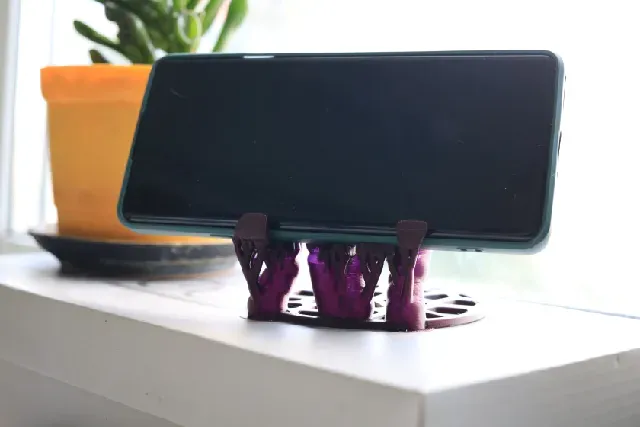

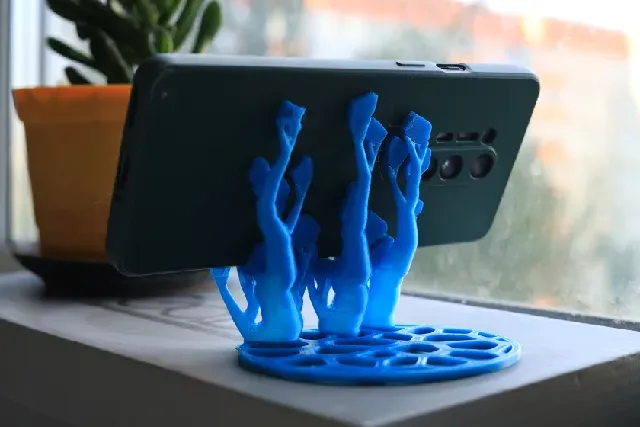

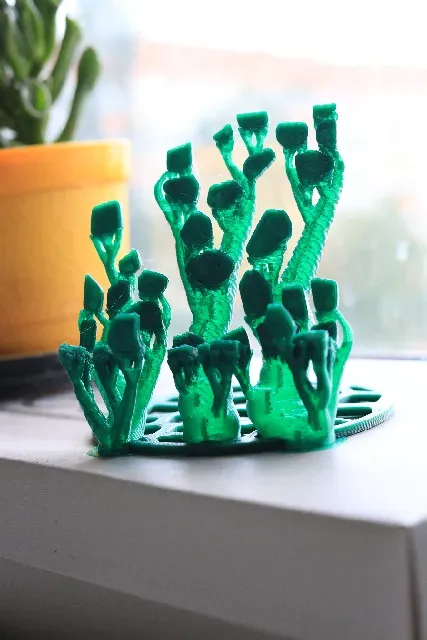

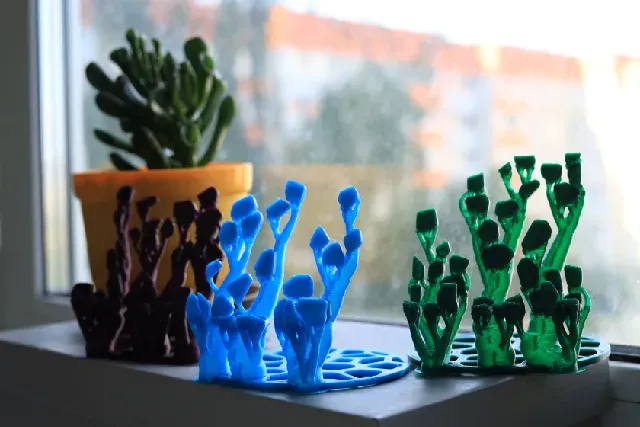

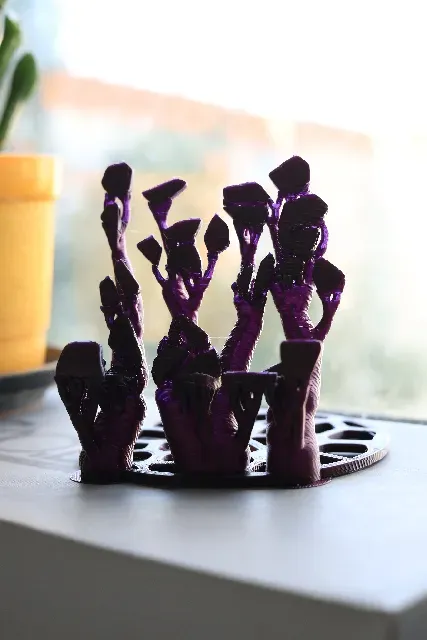

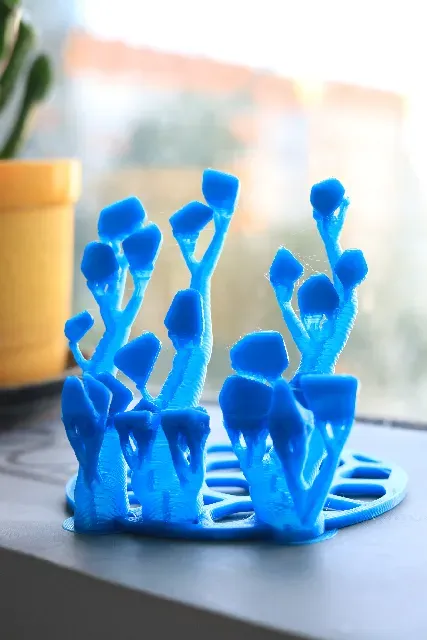

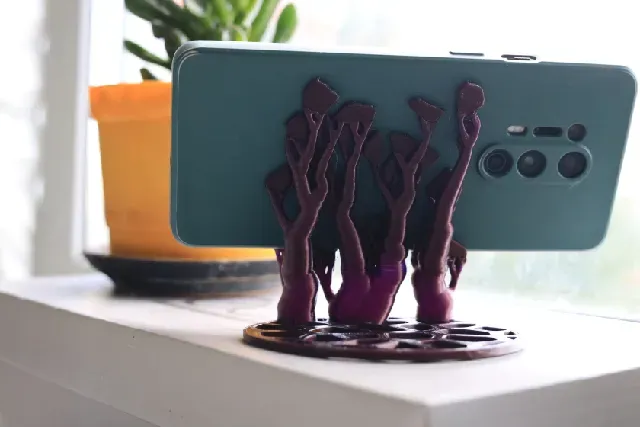

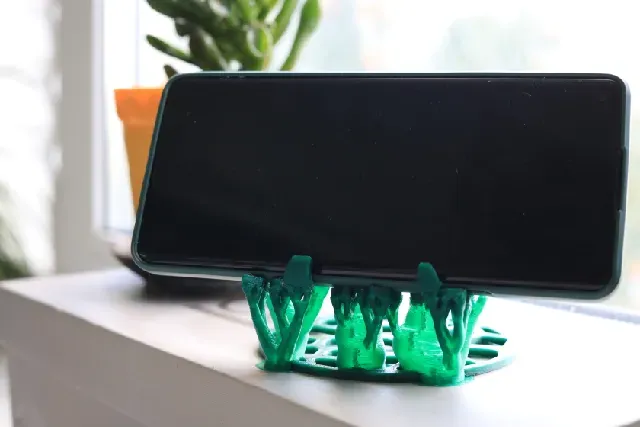

Prints just fine with a 0.3 mm layer height, but you can use a lower one to get nicer-looking curves. All the stands in the pictures are printed at 0.3 mm.

An interesting problem I discovered when designing this

- Currently (2.6.0 beta 2), organic supports try to avoid crossing through the same object they are supporting, as well as other bodies that are considered parts of this object. - Organic supports will HAPPILY generate right through another object - At least one part of the object has to touch the bed, otherwise prusaslicer will drop it down automatically. As of 2.6.0 beta 2, you cannon disable this - Although organic supports are stable enough during printing, the phone stand would not be able to support a phone with just these supports (unless i make them super thicc) - To solve this, I added a base that is a separate object, so the supports will fuse to it, giving the stand something to stand on. I've also added a 0.01x0.01 cylinder as part of the main object, which prevents prusaslicer from snapping it to the bed.
