DiscoEasy 200 X-Axis Left side for anti-backlash leadscrew nut compatible with Expert Part tool head

English description below

Ceci est un petit remix de la modification publiée par Petit_Homard_Breton pour la Dagoma DiscoEasy 200

Il s'agit simplement de couper une partie de la fixation de l'axe X (coté moteur) qui empèche la tête du design fourni dans l'"Add-on 3 - Pack Expert" de déclancher le switch d'arrêt de l'axe X.

La nouvelle tête utilise un roulement plus long (LM8 L UU) sur la partie arrière du portique, affin d'empécher la tête d'avoir du jeu, en ajoutant une meilleure contrainte en rotation autour de l'axe Y.

Vous devez utiliser la partie droite du post de Petit_Homard_Breton, aucune modification n'est requise du coté droit.

Note: Cette mofidifcation introduit un peut de jeu latéralement dans la barre du fond. Cela n'a pas lair de poser de problèmes pendant l'impression, et ne crée pa plus de bruit.

Cela pourait être corrigé en réduisant la profondeur du percage pour l'axe dans le coté droit. Je n'ai pas encore essayé. Je metterai à jour cette page au cas ou j'éffectue cette modification.

This is a small remix of Petit_Homard_Breton's modification of the Dagoma DiscoEasy 200 gantry.

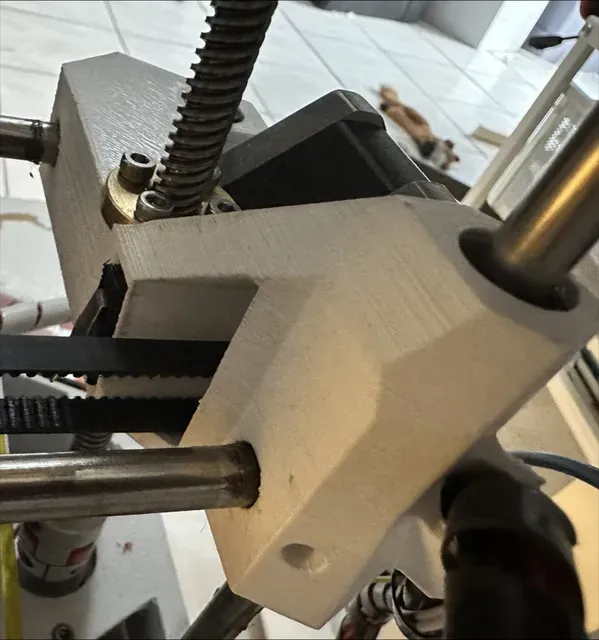

This simply cut a chunk out of the left side of the X axis holder (motor side) that allows the tool head included in the "Add-on 3 - Pack Expert" to properly home and hit the X axis endstop.

The new tool head uses a longer bearing (LM8 L UU) on the rear side of the gantry, as a way to prevent the tool head to have slop by containing it better in rotation along the Y axis.

You must still use the right side from Petit_Homard_Breton's Thing, as no modification on is required for it.

Note: This introduce a bit of side to side play on the rear rod. This seems to not impact print quality or noise.

This could be aleviated by reducing the depth of the blind hole on the left side of the gantry for that rod. I have not yet got around to try to do that. I will update this thing in case I end up modifying the right side.

Print Settings

Printer:

Dagoma DiscoEasy 200

Rafts: Doesn't Matter

Supports:

No

Resolution: 0.2mm

Infill:

33%

Filament:

Does not matter PLA Does not matter

Notes:

Use three perimeters. The rest of the settings do not really matter.

How I Designed This =================== Loosely compared the part from https://github.com/dagoma3d/STL-DiscoEasy200-Official/blob/Release/Add-on%203%20-%20Pack%20Expert/DKU001663%20-%20Axe%20X%20gauche/DKU001663%20-%20Axe%20X%20gauche.STL with the one from the source of this remix, and pocketed through a small cutout.

In pink, you can see the part from the expert pack; in green, you can see the modified one that allows clearance for the print head.

By comparing the STL from Dagoma posted on their github here https://github.com/dagoma3d/STL-DiscoEasy200-Official/blob/Release/Add-on%203%20-%20Pack%20Expert/DKU001663%20-%20Axe%20X%20gauche/DKU001663%20-%20Axe%20X%20gauche.STL with the original part, I drew a cut-out of the same shape

Top view of the part from the Dagoma "Pack Expert"

Top view of the part from this remix
