BLV MGN Cube TPU lid seal

Seal/Anti-vibration gaskit for the BLV MGN Cube metal kit, used on an opening lid.

Print Settings

Printer:

BLV MGN CUBE

Rafts: No

Supports:

No

Resolution: 0.1-0.2

Filament: 3dFillies TPU/Flexi

Notes:

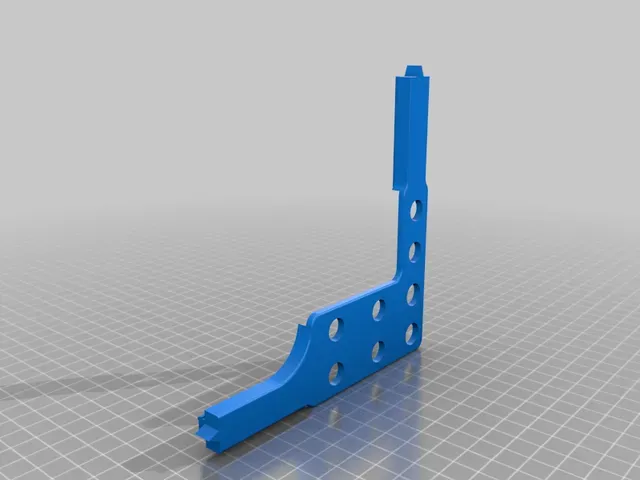

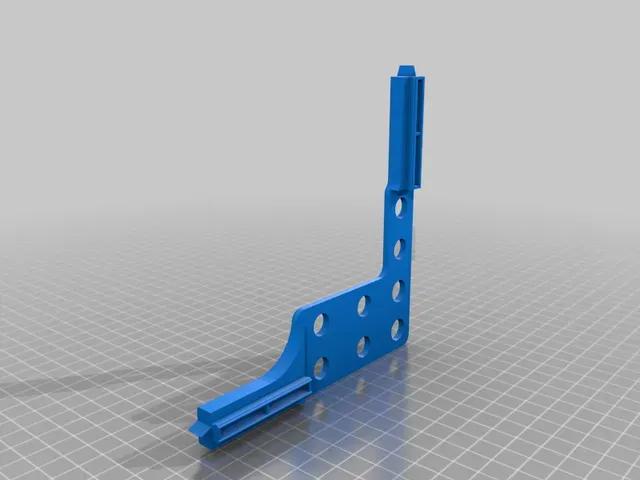

Print Corner pieces with high infill, 60-80%

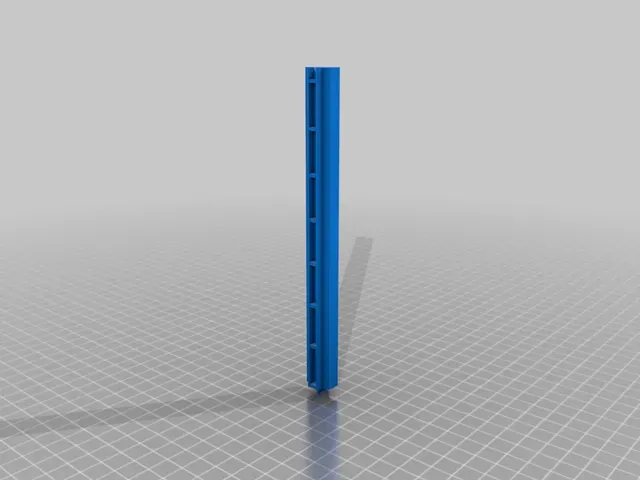

Side gaskit/Double cut rear gaskit print with lower infill, 20-40% For the complete gaskit, you will require one of each corner, 5x side gaskit and 1x double cut rear gaskit.

Hinge should be printed in PETG or other stronger filament. Gaskit is designed to work with the included hinge, other hinges may not work as the gap between the frame may be to small.

Category: 3D Printer Parts
