1U Ethernet Switches Panel

1U Ethernet Switches Panel

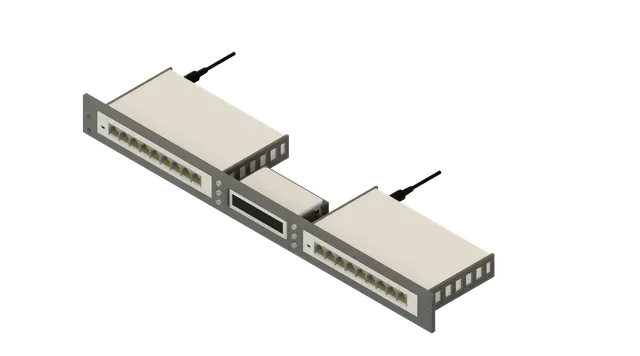

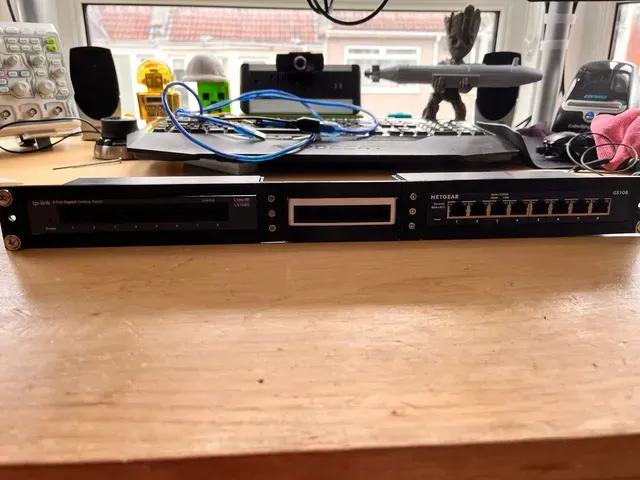

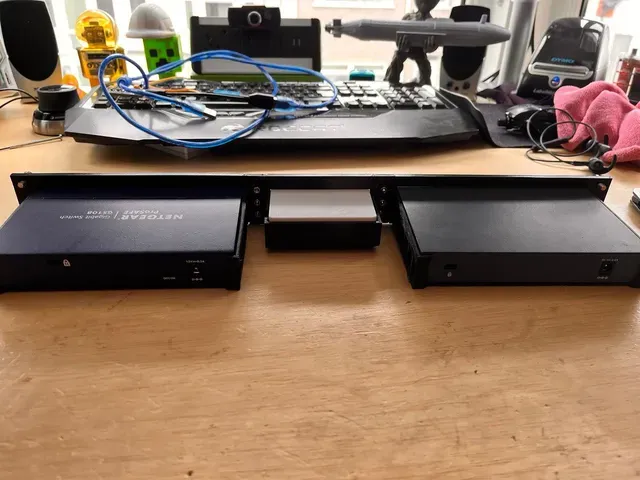

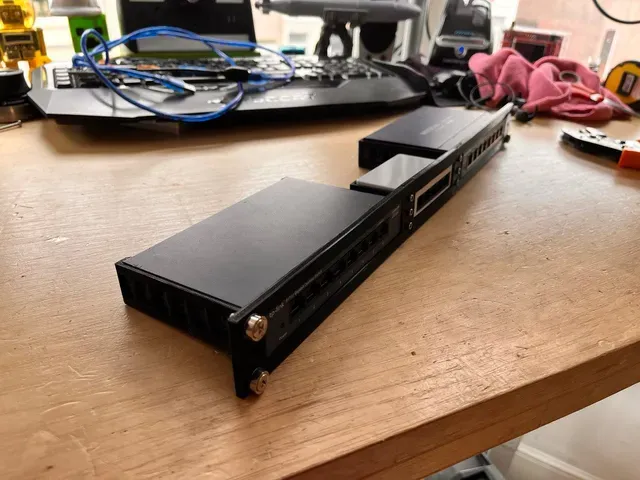

Within my server rack, I have three separate ethernet switches. I decided to mount them in a single panel rather than individual panels. The thing consists of three separate parts each of which is mounted using M3 nuts and bolts.

Equipment List

- 6 x M3x8mm Bolts - 6 x M3 Nuts Useful Links

- GrabCad SG108 Step File - Assorted Nuts and Bolts - TP-Link LS108G 8 Port Gigabit Ethernet Switch - Netgear GS108 8 Port Gigabit Ethernet Switch Print Settings

Printer Brand:

Prusa

Printer:

I3 MK3S

Rafts:

No

Supports:

Yes

Resolution:

0.4mm

Infill:

5%

Filament:

Prima Value PLA Black

Notes:

When printing these parts its recommended to use supports for the overhangs as well as, for speed reasons to print using a 0.3mm layer height. Its also best to use a high infill 30% so that the parts are reasonably strong.

Technical Drawing

Exploded View
