The PickleWhoop V2 (25) : cinematic whoop frame

Reach me on social medias for questions, news and support [ Instagram ] [ Facebook ] [ YouTube ]

If you like my work you can [ support me via ko-fi ]

------

Updates

- 2026/09/14 : added frame STEP files + DJI O4 Wide cam mount

- 2025/01/16 : added prints for the DJI O4 Pro

- 2023/06/02 : initial release of the V2 25 frame

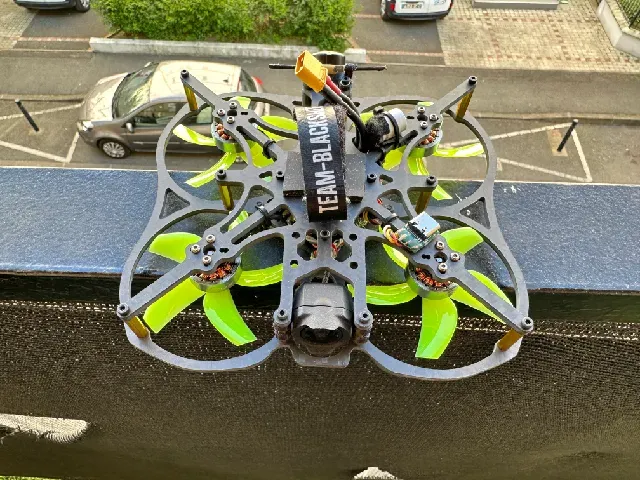

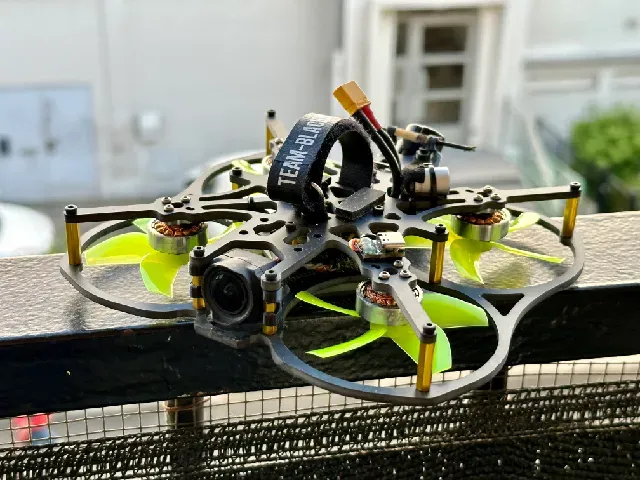

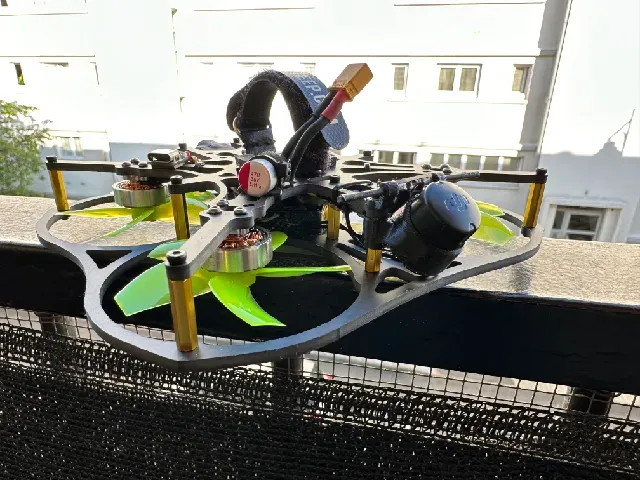

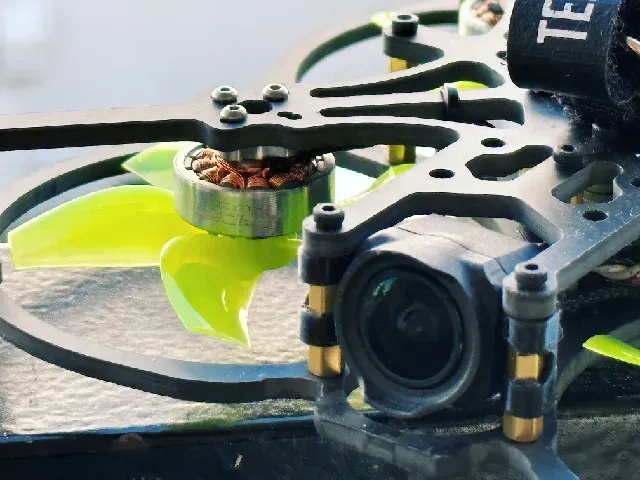

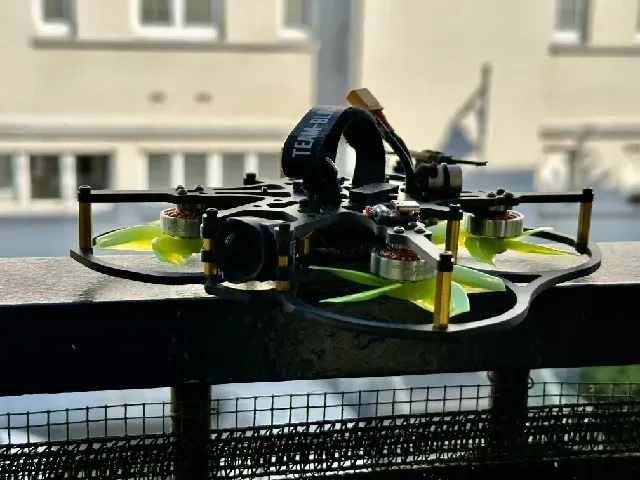

Meet the PickleWhoop V2, it's a tiny FPV cinematic frame with carbon prop guards for slow and proximity flights … but it comes out it can freestyle too if you really need :)

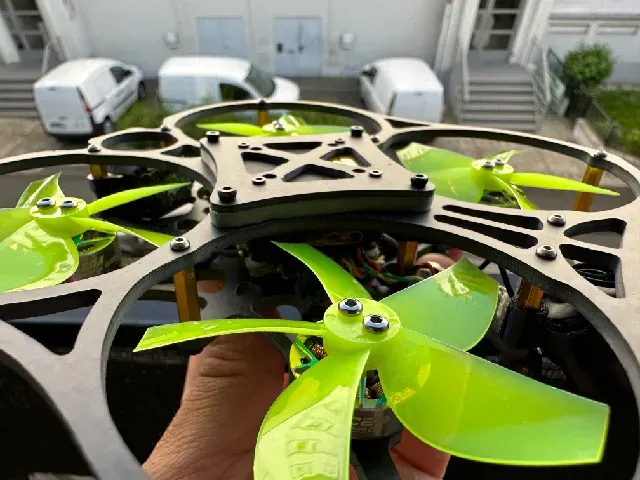

I wanted something that's easy to build and to produce so i gave up on printable ducts. Those are heavy and requires specific materials for the best results. So here only carbon, just to prevent propellers to hit something or someone.

The V2 frame have been rethought to be way easier to build with a single standoff size needed and less part. It's slightly lighter than the original version with the same best in class flight behaviour and usability.

What changed from V1

I worked to simplify the building of the frame. Now it uses a single prop guard and a single standoff size of 20mm (there were 3 different and uncommon sizes in the v1). The frame gets slighty lighter by side effect. It's stil thought for xx04 motors (the prop comes in the right place for the guard to protect it) but xx05/6 motors should work too.

Updates

- Nov 2023 :

- added a HD Cam shoe mount

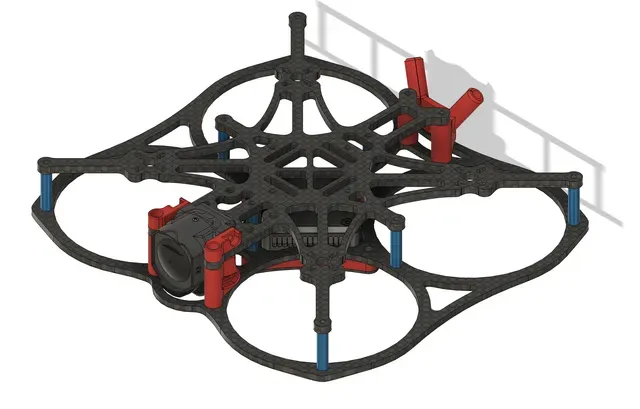

- added an optional motor shim to adjust motor position to fit the prop in the guard perfectly. I use the 2mm one printed in PLA on my 1604 motors. You can also get it cut in carbon fibre at any thickness you need.

Frame Specs

- 25 size (2.5" props) (more sizes to come)

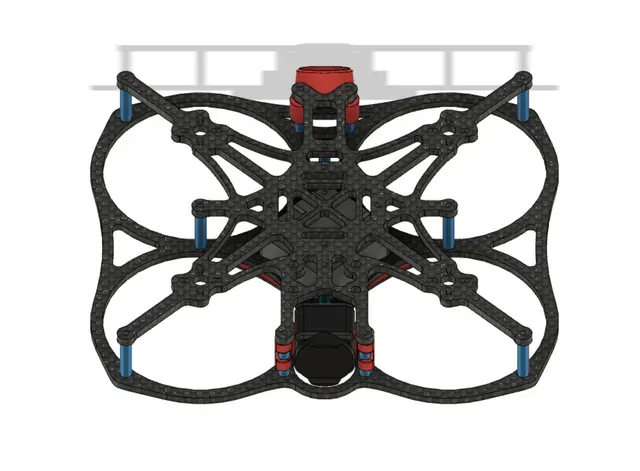

- WideX Layout

- PW20 : supports 9x9 motors only

- PW2_25 : Supports 9x9 and 12x12 motors

- Support AIO FC (25.5x25x5 mount)

- AIO and 20x20 mounts on the bottom plate (for DJI O4 Pro, O3, Vista, Walksnail VTX, etc) or other, easy access for work with detachable bottom plate)

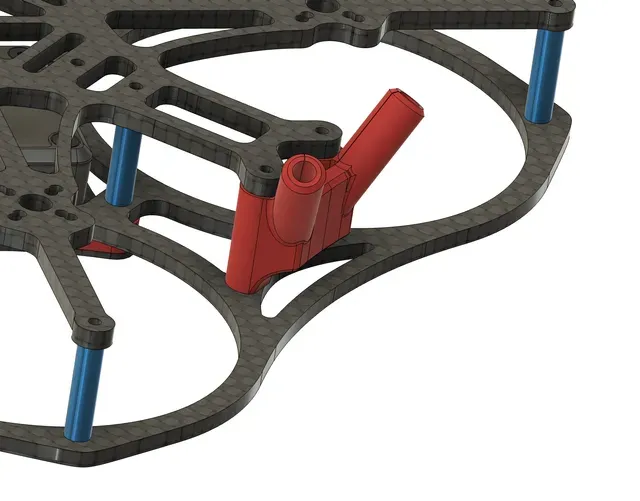

- HD Cam shoe that support Foxwhoop and CineLog cam mounts (M3 screw though)

- Normal or toilet tank battery installation.

- frame weight :

- PW25v2 : ~30g of carbon (add 10-12g of hardware)

Fitting the DJI O3 AIR UNIT

The unit must be installed flush on the bottom plate (use longer M1.6 screws, 8 or 10mm, in replacement of the stock ones) or use just some VHB tape. The TPU spacer allows to sink the plate and unit by 3.5mm. This size still allows access to the usb port and SD Card.

The space between front standoffs is now 27mm instead of 26mm, that allows a better dampening for the O3 as the cam doesn't touch anymore the mount sides, it floats on its screws only.

Fitting the DJI O4 Pro

Mount it upside down, you need 4 M2x5mm screws to attach it on the bottom plate. Seat it flush on the plate. The TPU spacer have a cutout to have access to the SD Card slot.

Mounting harware

The frame is intended to have a low profile of 20mm between standoffs.

for a 6mm between guards and 18mm from plate to plate (it fits a naked vista) you need :

- 12 x M2 20mm standoffs

- 26 x M2 6 (or7,8)mm screws for frame mounting

- 4 x M2 10mm for AIO installation

- 8 x M2 2mm thick nylon nuts for AIO FC installation

- PW25 : from 2 to 10 x M2 pressnuts : 2 for the bottom plate attach, optional 4 more for HD cam mount on the front of the frame. Optional 4 more for the vista installation on 20x20 mount. I designed the frame to use BetaFPV clamp nuts that have 3.1mm insertion hole.
