Gridfinity Parametric Box Blank (Fusion 360)

This is a "remix" of Quentibles Easy Gridfinity Parametric Box.

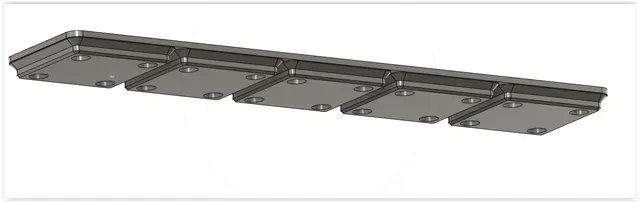

It allows you to create a blank of any grid size and any height.

See the notes from Quentibles original here - Easy Gridfinity Parametric Box by quentibles | Download free STL model | Printables.com

What you can play with

- The width (#grids width) of the box. - The depth (#grids length) of the box. - The height increment (does not need to be an integer) of the box. - A height increment of 1 provides an overall height of 7mm (per Gridfinity spec) with a flattop “deck thickness” of 1.2mm - See formulas below - The screw holes, if needed. 0=No, 1=Yes - The magnet holes, if needed. 0=No, 1=Yes - Magnet Hole Dimensions - The following original parameters are not applicable. There is surely a way to delete these unused parameters, but I am not there yet with Fusion 360: - The thickness of the wall, without altering the bulk dimension of the box. - The label thingy (length and width), if needed. - The scoop thingy (length and width), if needed. - The number of dividers, if needed. - The ribs (thickness and width), if needed. I needed a starting place to create some of my own models that would fit on Gridfinity sizing. I have two thoughts on how to use it:

- Create your own model separately and then glue/screw/attach it to this blank - Create your own model starting with this parameterized blank box. Formulas

- To calculate Dec/box thickness (mm) = (Height Increment*7)-5.8 - Example for Height Increment 2.5 - Deck or Box thickness = (2.5x7)-5.8 = 11.7mm - To calculate Height Increment = (Deck or Box thickness+5.8)/7 - Example for desired Deck Thickness 2mm - Set Height Increment = (2+5.8)/7 = 1.1143

FYI - I really contributed nothing to this model except to take away steps in Quentibles Fusion timeline. Nevertheless, I hope you may find it useful.
