VESA 100mm to VESA 75mm Adapter

What?

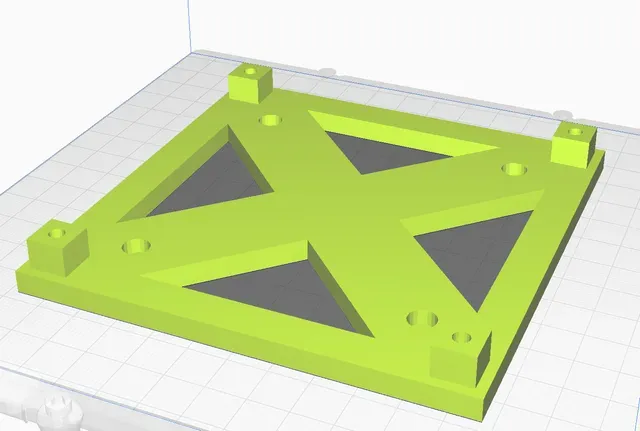

This print lets you mount a monitor that only has VESA 75 (closer) mounting holes to an arm with only VESA 100 (further apart) holes.

How do I use it?

- Use four M4 screws to attach the print to the monitor through the VESA 75 mounting holes. This may require some force. The four posts should be facing towards you while doing this. - Attach the monitor arm to the print through the VESA 100 mounting holes on the four posts using four more M4 screws. Again, this may require some extra force. - Finish setting up your monitor arm as you normally would. Notes & Print Settings:

If you have a .4mm nozzle, I recommend using 3 walls to help keep the M4 screws in place. If you have a .6mm nozzle, 2 walls should be fine.

I have not tested this print with heavier monitors. You may need to slightly modify your slicer settings or the model for better stability.

Resolution: 0.3mm Infill: > 20% Filament material: PLA
