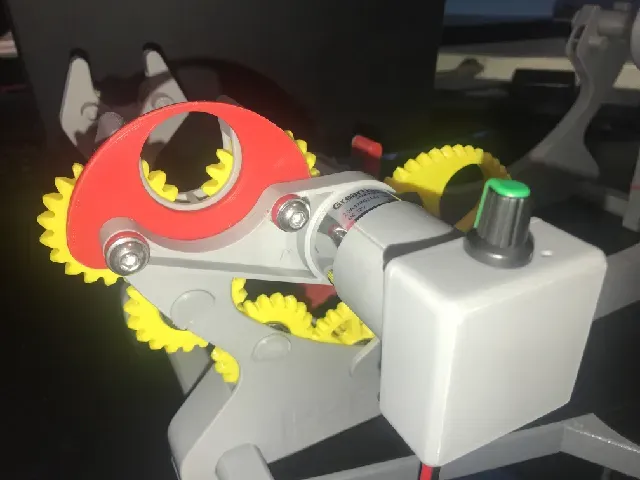

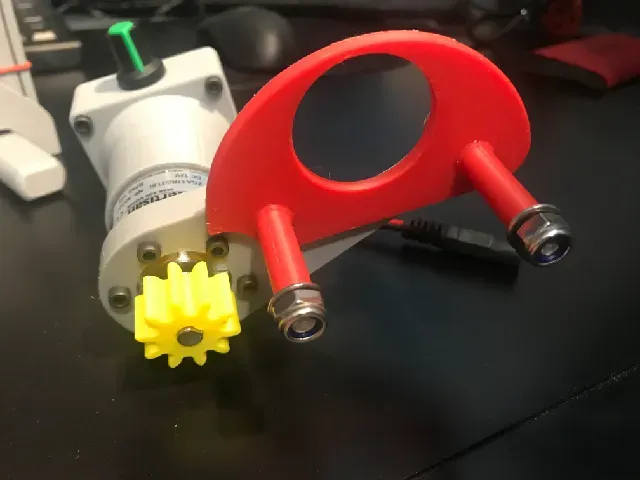

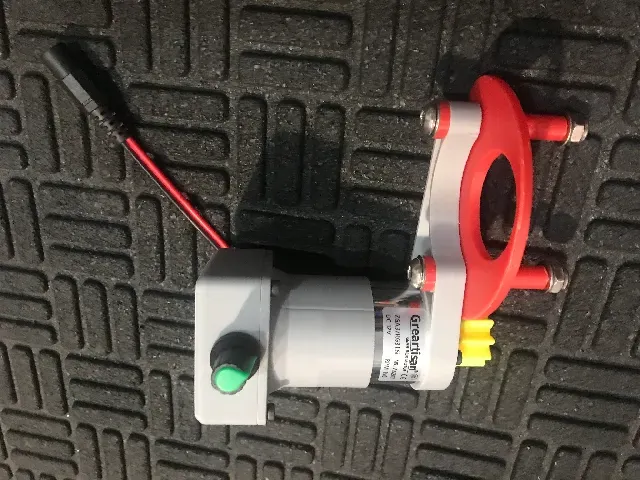

Pastamatic - 37 mm motor mount (enclosure)

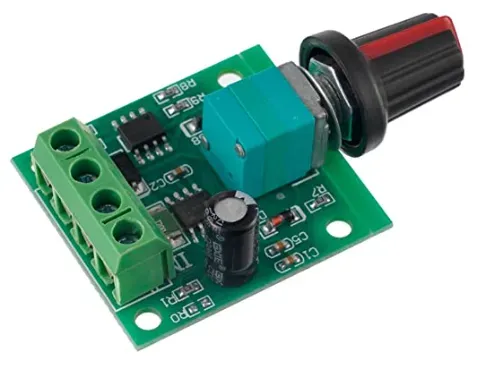

Speed Control

DC Motor Speed Controller PWM 1.8v 3v 5v 6v 12v 2A 30W Adjustable Driver Switch 1803BK 1803B

NEW Drive Gear

The NEW drive gear that has a closer tolerance for a press or tighter fit to the motor shaft.

Spindle retainer bracket

New retainer bracket, that keeps the spindle from popping out of gear train.

Heavy duty motor mount hardware

Includes 6mm stainless steel bolts, washers & lock nuts, to improve motor stability.

Fasteners

(2) 6mm x 50mm stainless steel button head bolts

(4) 6mm stainless steel flat washers

(2) 6mm stainless steel lock-nuts

(10) 3mm x 8 socket head cap screws (motor enclosure & speed control attachment)

(2-4) 2.6mm x 6mm Phillips head sheet metal screws (PCB mounting)

Rubber Grommet

(1) 3/8" rubber grommet

Parts (obtained from these kits)

Motor Centric Output Shaft 37mm Diameter Gearbox

BOJACK Low Voltage DC Motor Speed Controller

800Pcs 304 Stainless Steel Assorted Washers for Screws

Joamang M6 x 40mm 45mm 50mm 55mm 60mm Button Head Socket Cap Screws Bolts

binifiMux 35Pcs M6 x 1.0mm Nylon Inserted Hex Lock Nuts

MEIYYJ 10 Kinds Small Multi-Purpose M1 M1.2 M1.4 M1.7 Phillips Head Micro Screws

Wolfride 180Pcs Rubber Grommet Assortment Kit

MILAPEAK (Real 18AWG) 10 Pairs 12V 5A DC Power Pigtail Barrel Plug Connector

MTYTOT 12 Volt 2A Power Adapter Supply

Assembly notes

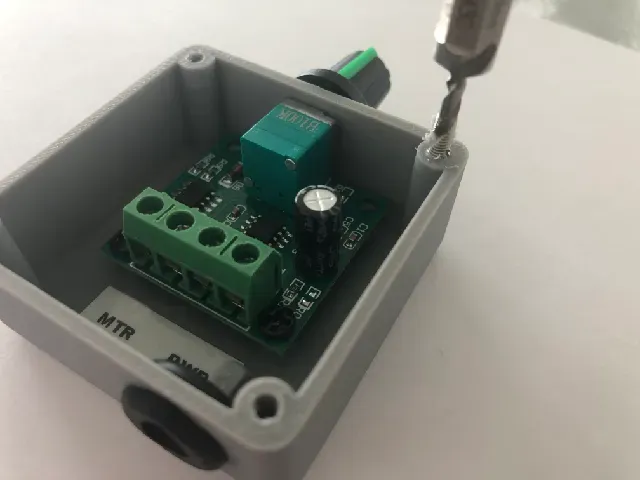

- Run a 3mm tap through - for motor enclosure & speed control attachment holes. - Ferrules greatly reduce the contact resistance between the wire and connectors.
