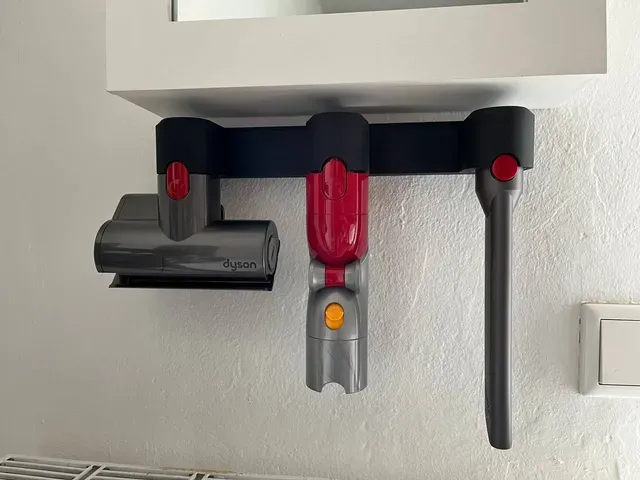

Triple Slot Dyson Accessories Wall Mount

Triple Slot Dyson Accessories Wall Mount for :

Dyson Outsize, V15, V11, V10, V8,V7 accessories

-----------------------------------------------------

You need :

3x M3x8 hexagon socket screw 3x3x25 or 3x30 countersunk screw

------------------------------------------------------

My Print Settings:

Printer: Bambu Lab X1 Carbon

Layer height : 0,2

Infill: 15%

Filament: Extrudr PLA NX2 Black

Support: YES

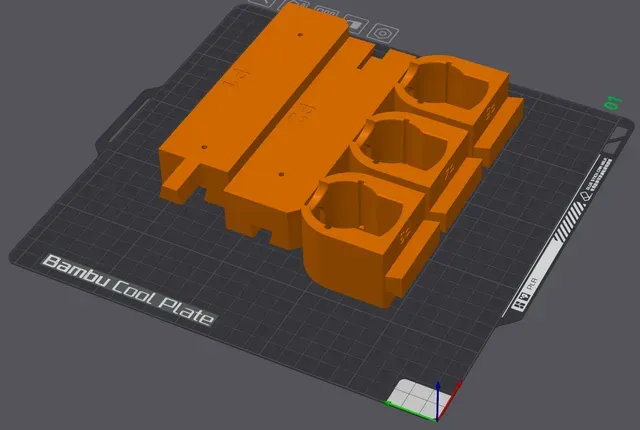

Print orientation: see photos

-----------------------------------------------------

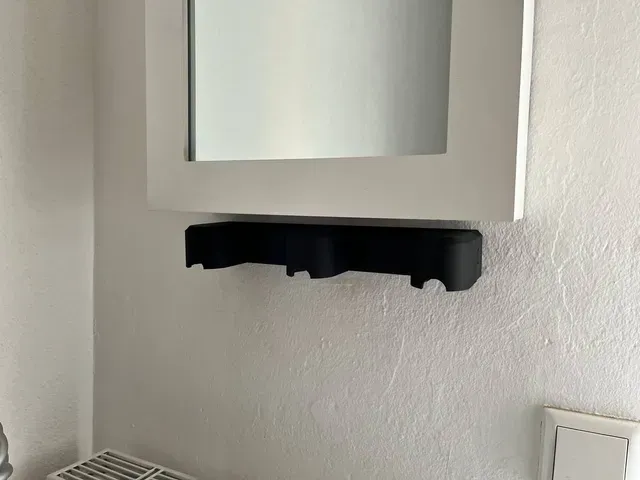

Installation:

1: Check if all guides are working.

2: Screw the M3x8 screws into the lower holes at P1 and P2. The screws later fix P3, P4, and P5. Make sure the screws don't stand in the guide.

3: Screw P1 to the wall.

4: Slide P3 into the guide from P1.

5 : Slide P2 into the guide from P1 and P3.

6: Screw P2 to the wall.

7: Slide P4 into the guide from P2 (left).

8: Slide P5 into the guide from P1 (right).

9: Tighten the M3x8 screws.
