Parametric OpenSCAD Clamp

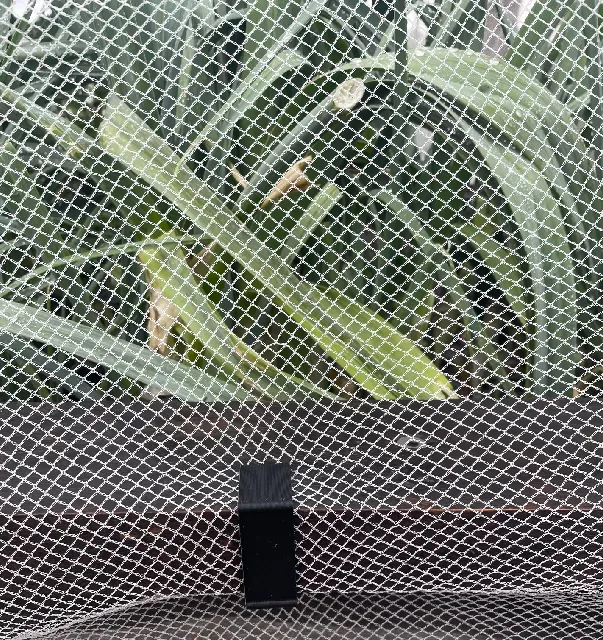

I needed a simple clamp to hold bird netting in place on a vegetable garden box.

Using OpenSCAD

- download OpenSCAD https://openscad.org/downloads.html - open the .scad file - make any changes you need - Use F5 to preview the model or via the menu Design/Preview - Once you are happy with the model use F6 to Render the model or via the menu Design/Render - Use F7 to Export the STL or via the menu File/Export/STL You can find shortcuts for preview, render and STL on the menu bar

Customising the Model

- length - depth - width - opening_width The difference between the width and opening_width determines the angle of the clamp sides and the amount of spring.

Printing

- Use Brim - Draft Mode - 60% infill - Consider printing in ASA Filament for outdoor use. ASA is UV stable.
