Commodore C64 MicroLUC cartridge housing case

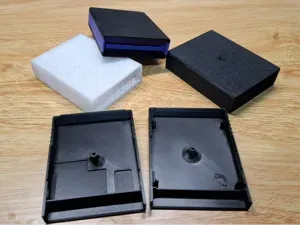

Recently I found some old cartridges for Commodore C64. They are working, unfortunately their housings look bad after over 30 years. So I decided to design new enclosures. First of them is a MicroLUC v2 cartridge case. The next one is a case for BlackBOX v4 https://www.thingiverse.com/thing:4695320 or https://www.prusaprinters.org/pl/prints/50931-commodore-c64-blackbox-cartridge-housing-case

Unfortunately, the quality of the printed circuit boards was low in those years, which makes the enclosures slightly different from manufacturer to manufacturer. While designing the enclosures, I based on my devices, so they do not have to fit to your boards.

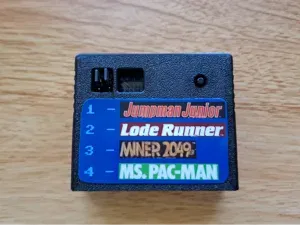

At the slicing stage I added a decorative strip to the case but it is not obligatory. However, if you want the inscription to be clearly visible, use one layer with a contrasting colour as its background.

You may also find the pin for reset button.

Print instructions

Printer Brand:

Prusa

Printer Model:

I3 MK3S

Supports:

Yes

Resolution:

0.15

Infill:

25%

Filament Brand:

Plast-Spaw

Filament Color:

Multicolour

Filament Material:

PLA

Misc Notes:

Print the case halves face up and use the supports for the inside. I suggest to use 3-4 perimeters.
