Small Y Belt Tensioner for Tevo Tarantula

If you found my things useful, you can buy me a cup of coffee: http://paypal.me/marcuss24

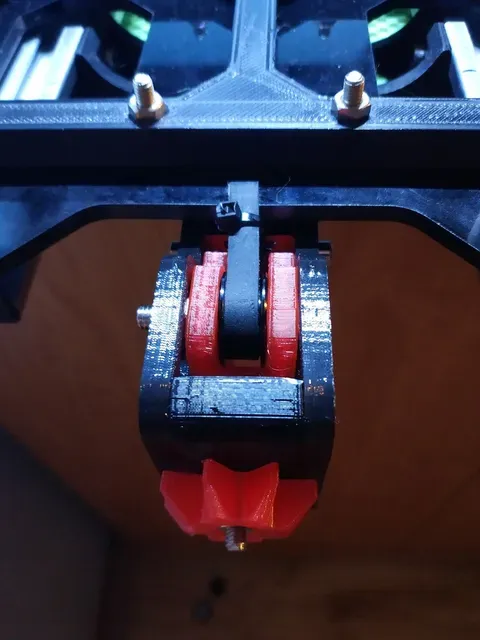

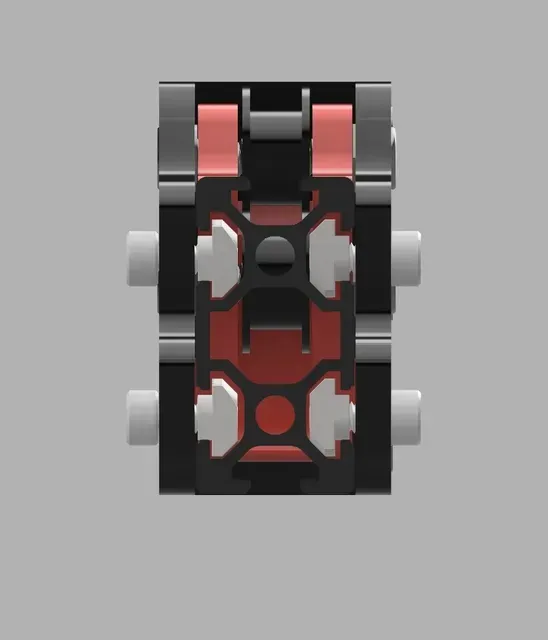

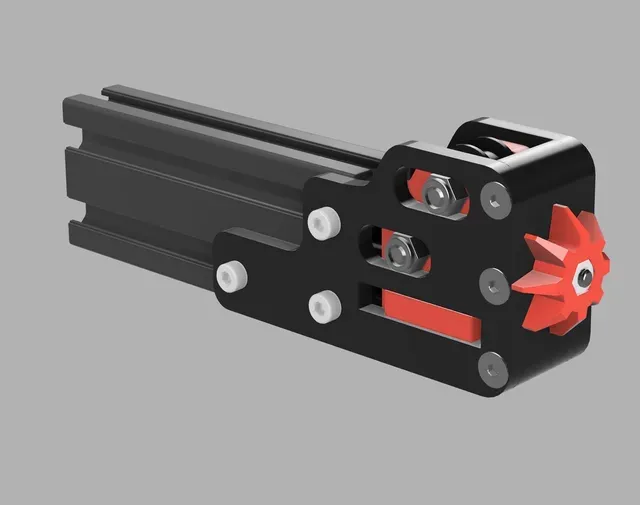

The original version was too big for my usage. So I created this smaller version of Y belt tensioner for Tevo Tarantula.

Changes:

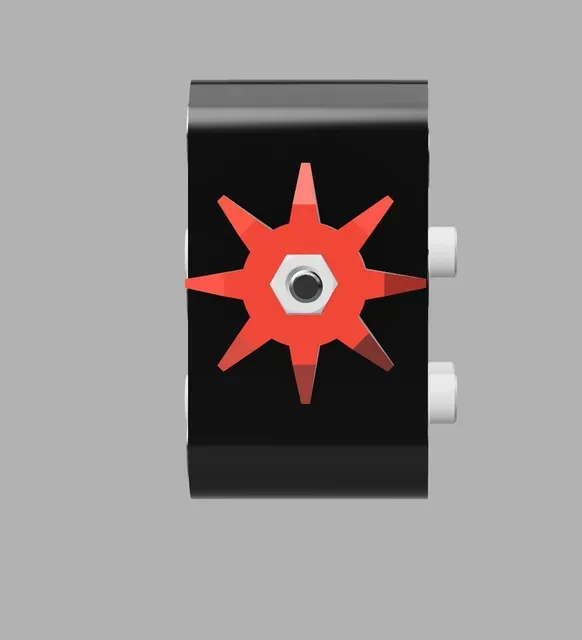

- Turnwheel has the grave for a nut

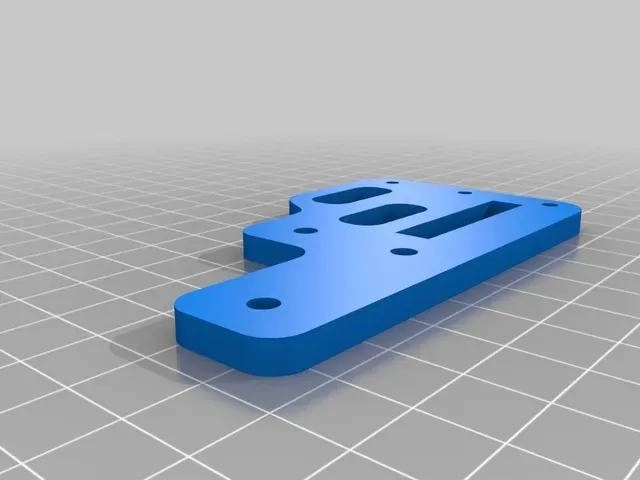

- backplate is screwed to brackets using M3 flat head screws

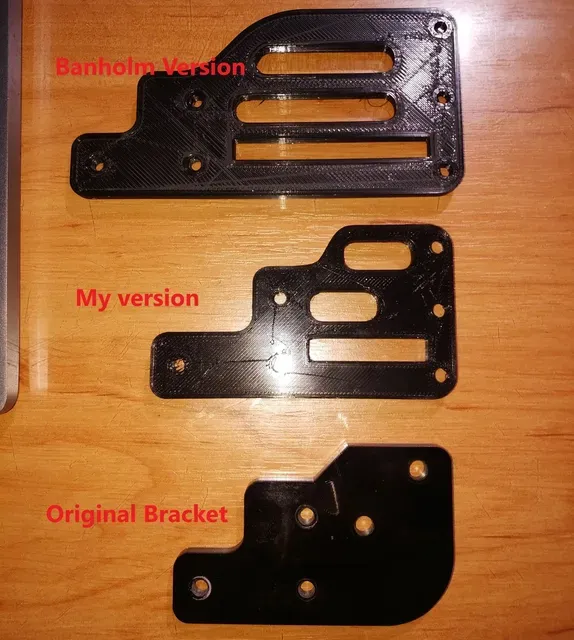

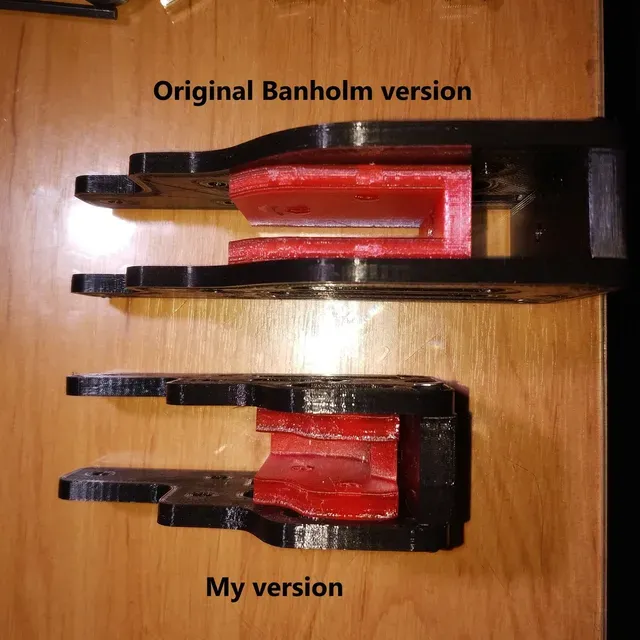

- Tensioner module, brackets and backplate are smaller -> So it's shorter for 30mm than the original tensioner from Banholm.

- it's compatible with large bed

Screws:

- 2x Pulley screw and nut

- 2x Pulleys

- 4x M3x12mm Flat Head Screw (for the backplate)

- 2x M3x10mm Flat Head Screw (for the middle holes in the backplate)

- 6x M4x10 screws

- 6x M4 T-nuts

- 1x M4x30mm screw

- 1x M4 Nut

- 1x Washer

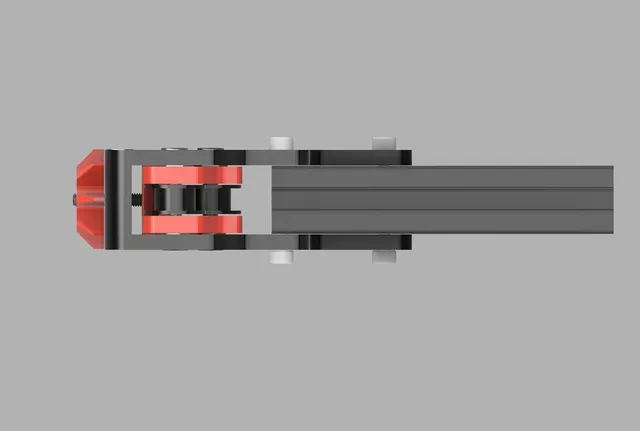

3D Assembly: https://a360.co/336NzIu

Print Settings

Printer Brand:

TEVO

Printer: Tarantula

Rafts:

No

Supports: No

Resolution:

0.2

Infill: 100%
