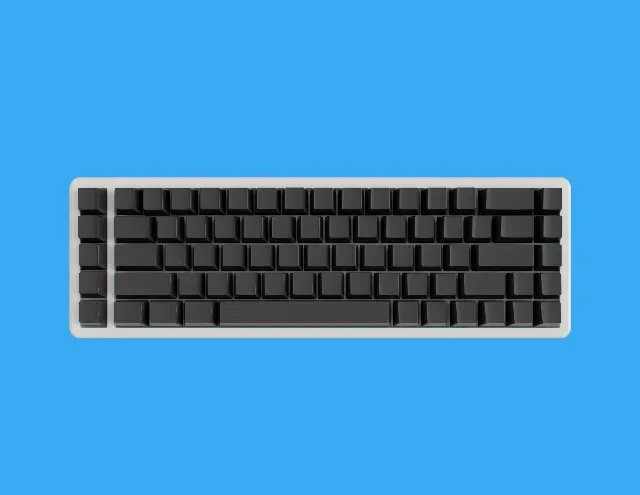

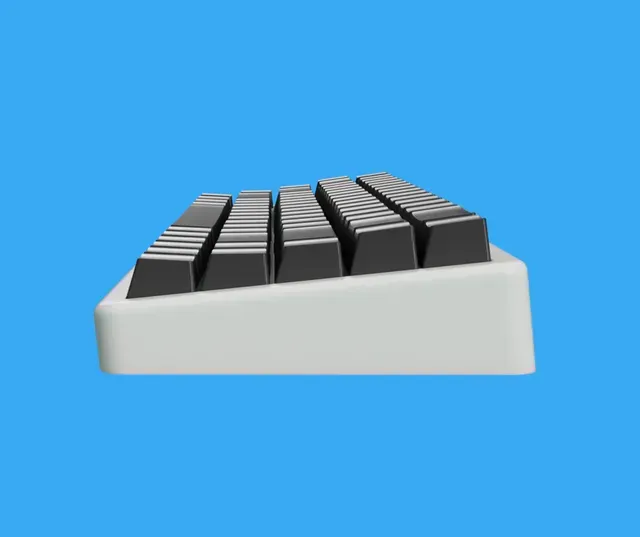

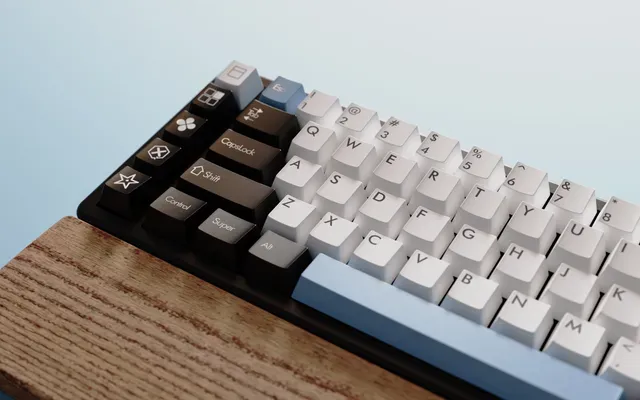

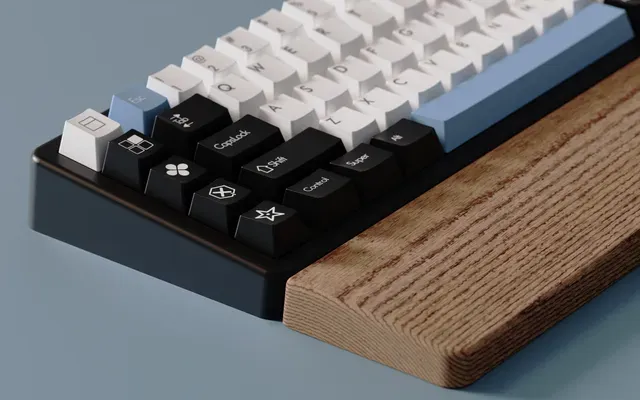

65% keyboard with macros

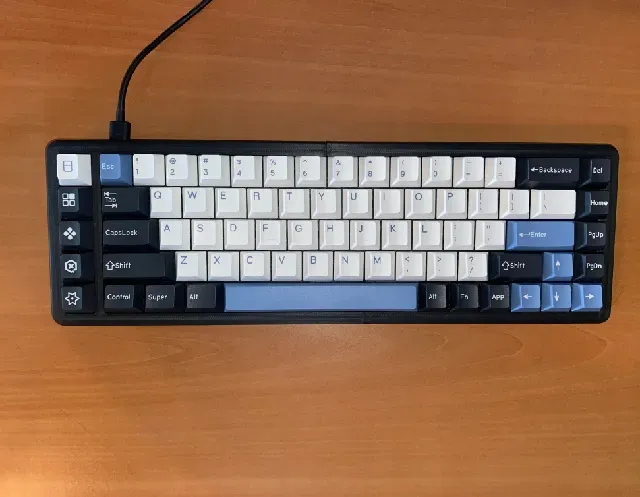

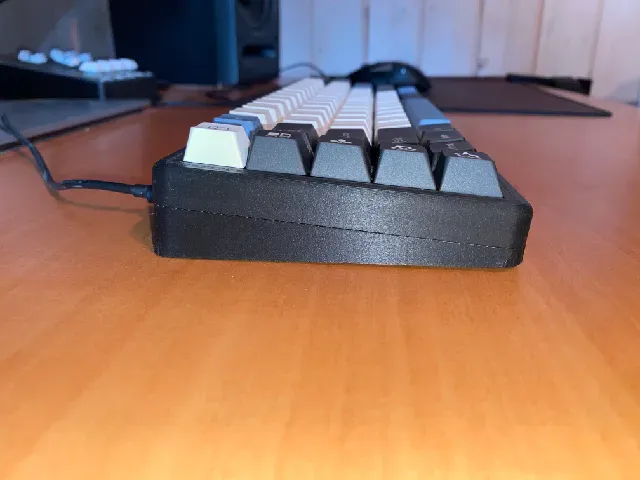

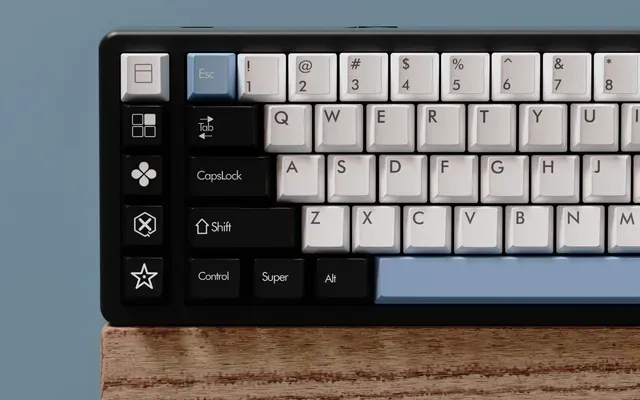

This is a 65% percent handwired mechanical keyboard with macros on the side. I wanted to build a mechanical keyboard but didn't want to spend a lot of money on a case, so I decided to design my own case and 3d print it.

Components needed:

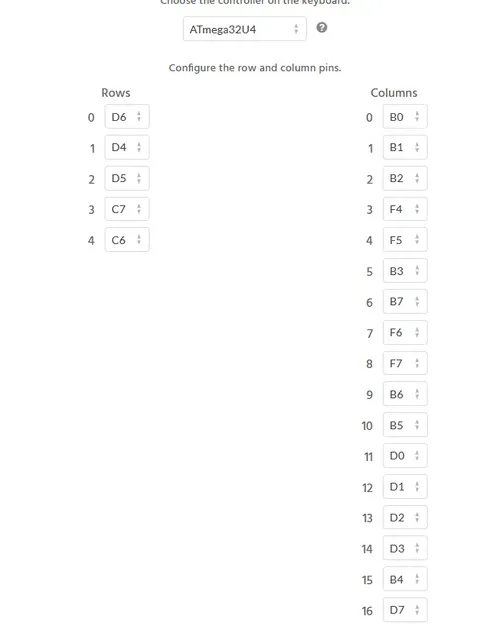

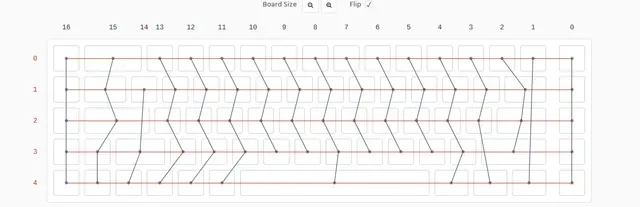

- Cherry style switches - Cherry style stabilizers - Teensy 2.0 - USB-C Breakout board - 1N4148 Diodes - Cherry keycap set - 8x M3 bolt - 8x M3 brass insert You can use the .json file in the firmware.zip file to edit the firmware on kbfirmware.com and view/change the pins that I used. You can flash the .hex file on your Teensy 2.0 if you want to use the same pins and settings as I do.

Enjoy and post your makes!
