Anycubic Kobra Neo ADXL345 Mount - DING

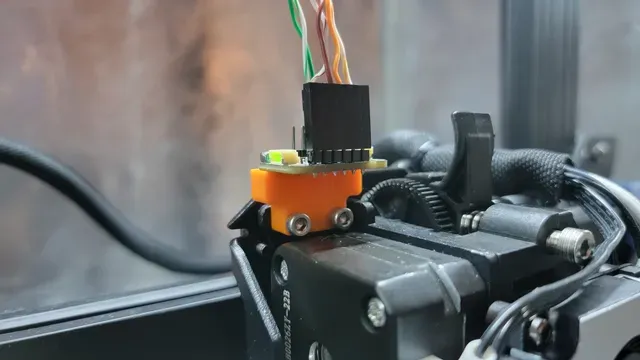

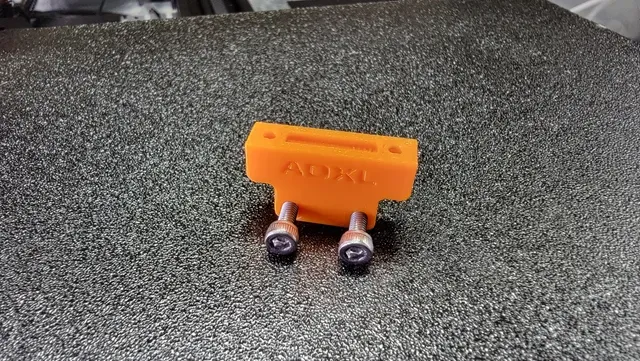

This is a small mounting block I made to attach an ADXL345 accelerometer to the printhead of my Anycubic Kobra Neo for tuning Klipper's input shaper. The block screws in on top of the extruder mounting plate (see photo). Use 2 M3x12 screws to mount the block instead of the stock ones, and 2 M2.5x8 screws to attach the ADXL345. Make sure to flip the model upside down so the M2.5 holes are on the bed! Includes a version without the embossed logo.

NOTE: This is designed for the Adafruit ADXL345 and as such might not fit other models.

Print Settings

Layer height: 0.16mm

Infill: 100%

Supports: No

Printed in PLA
