Modular mechanical keyboard stand

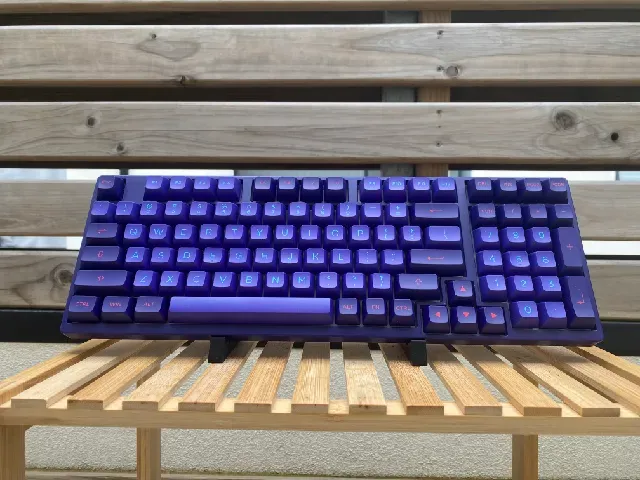

Modular version of the keyboard stand to suit different keyboard sizes. I found the original to suit 60 and 65% keyboards well, but not longer or shorter sizes.

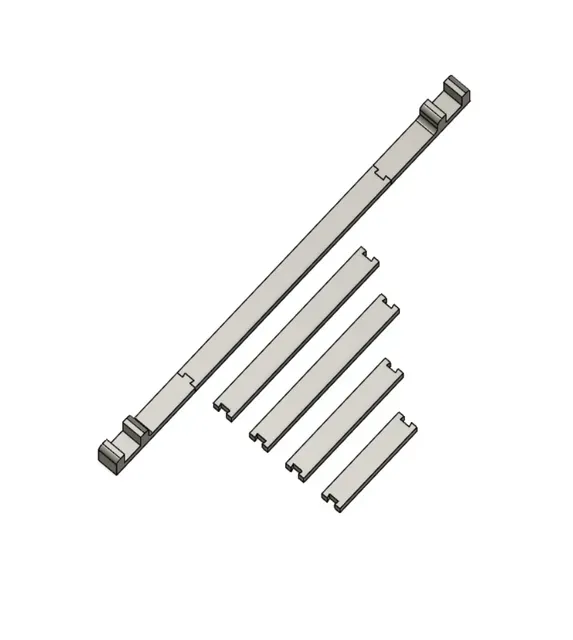

Print one of each piece, but pick the middle piece depending on your keyboard size:

Size Keyboard layout Reference length

A 40% ~292 mm

B 60%, 65% ~316 mm

C 75% ~365 mm

D 1800, Alice ~380 mm

E Full-size ~440 mm

The lengths were based on Akko/Ducky keyboards of standard layouts. There's a whole lot of non-standard keyboard layouts however, so compare to the reference sizes above to see which length might best suit your keyboard.

Note: - The pieces are intentionally designed with tight tolerances to keep them together without adhesives or fasteners. They should snap together with a satisfying click
