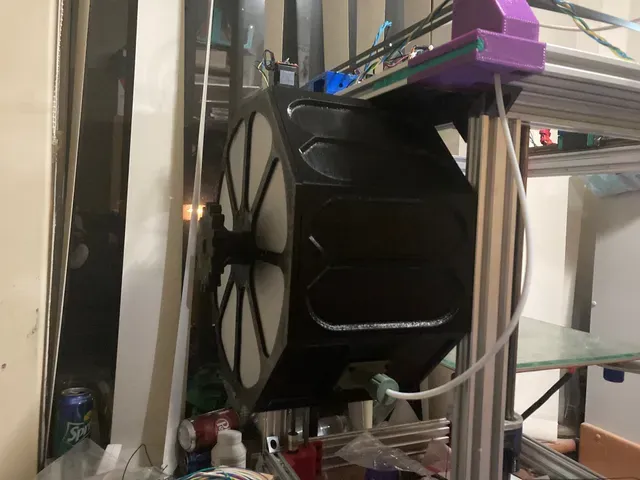

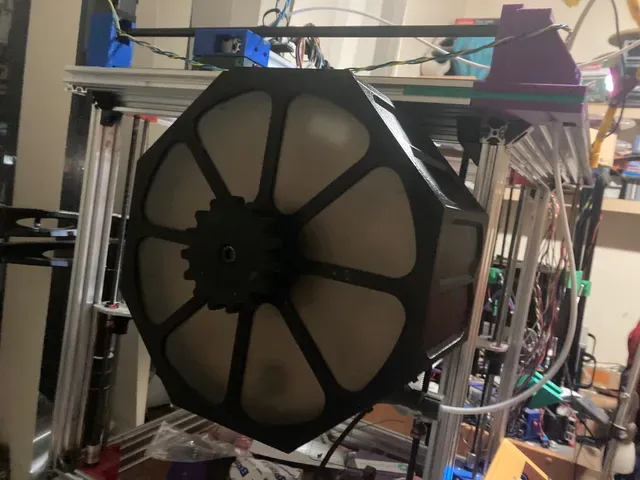

Spool Holder to fit Polymaker 3kg Rolls

As I am now starting to purchase and use 3Kg Polymaker spools, I decided to retire my Spanner Hands spool holder which served me well for the last 5 years and print a new one using a similar concept for the 3Kg spools.

In the ends of the lid and spool holder are windows, what I did here using the clip cutter, is trace on to clear plastic, the window to be cut out and cut it out with scissors, and then super-glued into place with the window clip to ensure its glued in nicely.

You will need 2 x 608 bearings, and a 35mm long M8 screw and a 60mm long M8 screw, socket cap head preferred.

The spindle is a loose fit onto the bearings but you can see part of what holds on the lid is where the spindle that the roll sits on.

The point where the filament exits is compatible with current spanner hands spool holder accessories as seen on the spool holder
