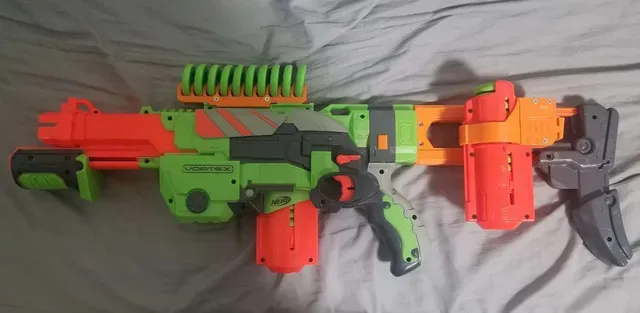

Nerf Vortex Praxis Stock Magazine Holder

An attachment for the Nerf Vortex Praxis that adds storage for an extra magazine to the stock. Its built-in release mechanism holds the magazine firmly. Since the top of the magazine is exposed, you can load more discs into it while it's stored here.

Requires the following additional components:

- (10) #4 x 1/2 IN flat screws - (2) 1/2 IN round washer screws - (1) 5mm diameter, 12mm long compression spring (I salvaged this from a broken Nerf gun) This model prints in eight parts. Supports are not necessary for any of the parts if you orient them correctly. If you are a left-handed shooter, I recommend mirroring all of the parts so the magazine won't get in the way of your trigger arm.

Assembly Instructions:

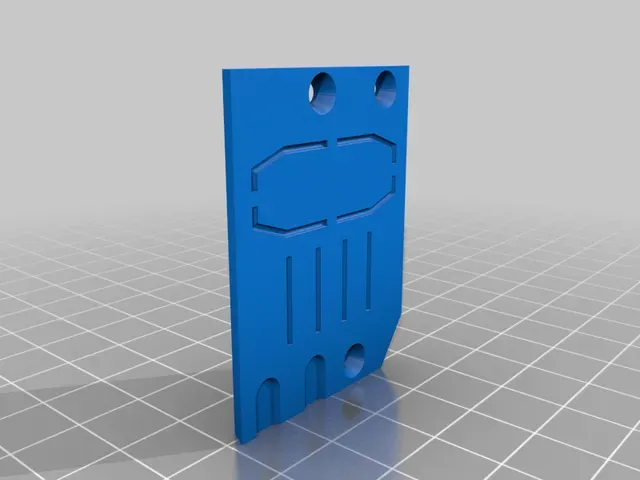

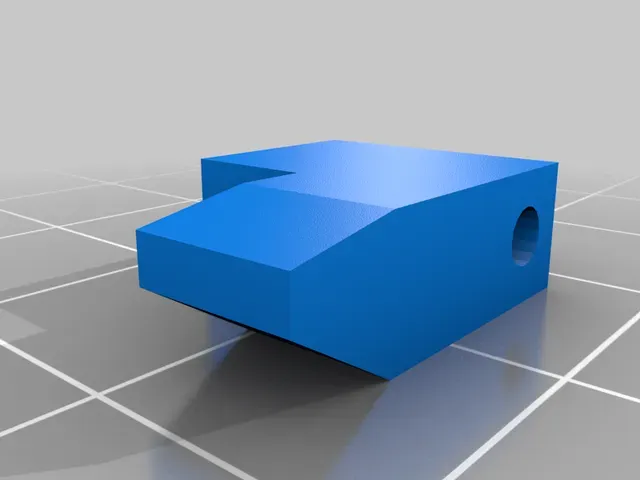

- Attach the arm to the back panel with a washer screw as shown in photo #4. Make sure it is oriented correctly. Tighten the screw as much as possible without it restricting the arm from rotating freely. - Attach the notch to the arm with the other washer screw. Once again, make sure it is tight but can rotate freely without friction. - Attach the back panel to the ring using the flat screws. - Insert the spring behind the notch and insert the release button. Test to make sure the whole mechanical system works by inserting a magazine. If there is too much friction, you may have to sand or shave down the components. - Attach the front panel and test one more time that the mechanical system works. - Attach the ring to the left stock piece as shown in photo #3. The two screws should go in at a slight angle. - Attach the two stock pieces together around the Praxis stock.
