Wall mounted dropper bottle paint rack

I am always looking for an excuse to learn CAD with practical designs. There are several versions of wall mounted paint storage already but I wanted to try to make my own.

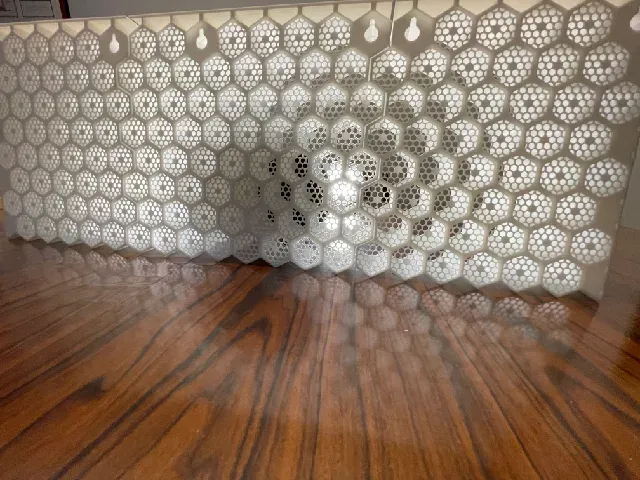

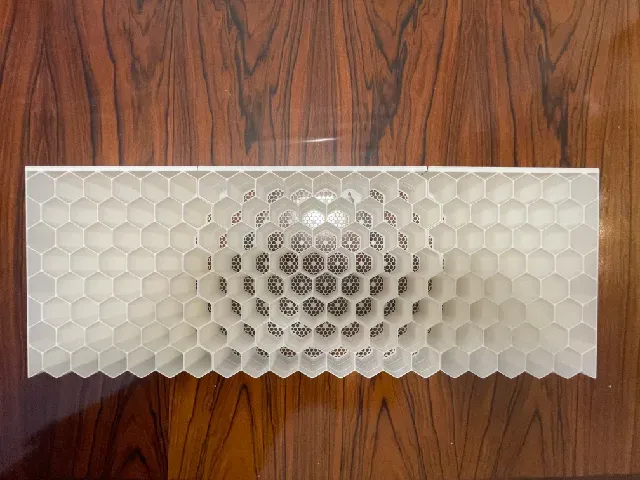

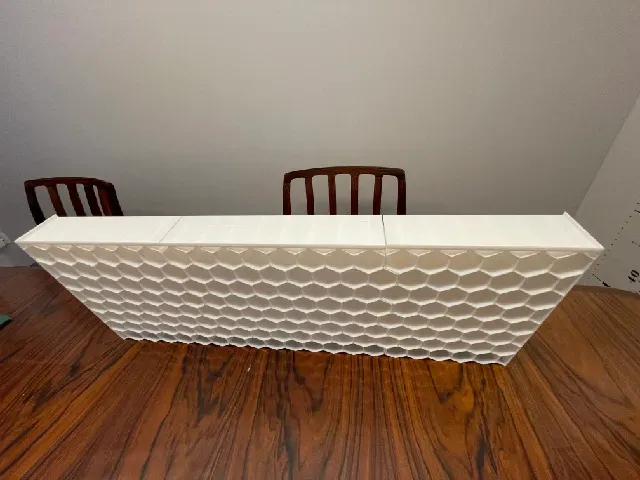

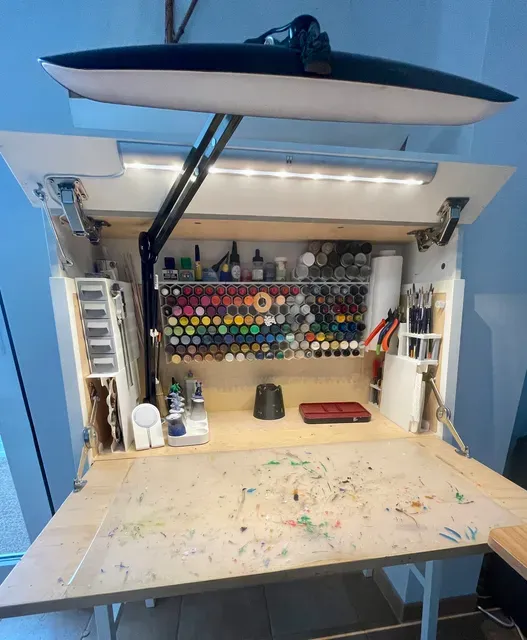

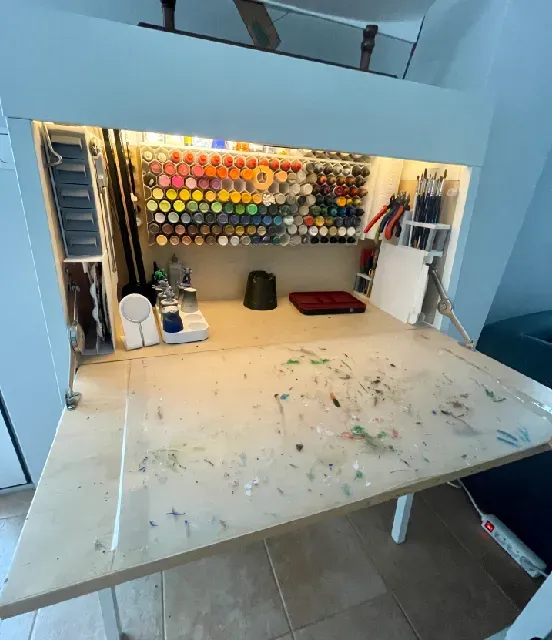

The paint rack in the photos:

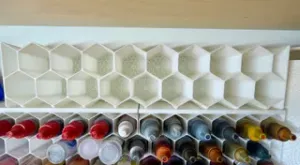

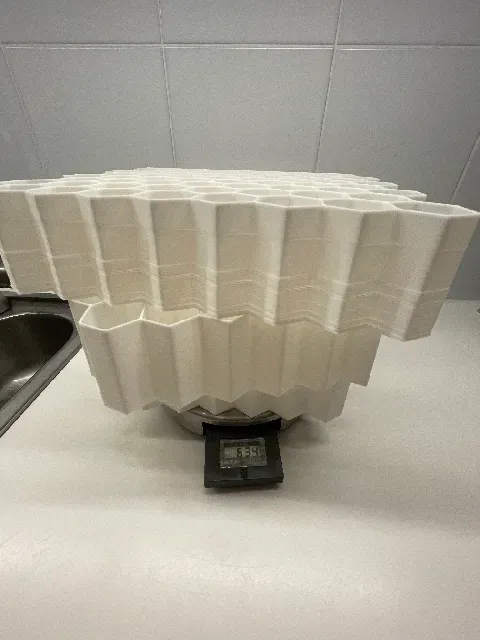

- 590mm x 54mm x 230mm (LxWxH) - 634g PLA (Anycubic white) - 156 dropper bottles - Bambu Lab P1S total print time 38hrs (or 40mm/s print time 193 hrs) I have now made a paint stand for 35mm bottles Dropper bottle paint stand (35mm) by ATree | Download free STL model | Printables.com

I took inspiration notably from:

HSW paint holder by Elvin | Download free STL model | Printables.com I like material and space efficiency. plus Bestagons !

backstops and shelf on top by grindy2608 - Thingiverse I liked the shelf and hidden mounting points.

My specification:

- compatible with dropper bottle paints and their various bottle cap designs. - maximize build plate (256 x 256) - minimize space needed for bottle storage - possible x or y axis expansion (pieces can seamlessly fit together) - provide resources for others to make customized rack shapes - shelf on top (with raised edges to prevent things falling off) - efficient material use - easy to print - no supports - able to lift the whole rack off the wall without the paints falling out. - tubes long enough to have backwards bottles. - tubes short enough to access shorter dropper bottles I use for Citadel paints

Notes when making your own paint rack.

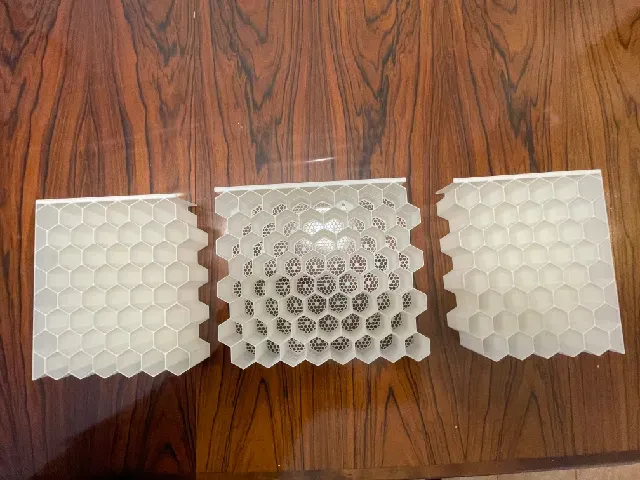

- 42 cell racks will fill 220 x 220 build plate - 64 cell racks will fill 256 x 256 build plate - Wall thickness for the single cell model is .4mm. I recommend thickening the outer wall of the finished paint rack to .8mm (same thickness as the interior walls of the paint rack.) - Please share your make, I would love to see this out in the wild.

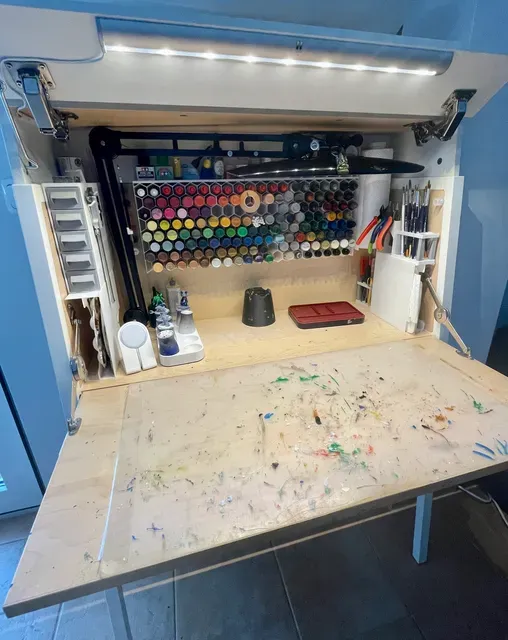

All 3D printed parts used in my hobby desk organization project so far:

Dropper bottle paint stand (35mm) by ATree | Download free STL model | Printables.com

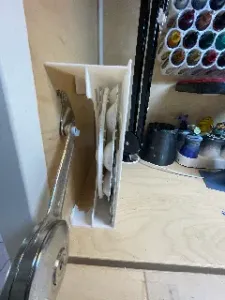

Ikea PS 2014 Folding desk hinge cover by ATree | Download free STL model | Printables.com

Army Painter wet palette “floating shelf” wall mount by ATree | Download free STL model | Printables.com

Paint brush or tool holder - max 28 brushes by ATree | Download free STL model | Printables.com

Box with drawers parametric by Yanev | Download free STL model | Printables.com

Probably the most comfortable painting handle out there by flossi - Thingiverse

Brush Holder by Ratthy - Thingiverse

paint water pot by arnaud vgr | Download free STL model | Printables.com

iPhone 12 mini MagSafe Stand by dreamseed - Thingiverse

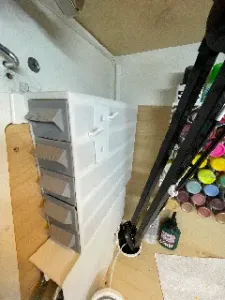

Very specific set of drawers and dividing boxes by ATree | Download free STL model | Printables.com

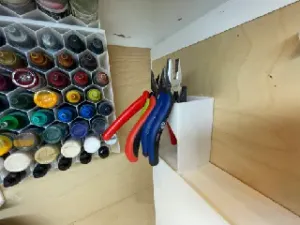

Plier holder for Ikea PS2014 hobby desk project by ATree | Download free STL model | Printables.com

Paper towel holder - vertical - Ikea PS2014 Hobby Desk Project by ATree | Download free STL model | Printables.com

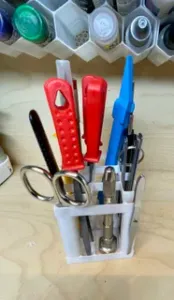

Tool or brush holder v2 by ATree | Download free STL model | Printables.com

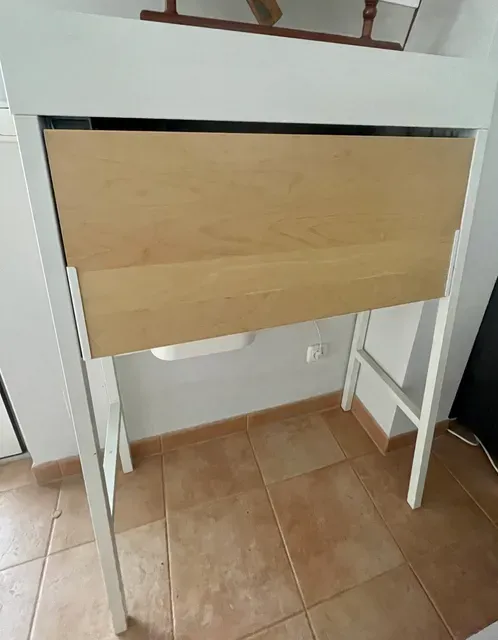

Ikea PS2014 Desk Hack:
