PCO-28 (German PET Coke Bottle) Thread profile for Fusion360 - Gewinde für PET Mehrweg Cola Flaschen

Fusion360 custom thread profile for soft drinks bottles (PCO-28 spec). Unzip to

\Users\ {USERNAME} \AppData\Local\Autodesk\webdeploy\production\ {NEWEST FOLDER} \Fusion\Server\Fusion\Configuration\ThreadData

Note: You'll need to change {USERNAME} and {NEWEST FOLDER} to match your own install. The current version should be the one with the latest date stamp.

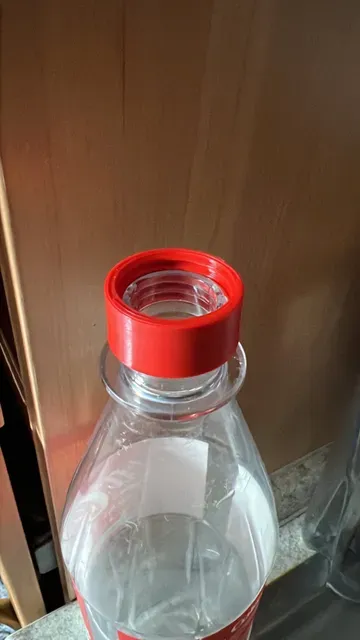

I needed for a bee feeder a screw connection for PET returnable cola bottles as they are common in Germany (see the resulting model ). Inspired by a Thingiverse model and following the instructions from Autodesk I created the attached XML file.

Attention: After an update of Fusion 360 the copied profile is gone and has to be added manually or you have to install the ThreadKeeper AddIn .
