Paramaterized Honeycomb Storage Wall Ruler (or other long rectangular object) holder

There's some hooks out there that are designed for the hook hole that you get in the end of straightedges, but I wanted something that's more of a slot, so this idea popped out of my head.

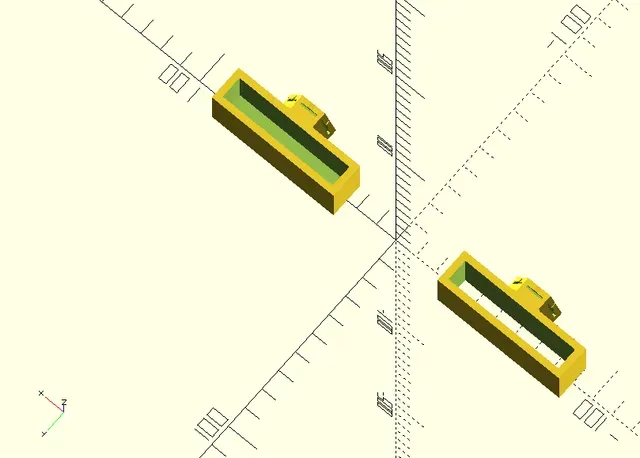

Basically, there's two pieces to this, you print both of them (at the same time, or you can split them up) and the one with a solid bottom is designed to be below and then the one without a bottom is designed to prevent the object from falling out.

I'm saying it's a ruler holder because that's what I was trying to store but it will probably work for other long not-especially-heavy rectangular objects just as well. Presumably you could print a second bottomless version for more support, etc. If it's awesome for something not-ruler-like, I'd love to see you post makes!

Library requirements

This requires you to install the BOSL2 library and the OpenSCAD library for HSW attachments to work. There's also a mesh, but you don't want the mesh, you want the OpenSCAD version so you can crank out whatever dimensions you desire. The default setting is what worked for my assortment of rulers.

Printing settings

It's designed to print without supports and go straight into the honeycomb without needing any extra inserts.

The geometry for HSW is generally designed for PETG. I printed mine with Prusament black PETG on a 0.4mm nozzle.

If you like this:

- I have a paramaterized honeycomb storage wall that will fit any size - I have a paramaterized 90 degree angle joiner , for the corners. - I have a paramaterized feeler gauge (or other stubby rectangular thing) holder - I have a paramaterized ChipQuik liquid flux organizer - I have a paramaterized de-soldering sucker holder - I have a collection of all of the Honeycomb Storage Wall bits I use myself
