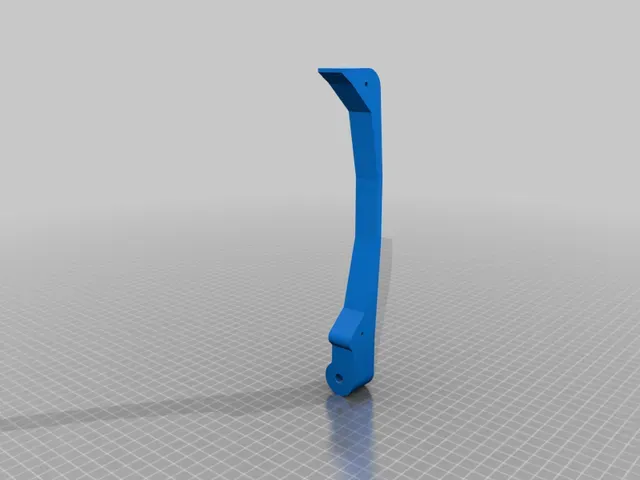

SC2 and 200mm Noctua VR Fan Mount

Fan mount for SC2 Sport or Pro bolt pattern and SimLab vertical Mount.

This is for VR use only as it would certainly be in the way of screens.

This mount uses the long 8mm bolts extending behind the SimLab Vertical Mount and has clearance for that particular mount.

I used this fan:

Noctua NF-A20 PWM chromax.Black.swap, Premium Quiet Fan, 4-Pin (200x30mm, Black)

Also a PWM controller with knob and a 12V power supply.

This also requires 2 3" 1/4 20 hex shoulder bolts and 1/4 20 threaded knobs with a 3/4" base to fit in the hole.

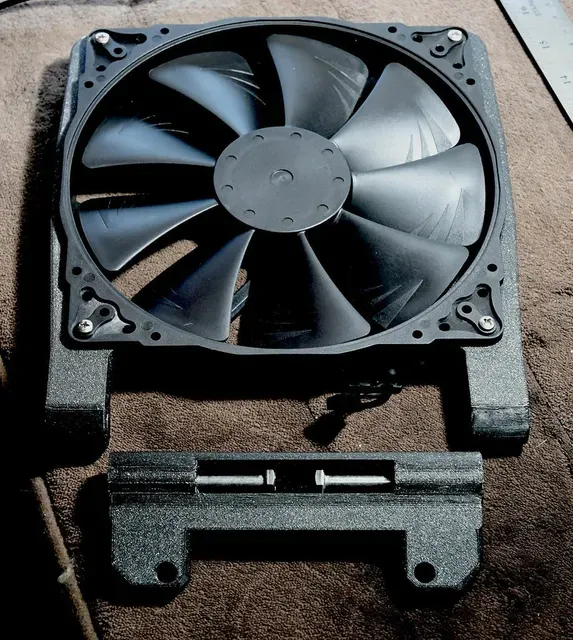

I used wood screws to attach the fan from the back.

I did need to sand the inside of the holes to make them smooth so the knobs would fit.

The hex bolts are inserted in the back and pushed through.

Print instructions

Category: Hobby Summary

Fan mount for SC2 Sport or Pro bolt pattern and SimLab vertical Mount.

This is for VR use only as it would certainly be in the way of screens.

This mount uses the long 8mm bolts extending behind the SimLab Vertical Mount and has clearance for that particular mount.

I used this fan:

Noctua NF-A20 PWM chromax.Black.swap, Premium Quiet Fan, 4-Pin (200x30mm, Black)

Also a PWM controller with knob and a 12V power supply.

This also requires 2 3" 1/4 20 hex shoulder bolts and 1/4 20 threaded knobs with a 3/4" base to fit in the hole.

I used wood screws to attach the fan from the back.

I did need to sand the inside of the holes to make them smooth so the knobs would fit.

The hex bolts are inserted in the back and pushed through.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

</div> Rafts:

No

Supports: Yes

</div> Resolution:

0.15

Infill: 15%

</div>

Filament:

Prusament Galaxy Black PLA Black Notes:

I did need to sand the inside of the holes to make them smooth so the knobs would fit. The hex bolts are inserted in the back and pushed through.

Also I may create a version of this with a shroud on the front to dress it up a bit.
