Prusa XL Snap-on Mount for Pi Camera

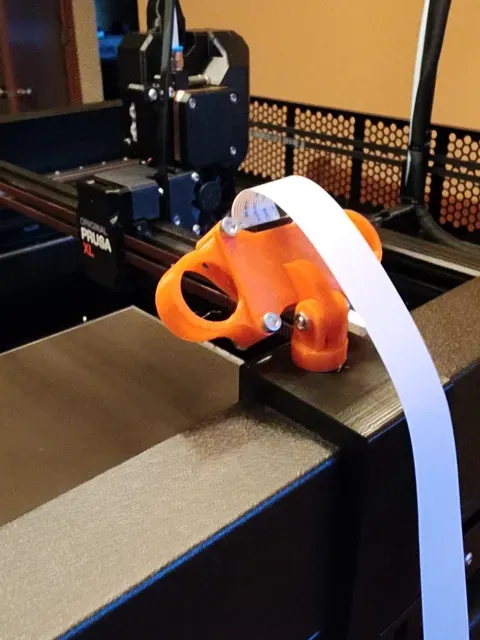

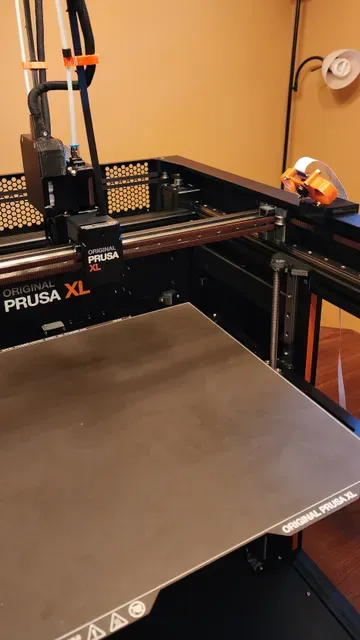

I made a mount that snaps onto the frame of the Prusa XL. It snaps into the 3030 extrusion and around the steel frame.

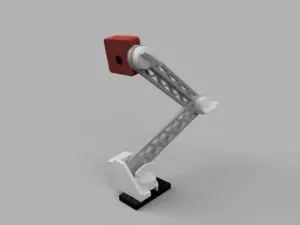

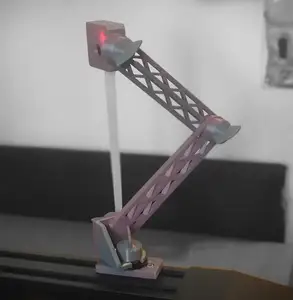

I modified the swivel to accept the screw head rather than the nut so it can be adjusted while still mounted. I also added a few pegs to the camera backplate to fit the wide-angle camera I had laying around. There are also a lot of remixes of the original model for different cameras with and without IR.

I used m3 screws to hold everything together.

- 1x M3x8 to attach the swivel to the mount. Be careful not to use too long of a screw here or you will scratch your frame. - 4x M3x18 to hold the camera case together - 5x M3 nuts This is the camera I used: https://amzn.to/43TnRFI

Mount printed in PETG and camera pieces printed in PLA
