Pimoroni Pibow Coupe 4 case SSD mount 2.5 inch drive for Raspberry Pi 4

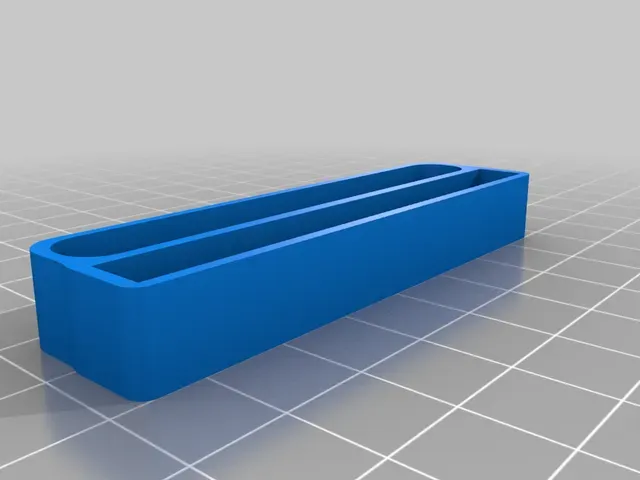

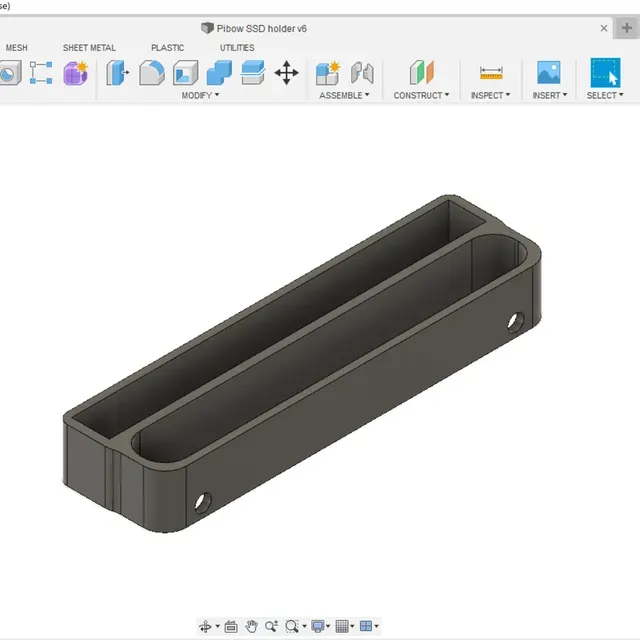

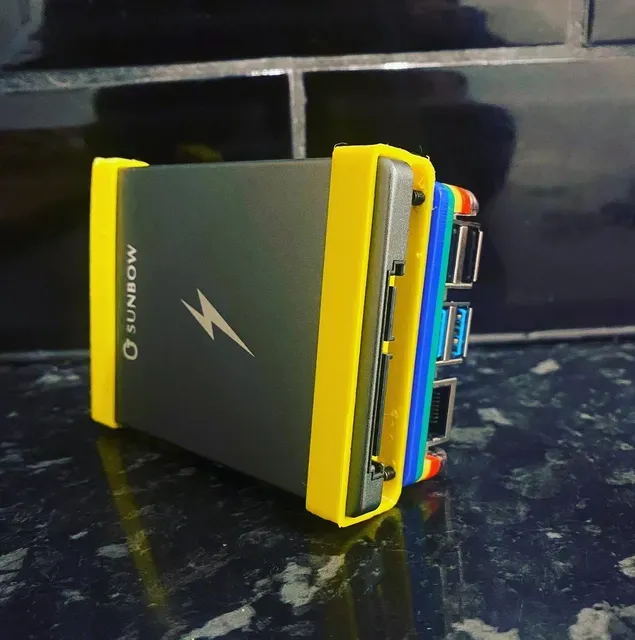

Here is a simple design to hold a 2.5'' SSD drive below a Raspberry Pi 4 Coupe Case.

In order for the Pi to have air flow, the SSD is held away from the base.

This was designed to be used with a Pi running Home Assistant, replacing the SD card with the SSD.

I replaced the plastic nuts and bolts with 30mm M3 bolts and screwed straight into the plastic, no nut needed.

I printed this in PETG but any material would suit. You may need to print with a brim as it's only a few walls think.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

Doesn't Matter

Supports: Doesn't Matter

Resolution:

0.2

Infill: N/A

Filament: eSun PETG Yellow

Notes:

A brim may be needed, as only a few walls thick and may lift. YMMV
