Dart Zone Outlaw Replacement Cylinder

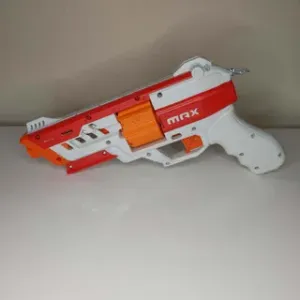

To build this - you will need one of each of these parts that are included (Choose one of the cylinders that is included) - along with a Bic Pencil spring (the ones that are hexagonal and look like this:) , and a toy screw or 4-40 x 3/8in (normal CaptainSlug screws). I have uploaded a cylinder that is pictured (swoopy), another that is clean and looks similar to the stock cylinders. There will be more stylized ones coming soon.

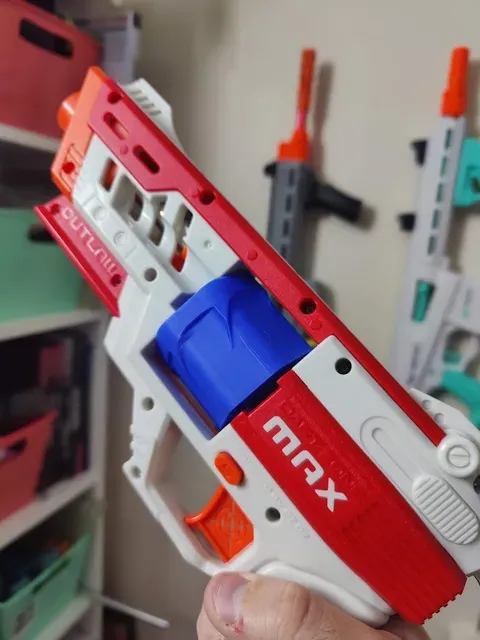

Place the spring into one of the holes into the larger opening in the back of the cylinder. Then push the lock into the front (it will seat well into the hex). Lastly, screw the rotation mech into the back while lining up the holes for the Bic spring.

This is mainly made for 4-40 screws, but the 2.6mm toy screws that Nerf uses will work.

I will be uploading new versions of this that use a larger spring from McMaster at some point.

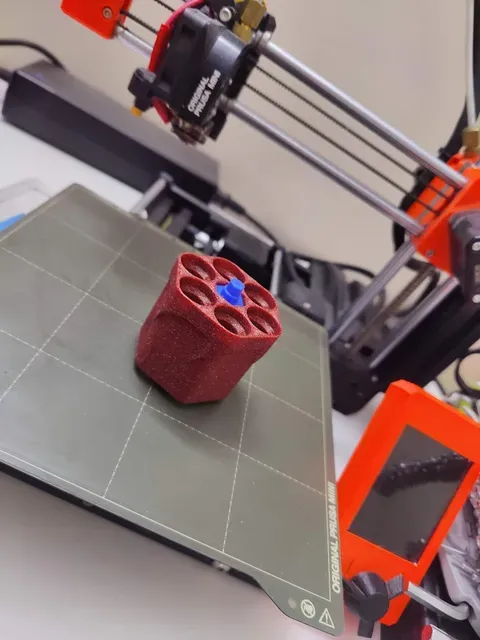

None of these parts should need supports: the cylinder prints with the front on the build plate, the rotation mech prints flat side down, and the lock prints standing up, but with a brim.

Update: 8/6/2023 - Added a tightening ring to the inside of the cylinders. This should prevent darts from falling out of the cylinders in play.

Update: 8/7/2023 - Added the following Cylinder Cosmetics

- Round - A solid cylinder shape - Python - A real steel inspired cylinder that looks like a colt python
