Magnetic Headphone Hook

This heavy-duty magnetic headphone hook can attach to a table, cabinet, or other surface, to hold your headphones securely when they are not in use.

Specs:

*Dimensions: 3.00"W x 2.100"D x 1.500"H (assembled, excluding magnets)

*Volume: 2.76 cubic inches (both pieces combined, excluding magnets)

*Weight: ~0.1 pounds (both pieces combined, excluding magnets)

Files:

*Magnetic base plate: PTW-00-1-PT-0199 (Hook, Headphones, Magnetic, Base).STL

*Headphone hook: PTW-00-1-PT-0200 (Hook, Headphones, Magnetic, Catch).STL

Needed to complete assembly:

- QTY 9-15: 10mm diameter x 2.6mm thick Neodymium Magnets - http://www.dx.com/p/10-x-3mm-ndfeb-neodymium-magnet-circular-cylinder-diy-puzzle-set-silver-50-pcs-229283#.VOqSt9jnQYI (Description says 3mm thick, but are actually 2.6mm)

- Epoxy: For gluing in magnets

- ABS Cement / Acetone: For assembly

NOTES:

- .STL names do not match .SLDPRT name because Da Vinci will not print file names over 56 characters.

- .STL files oriented for printing.

- No supports needed for printing.

- 2Dec2016: Posted small update to the files, to make them fit together a little easier.

Print instructions

Category: Audio Summary

This heavy-duty magnetic headphone hook can attach to a table, cabinet, or other surface, to hold your headphones securely when they are not in use.

Specs:

*Dimensions: 3.00"W x 2.100"D x 1.500"H (assembled, excluding magnets)

*Volume: 2.76 cubic inches (both pieces combined, excluding magnets)

*Weight: ~0.1 pounds (both pieces combined, excluding magnets)

Files:

*Magnetic base plate: PTW-00-1-PT-0199 (Hook, Headphones, Magnetic, Base).STL

*Headphone hook: PTW-00-1-PT-0200 (Hook, Headphones, Magnetic, Catch).STL

Needed to complete assembly:

- QTY 9-15: 10mm diameter x 2.6mm thick Neodymium Magnets - http://www.dx.com/p/10-x-3mm-ndfeb-neodymium-magnet-circular-cylinder-diy-puzzle-set-silver-50-pcs-229283#.VOqSt9jnQYI (Description says 3mm thick, but are actually 2.6mm)

- Epoxy: For gluing in magnets

- ABS Cement / Acetone: For assembly

NOTES:

- .STL names do not match .SLDPRT name because Da Vinci will not print file names over 56 characters.

- .STL files oriented for printing.

- No supports needed for printing.

- 2Dec2016: Posted small update to the files, to make them fit together a little easier.

Instructions

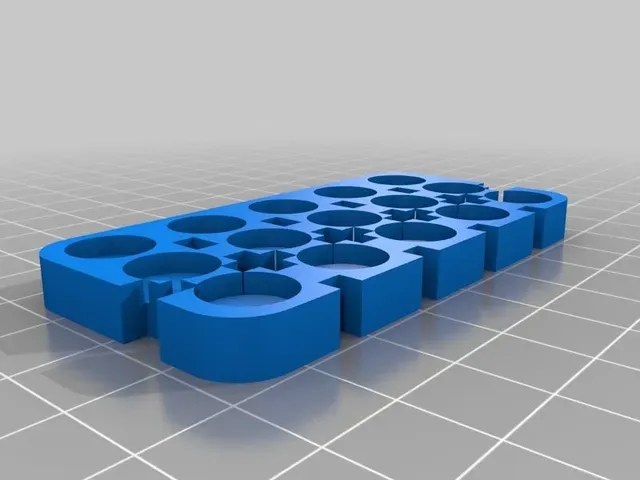

- Print the base plate. Trim any flash or wide layers.

- Place one small drip of epoxy in each hole to receive a magnet. I used 9 magnets, though the plate supports up to 15.

- Place a magnet in each hole with epoxy. Press on the plate and magnets with a flat surface (e.g. scrap wood) to seat and align all magnets evenly. Part is designed so magnets protrude slightly (0.1mm), for good contact.
