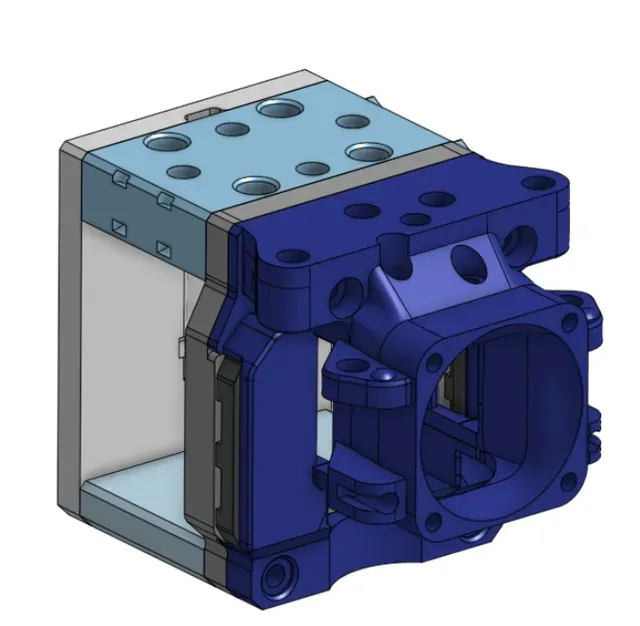

Evantis 5015(M) Tool head

Last Update: 9/23/2023

Update - Currently working on a V2 of the toolhead.

WIP - Still working on the front shroud design that's pictured.

Current Issues - Nothing report as of now.

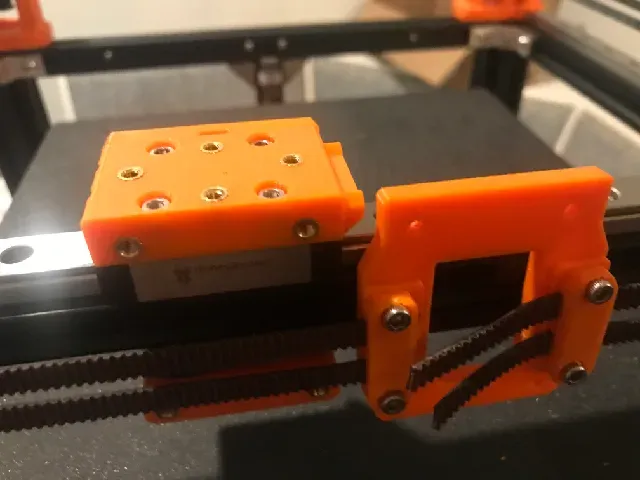

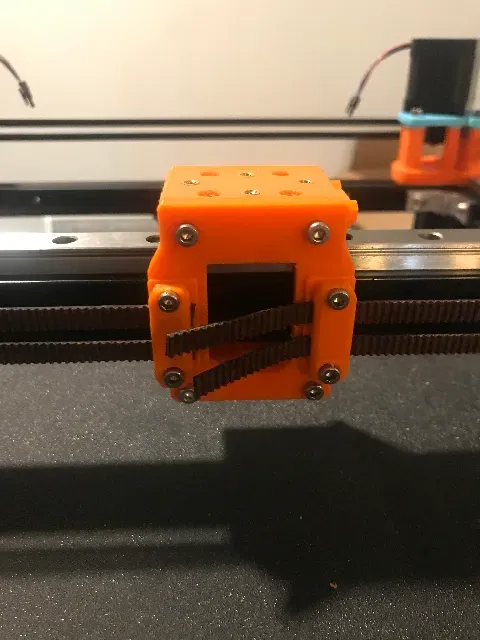

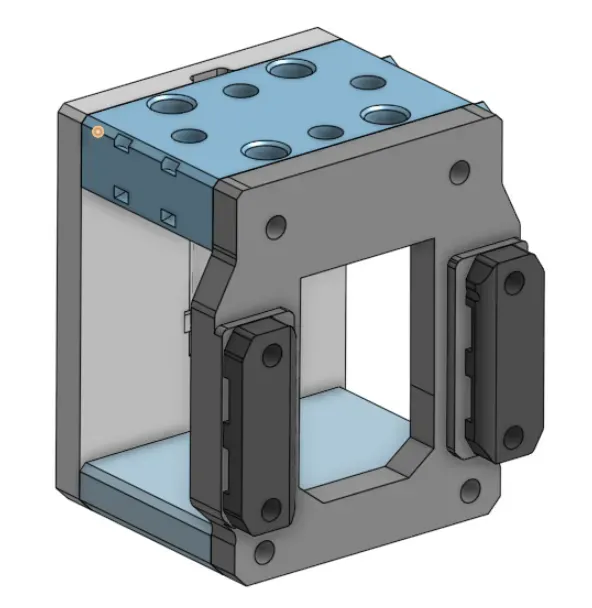

Recent Changes/Updates: Updated V2 ducts improve cooling if you are experiencing any cooling issues, please reach out so I can solve it. Added integrated microswitch x-endstop carriages. Fixed Copperhead Mount holes. Thank you!

Wait! Before proceeding do you want more do you need every mm in your forward y direction? If so, please proceed here:

Micro Mantis S Toolhead by Sir_Wash | Download free STL model | Printables.com

Will this tool head work on my machine?

This toolhead design is primary based off the mantis toolhead so any printer that can use the normal mantis toolhead should be able to use this one if that's not the case let me know and I can try to help make support possible. However, this was designed specifically for the Zero G Mercury 1.1.5.

Questions?

Please leave a comment or join the Zero G discord and head to the micro mantis page in the community section.

Toolhead Component Compatibility List:

Printer Compatibility

Mercury Zero G 1.1.5

Voron 2.4/Trident

Carriage Compatibility

MGN12(H/C)

MGN9(H/C) *9C not recommended but supported.

Hot End Compatibility

Rapido HF & UHF

Dragon

Dragonfly BMO

Revo Voron

Revo Micro

Revo Six/V6

Mosquito

Copperhead

Bambu

Dropeffect XG

Goliath AIR

Nova

Crazy Volcano

Extruder Compatibility

Sherpa Mini

Sherpa Micro

Orbiter V2.0

Orbiter V1.5

Vz-Hextrudort

LGX-Lite

LGX
