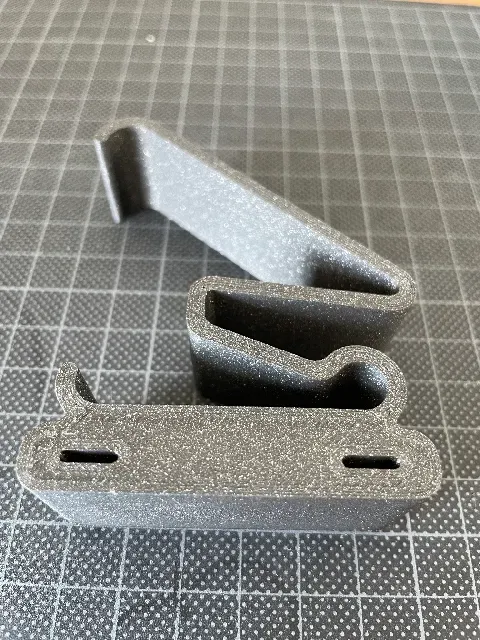

Thrustmaster T300 (RS) Phone Holder Mount

Summary

A phone holder for the Thrustmaster T300 (RS) wheel. Currently fitting my iPhone 12 very well, but similar phones might also work. Very nice in combination with the Simhub Dash to show some metrics during sim racing.

Printing instructions

- I've printed the mount in Galaxy Black PLA with the following settings: - Infill: 15% - Wall loops: 3 - Layer height: 0.20mm - Make sure to print the clips in PETG, as they need to be a little flexible. Installation

- Remove the top plate with a small screwdriver, just be carefull not to break it;

2. Install the clips inside the holes, by bending them slightly till they “click” in;

3. Slide the left side of the top mount on the left side of the clips. Then bend the right clips a bit to the right so the mount can snap in. It should now be a steady fit without a lot of movement;

Click your phone inside the holder and enjoy! ;)
