OpenSourceEV Left Side Phone Ball Mount V2 for Rivian R1T & R1S

OpenSourceEV Parts designs, produces, and retails 3D printed parts for Rivian EVs. We're Open Source because we post the STL files for every single product that we design so everyone can remix or 3D print them at home for little to no cost. We're committed to enhancing the Rivian Owner community and promoting 3D printing through our natively open approach.

If you are considering purchase a Rivian R1S or R1T, you can both get $500 worth of Rivian Gear, 6 months of free RAN charging, and support our mission of making Open Source enhancements for them by using our Rivian Referral Rewards code - ROBERT1265188 . You enter this code when putting your deposit down on your Rivian. Details are available here .

+++

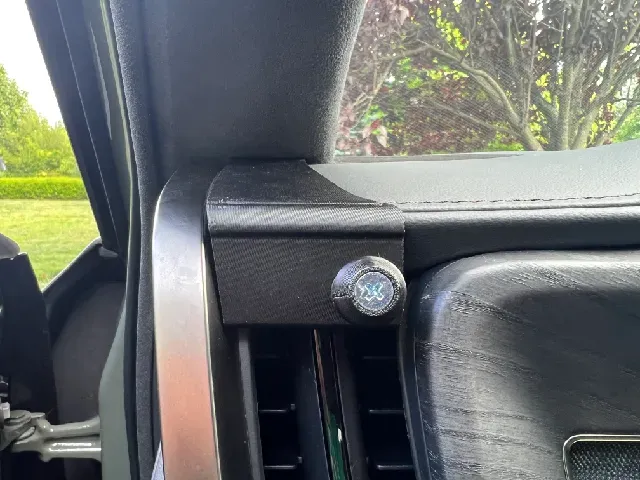

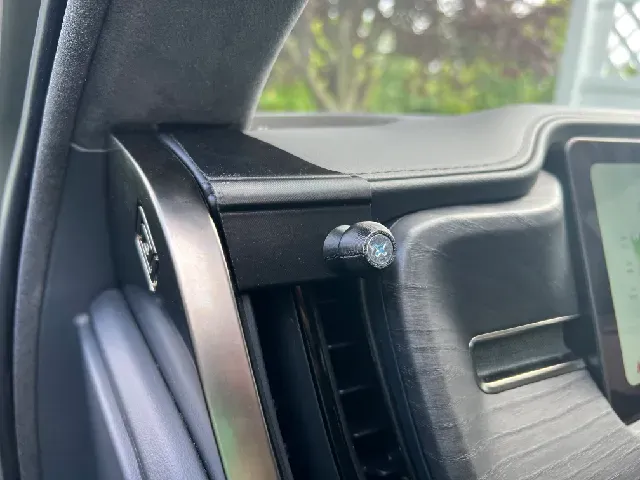

The OpenSourceEV Left Phone Mount V2 is the second generation of a new way to mount a phone holder in your Rivian R1S and R1T. It's designed to mount at the very top of the driver side air vent - just outside of the where it would be obscured by the steering wheel.

The Left Phone Mount V2 improves on the pervious version in the following ways:

- Significant structural updates to lie flatter and secure in place better. - The ball mount is now modular, allowing for a quick swap between sizes without having to purchase a brand new mount and without having to deinstall the base. - The ball is now secured in place by an M5 x 35MM steel bolt and nut which better supports larger, heavier phones. The Left Phone Mount V2 is compatible with all three ball sizes - 17MM, 20MM and 1 Inch. (models attached) The 17MM works with most phone mounts, 20MM works with the co-branded Offroam x Peak Designs products (link below), and a 1" size designed for RAM branded items only.

Please note that this mount alone will not hold a phone in your Rivian - it is designed to be an attachment for a 3rd party phone holder. Phone holders pictured are not included. We suggest defaulting to the 17MM mount unless you know exactly what you want.

We print and sell this in ASA, but PETG will work well too. We strongly suggest that you use a high-quality PETG if that is your material of choice. (PLA is a no-go) You'll also need to watch out when turning the ball as the two nubs on each will deform much easier in PETG than ABS or ASA.

This design requires an M5 nut and M5x35 flathead bolt. (they are available individually at OpenSourceEV.com should you want to purchase)

- This product is available for purchase here: https://opensourceev.com/products/left-phone-ball-mount-v2 - Spare parts for this product are available here: https://opensourceev.com/collections/replacement-parts - Discuss this product at: https://www.rivianforums.com/forum/threads/new-opensource-ev-left-phone-mount-v2.17449
