AC Infinity AIRPLATE T3 AI-APT3 Controller Mount for Original Prusa Enclosure

AC Infinity's AIRPLATE T3 is the perfect ventilation system for maintaining ideal print conditions in your Original Prusa Enclosure. It's easy to use, smart, quiet and beautiful.

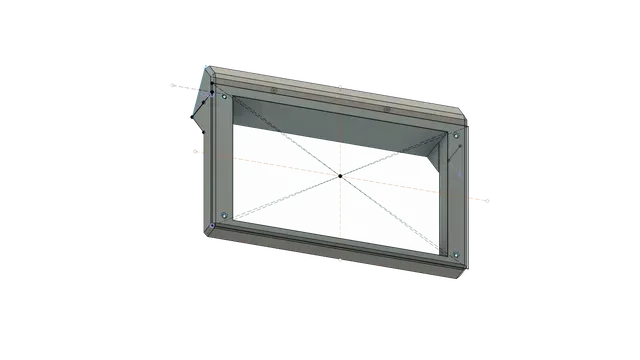

This mount lets you position the AC Infinity Airplate T3 AI-APT3 LCD display controller at a 45 degree angle at the bottom right corner of the front of your Original Prusa Enclosure. It attaches with 2 M3 x 10-16 MM screws through pre-punched holes in the enclosure frame, right next to your externalized Prusa control panel (if you mounted yours outside).

HINT: If you're smarter than me, maybe you figured out that it's a lot more convenient to bring the USB, sensor, and power cables UP THROUGH the mouting hole and plug them into the AC Infinity controller, THEN put the controller into the mount. Sure beats trying to connect the cables from underneath.

UPDATE: The first set of files that I updated had the 4 screw holes for the controller positioned according to specs from AC Infinity's website, but they turned out to be inaccurate.* The files now avialable for you to download have holes that are positioned based on my actual AC Infinity controller and are confirmed to work.

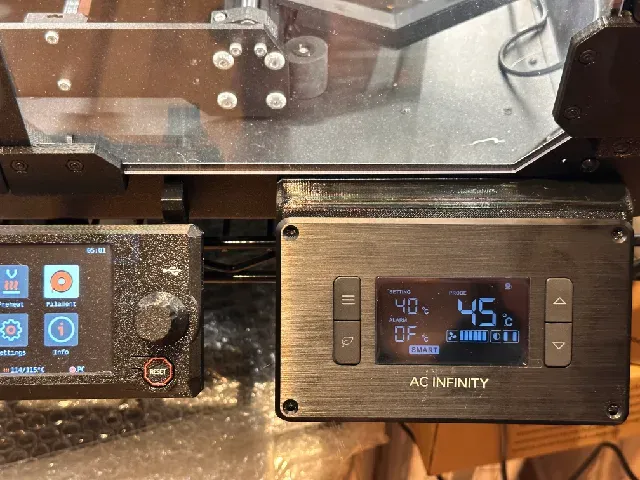

*You can actually see this in the photo I posted of my first make. The AC Infinity controller fits so well in the mount that I just decided to leave it there and not worry about the screws.

UPDATE 2: If you have your Prusa xLCD mounted on the outside of of your Prusa Enclosure, mounting the AC Infinity controller on the right side of the Prusa Enclosure will block the USB port on the Prusa xLCD. You will need either A) a 90 degree USB adapter, or B) modify this design for placement on the left side of the Prusa Enclosure.
