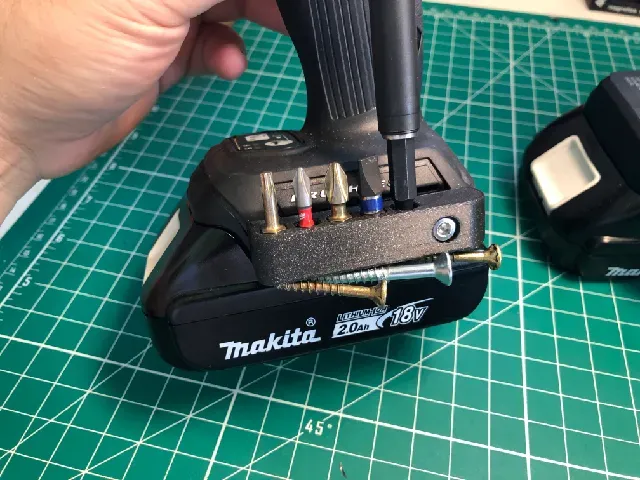

Makita Drill Bit Holder (Magnetic)

1/4" hex shank bit holder for Makita cordless drill. Magnetically holds 5 bits and can hold extra screws/bits underneath.

Print instructions

Printed Materials: makita bit holder.stl

Non-Printed Materials: 1 - M4 x 14mm screw ( https://www.amazon.com/gp/product/B071KBVZVV/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 ) 5 - 6 x 3mm magnet ( https://www.amazon.com/gp/product/B07MV2MKD5/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1 )

Instructions:

- No supports needed - Default bit holder for left side of drill/driver. Mirror in slicer before printing if you want it on the other side. - Insert 5 6 x 3mm magnets in the holder alternating north and south so the magnets don't 'fight' each other. - Attach to a drill/driver with a M4 x 14mm bolt. Threadlock may help. Update 2020-05-02: Renamed makita-bit-holder.stl to makita-bit-holder-thin.stl. Print this at 0.2mm layer height to get 1 solid layer on the bottom. Updated makita-bit-holder.stl and makita-bit-holder.step with thicker bottom layer. This should print with 2 bottom layers to encapsulate magnets.
