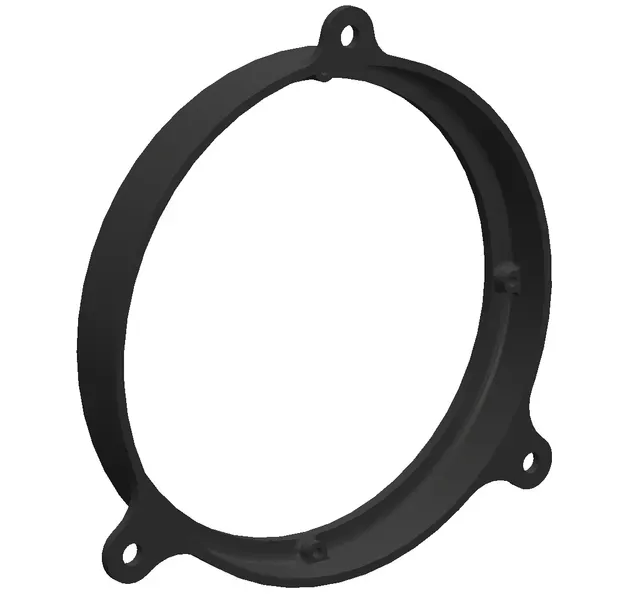

Yaris MK1 (facelift) front door speaker rings/adapters

Front door speaker adapters for Toyota Yaris Facelift MK1 5 door model (2002 - 2005). There is a complete lack of this specific model on the internet, so I thought I'd create it and share.

Modeled by measuring the factory speakers and adding 22 mm offset towards the door trim (quite safe distance from door trim and quite similar to factory speaker).

With these adapters fitted, the max. speaker mounting depth can be 50 mm. For installing, use 4.8 mm / 5 mm rivets with a wide head.

Key dimensions:

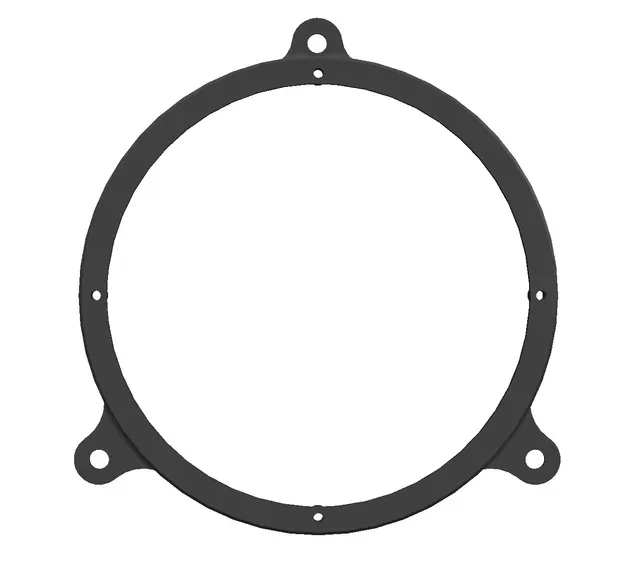

- Speaker size: 165 mm / 6.5" - Speaker cut-out: 147,50 mm - Outer diameter: 165,50 mm - Height: 22 mm FYI1! The rings are symmetrical in the vertical axis, but the three holes are not concentric with the speaker cut-out, so they only fit the door frame in one position. One model fits either (left & right) door.

FYI2! ALWAYS USE SOFT FOAM-TAPE BETWEEN EVERY MATING POINT (adapter <-> door frame | speaker <-> adapter) TO AVOID RATTLING AND UNPLEASANT NOISES!

No recommended print settings, have fun!
