Hapstone R2 / R1 / V8 / M3 Magnetic Sharpening Platform Attachment

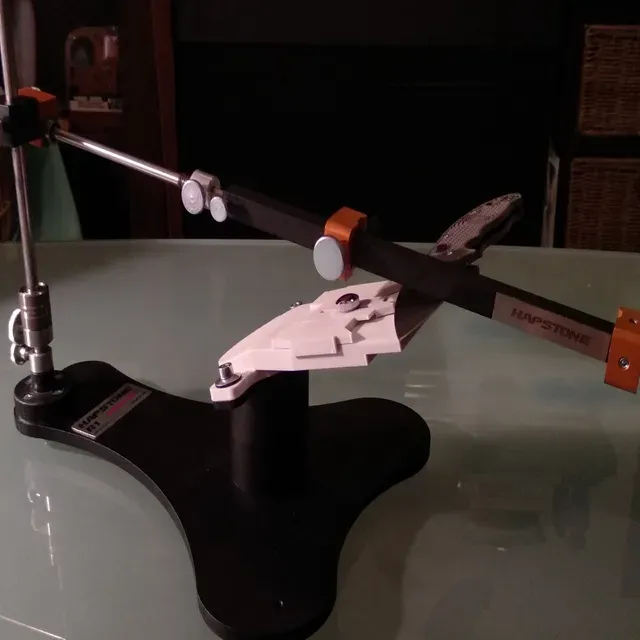

This is a Table with magnetic base for the Hapstone R1 / R2 / V8 / M3 Sharpening system.

Simply remove the clamp from its mount and screw this table into its place

Most knife sharpening clamps do not work well on a full flat grind knife (like Spyderco knives etc). This platform attachment makes it easier to sharpen full flat ground knives and gives more flexibility in general sharpening.

Assembly:

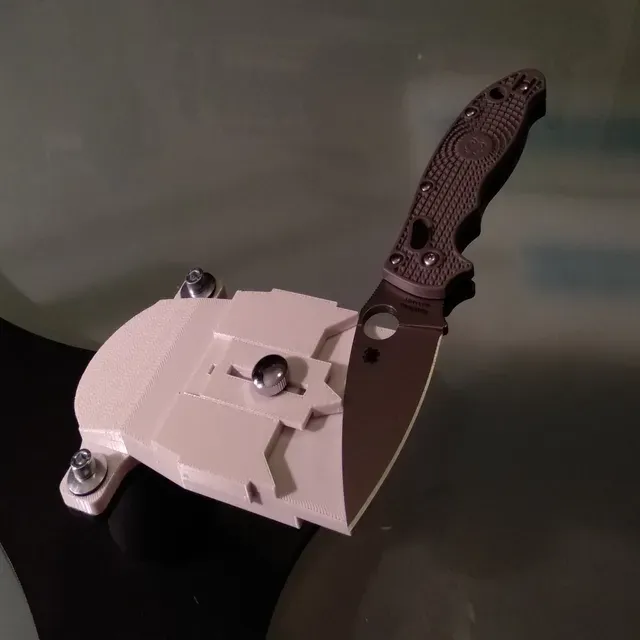

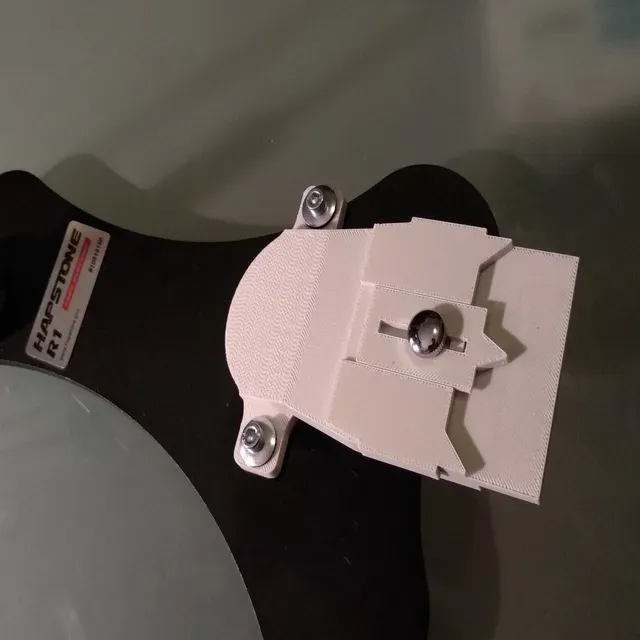

The 2 guides slide together to make a 3-point guide for your knife. This gives you the exact same position if you flip your blade over.

Use a small M4 knurled hand nut for assembly, or even simply just a small M4 screw and nut if preferred. I recommend a M4 brass threaded melt-in insert.

The Magnet slot in the bottom of the table is for a Neodymium magnet size 50mm x 15mm x 5mm.

If you find my designs useful, please go ahead and click on "Tip Designer" to the right of the photos at the top of this page. Proceeds will be used to purchase printing filament so I can keep designing and testing cool new things that you might find useful.

Thank you!

UPDATE:

28 August 2020 - This also works for the Hapstone R2, M3 and Hapstone V8

I also have a scissors adapter combined with a knife guide magnetic base for the R1/R2/V8/M3. Here is the link:

https://www.thingiverse.com/thing:4056776

NOTE:

Some of my other useful designs:

https://www.thingiverse.com/leadingedge/designs

Print Settings

Resolution:

0.2

Infill: 100%

Filament: PLA PLA Your Choice

Notes:
