Ruixin Pro Flat ground blade platform attachment for Clamp

This is a Platform with magnetic base for the Ruixin Pro Sharpener system (Upgraded version with Clamp) that can be bought on AliExpress or Ebay. See link - https://www.aliexpress.com/item/32956547212.html

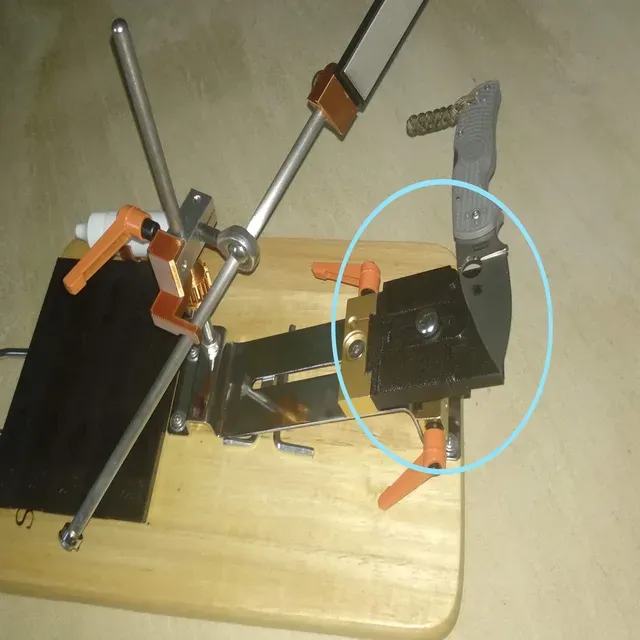

Simply remove the clamp from its attachment then slip in & clamp the platform in its place

Most knife sharpening clamps do not work well on a full flat grind knife (like Spyderco knives). This platform attachment makes it easier to sharpen full flat ground knives.

Assembly:

Print Up-side-down (as in the file). This gives a nice rough texture for the top of the platform on which your knife will lie.

The 2 guides slide together to make a 3-point guide for your knife. This gives you the exact same position if you flip your blade over.

Use a small M4 knurled hand nut and threaded brass melt-in insert for assembly, or even simply just a small M4 screw and nut if preferred. Have a look at my photos for reference. I use a M4 threaded brass melt-in inserts.

The Magnet slot in the bottom of the table is for a Neodymium magnet size 50mm x 15mm x 5mm, and the other design is for 3 12mmx3mm round magnets.

If you find my designs useful, please go ahead and click on "Tip Designer" to the right of the photos at the top of this page. Proceeds will be used to purchase printing filament so I can keep designing and testing cool new things that you might find useful.

Thank you!

UPDATE:

V4 Files added with guide points modified to triangular shape.

NOTE:

Some of my other useful designs:

https://www.thingiverse.com/leadingedge/designs

Print Settings

Resolution:

0.2

Infill: 100%

Filament: PLA PLA Your Choice
