RYOBI 18V to 40V Converter and 13.8V Powerstation

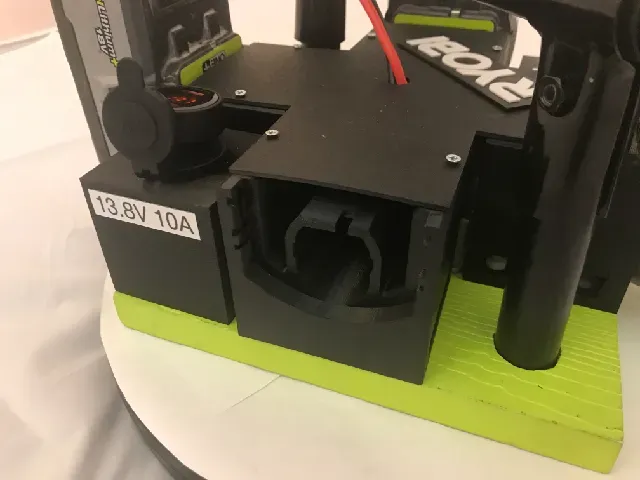

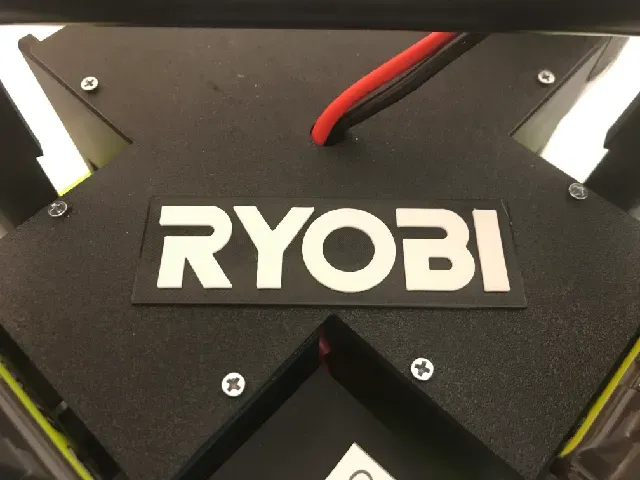

These RYOBI 18V battery mounts can be bolted down. You can make different configurations to suit your need. I've also provided a 12V socket and switch holder models. For an example, I put together a 2S2P system that has a regulated 13.8V socket and a 40V plug which can be connected to my Ryobi 40V adapter ( https://www.prusaprinters.org/prints/42031-ryobi-18v-to-40v-battery-adapter )

Components used:

- 30A Switch ( https://amzn.to/2Zg9dcE ) - 12V Socket ( https://amzn.to/3qiymza ) - DC-DC 8-40V to 13.8V 10A up/down converter ( https://amzn.to/3b7Vhqq ) - DC-DC 30-60V step down to 13.8V 15A ( https://amzn.to/2NfazSI ) - Ryobi 18V 4Ah Battery ( https://amzn.to/33mjNS5 ) - Wire Crimper ( https://amzn.to/3igwTog ) - Wire Stripper ( https://amzn.to/33lQak4 ) - 10AWG Stranded Silicon Wire ( https://amzn.to/36q6BgU ) - 18V ryobi contacts ( https://www.partswarehouse.com/Ryobi-Contact-Plate-Holder-Assembly-RY-300001044-p/hm-300001044.htm ) - Ryobi RYi300BG ( https://amzn.to/2Gxiwyw ) - Ace Male Disconnect 12-10AWG ( https://www.ebay.com/p/1900956207 ) As an Amazon Associate I earn from qualifying purchases.
