10" Server rack 1U panel generic trays

Description

Trays for 10" server rack, different versions.

N Name Description

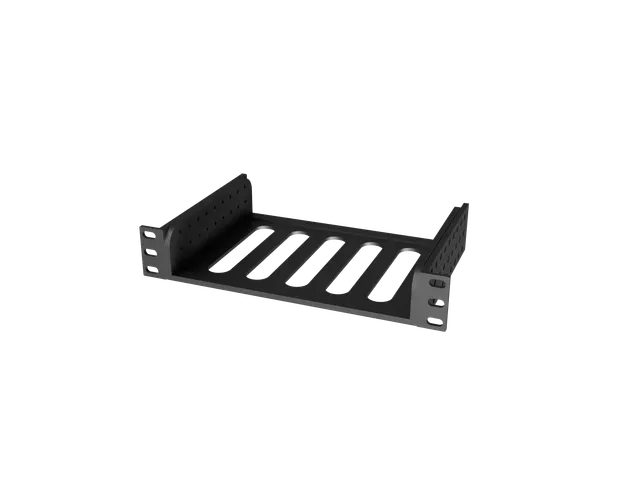

01 202209-10inch-server-tray-v1.stl one print part tray

02 202209-10inch-server-tray-v2.stl Tray with separated brackets

03 202209-10inch-server-tray-v3.stl Tray brackets with guideline for plate

For v2 and v3 of the trays you may use split feature in PrusaSlicer in order to separate parts within the stl. Version 2 use bolts and nuts in order to assembly. Version 3 designed with guideline cut of 3.2mm height, provided for custom plate such as mdf, plexiglass, you name it.

You may read more details about the server at DIY Home server rack Notes about services running:

- Raspberry Pi Home server - Raspberry Pi NAS server with OpenMediaVault and Plex - Automated home media server Buy me a coffee?
