Anycubic i3 Mega S Spool Holder

I don't like the stock spool holder that comes with the Anycubic i3 Mega S as this one has to much friction. Looking on thingiverse I came across this: design from Novaklast which i like but i wanted some minor changes to it as when you mount this one, the spool holder will hang over to the right a little bit which might result in falling off during long printing sessions.

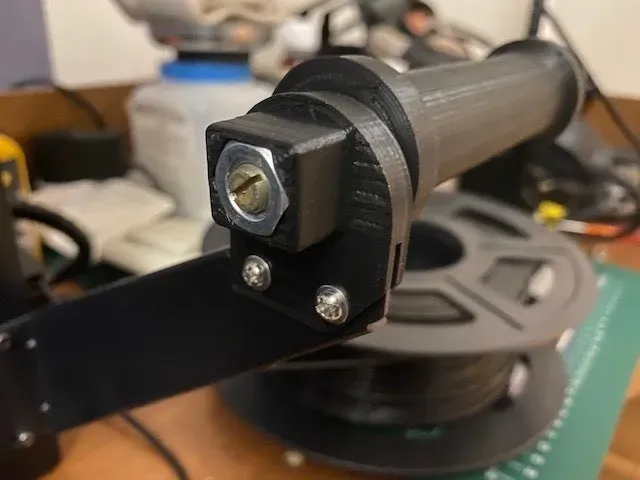

So i decided to create my own inspired on this design where the mounting bracket has a slight angle to the left so when a spool is mounted it levels out horizontally. I also redesigned the the spool cylinder so the bearings cannot be pushed right through it which makes mounting a bit easier and sturdier.

Edit: I added a v2 version of the filement spool holder mount (filament_spool_holder_mount_5pct_angle_v2) which is a bit sturdier.

Print instructions

Category: 3D Printer Parts Summary

I don't like the stock spool holder that comes with the Anycubic i3 Mega S as this one has to much friction. Looking on thingiverse I came across this: design from Novaklast which i like but i wanted some minor changes to it as when you mount this one, the spool holder will hang over to the right a little bit which might result in falling off during long printing sessions.

So i decided to create my own inspired on this design where the mounting bracket has a slight angle to the left so when a spool is mounted it levels out horizontally. I also redesigned the the spool cylinder so the bearings cannot be pushed right through it which makes mounting a bit easier and sturdier.

Print Settings

Printer Brand:

Anycubic

Printer:

All-metal Mega

</div> Rafts:

No

Supports:

Yes

</div> Resolution:

0.2

Infill:

50%

</div> Filament: Not important PLA Black

Notes:

Printing notes: The mounting bracket needs support and should be printed flat on its back.

The cylinder does not need any support and should be printed standing up.

You will need: 2x 608ZZ 8x22x7 bearings 1x Steel threaded M8 rod of at least 140 mm long 2x M8 nuts (1 extra if you want to secure the last nut on the rod or use LocTite 243 to prevent the nut from loosening and falling off) 2x M3x10 bolts 2x M3 nuts
