Revo Nozzle Skirts for Voron 2.4

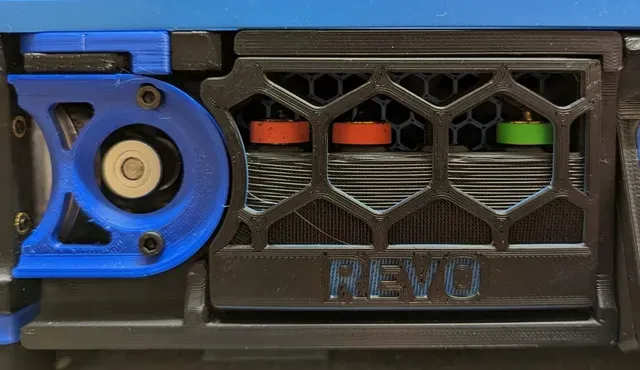

Remixed version of the ‘300mm’ nozzle holder part from MapleLeafMakers skirt-mounted nozzle holder. This will fit 4 nozzles in the front left skirt on the Voron 2.4 300mm printer.

Bill Of Materials

- 2x 6mm x 3mm Round Magnet - 5x M3 Heat-set insert - 2x M3x8 SHCS Instructions

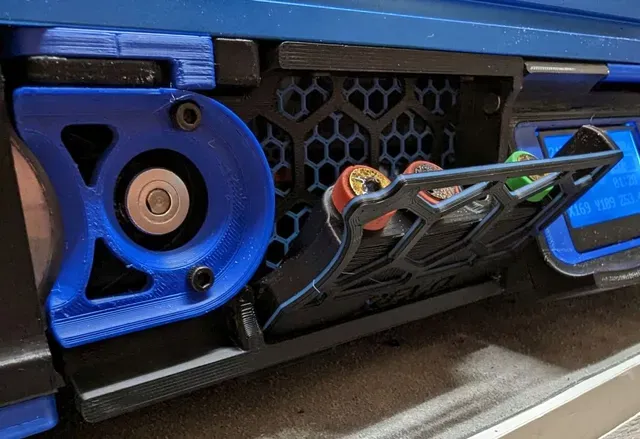

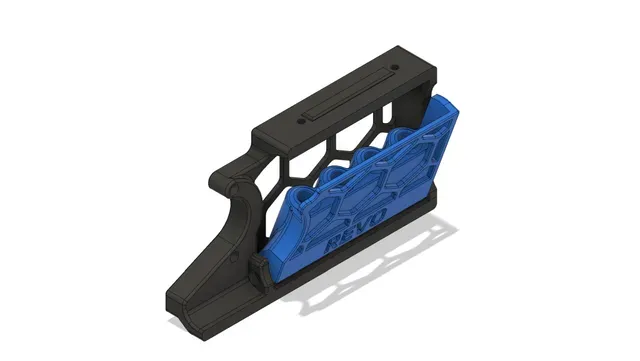

- Print skirt and nozzle holder parts (the skirt piece will be placed in the left front position of the printer). - Install the 2 heat-set inserts into the ends of nozzle-holder part. - Install 1 magnet in the skirt, and 1 in the nozzle-holder such that they attract each other when the door is installed. - Insert the nozzle holder into the skirt and fasten with 2 M3x8 BHCS. - Remove the stock skirt piece from your v2.4 and install the new one in its place. (Note, you'll need to use an angled or ball-end hex driver to install the skirt bolt, as the installed nozzle tray makes it hard to get to).
