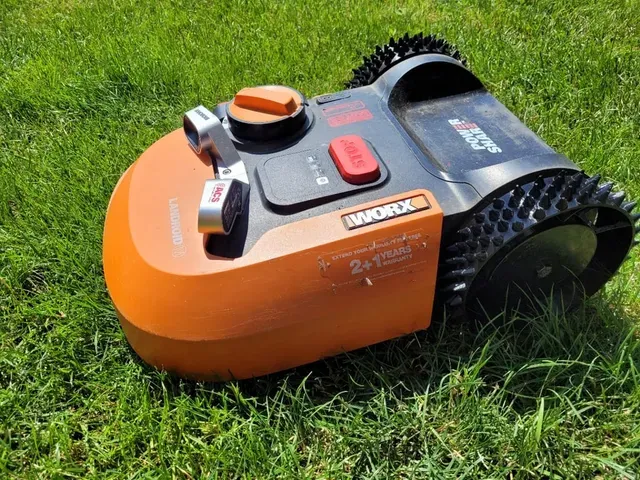

Landroid Wheels for M500 (WR141E and more)

I got a request from Neistsch to modifying my existing thing to fit the Worx Landgroid M500 series, so over a week or so of emailing measurements, images, test parts etc. we finally got the wheel fitted and adjusted to work.

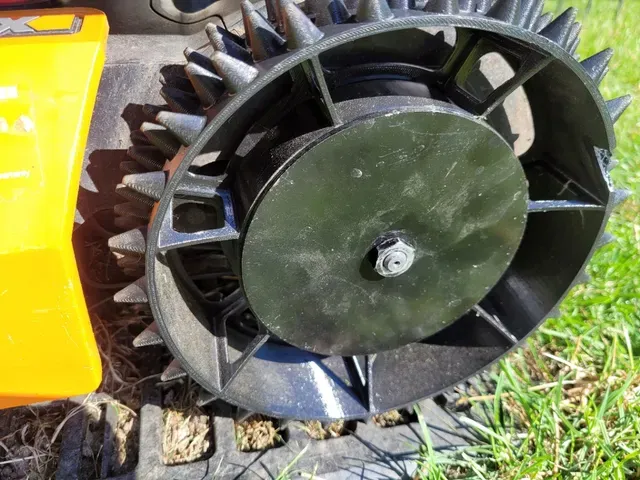

The images comes from Neistsch, and the design have been adjusted a little after his wheels where printed, mainly to get the side plate to sit better.

I have added the needed stl to print the wheel, and also a test hub that you can print to verify that your wheel will fit on the hub of the mower. To make this easier to modify, I also added a step file for the design.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: No

Resolution:

0,15 mm

Infill: 15%

Filament: unknown PLA Black

Notes:

To add extra strength, increase the perimeters.
