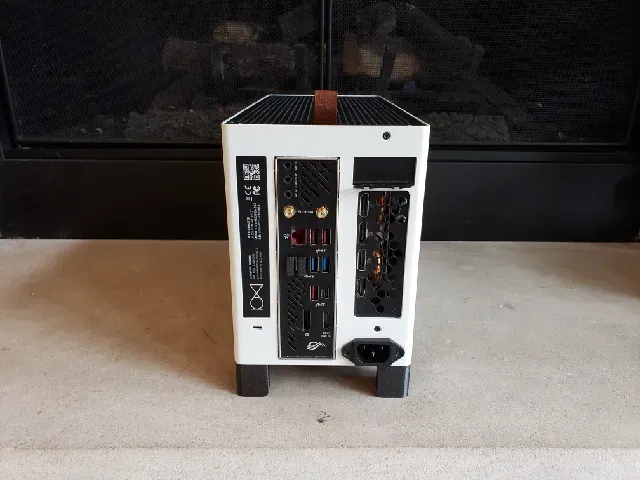

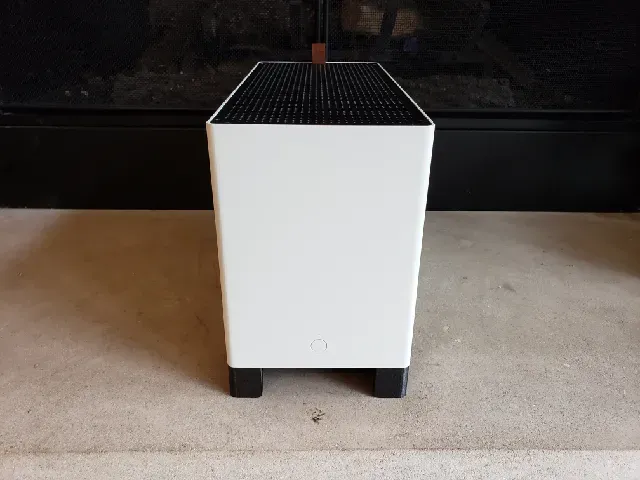

Louqe Ghost S1 Case Feet with I/O

This is a set of feet for the Louqe Ghost S1 PC case that add front I/O using the motherboard's USB3 and USB2 headers. These are modeled for specific hardware, but it should be fairly simple to modify these to your needs with the included files.

V2 UPDATE: I've touched up the main models to make them easier to print with fewer supports. I simply printed the USB2 and USB3 feet with snug supports for the ports and bottom lip. Tested and working great on my Ghost S1. Worth noting that my USB3 hardware ports have failed and I opted to just use another USB2 set on that side instead.

Hardware: USB3 Hardware Link: https://a.co/d/3J3o5mb (NOTE: This part failed on me) USB2 Hardware Link: https://a.co/d/361nRhW

Printing: I used my Prusa MK4 with a .4mm nozzle, .10mm IS, snug supports, and PLA filament.

PC specs: Case: Louqe Ghost S1 CPU: Ryzen 7 5800X3D CPU Cooler: Noctua NH-L12 Ghost S1 Edition (120mm Fan Swap) GPU: MSI 4070S Ventus 3X OC RAM: Corsair Vengeance LPX 64GB (2 X 32GB) DDR4 3600 Motherboard: ASUS Strix X570-I PSU: Corsair SF750 SSD: 2TB Sabrent Rocket M.2 NVMe & 4TB Crucial M.2 NVMe Case Fan: Noctua NF-A12x15 PWM

Feel free to reach out with any questions about the models or PC!
