EVA MOD FOR ORBITER2 RAPIDO BEACON EBB42 TOOLBOARD AND 4028 FAN

***Update Jan 23, 2024*** Added horns to mount Beacon Rev H

***Update 09/26/23*** Revised bottom horns cleaned up the model slightly

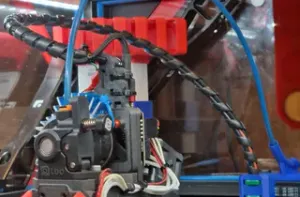

This is my mod of the EVA3 mount for orbiter2 and rapido, to add support for a Beacon and ebb42 toolboard.

You will need eight 3mm heat set inserts for 5.05 diameter holes 3.8mm deep.

You will need one m3x20 and two m3x8's for the bracket, four m3x8's (or 6's) for the toolboard, two m3x35's for the orbiter, and one m3x35 for the fan through to the horns. one m3 locknut. Use the mounting screws that come with the beacon.

Be careful when placing the heat sets into the toolboard print where the ebb42 mounts, the walls are thin and easily deformed with too much pressure. Be sure to not press the insert with more than the weight of the iron and square up the thin walls with a flat tool before it cools.

Specify X offset of zero, and Y offset of 16.5mm for the beacon.
